    Product Data Sheet
1155 STAT Series Caster Series (All Plastic)
　　Resolute (blue gray) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　　　　 KS-11550500451033
　　　　　 　　　
Rigid Casters, high-grade Top Plate—75x45 angled hole Top Plate Blue-gray legs made of polyamide reinforcement, Mounting Type - Top Plate Rust-proof, Corrosion resistant, Attractive appearance, Economical, and Smooth rotation High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Dark gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

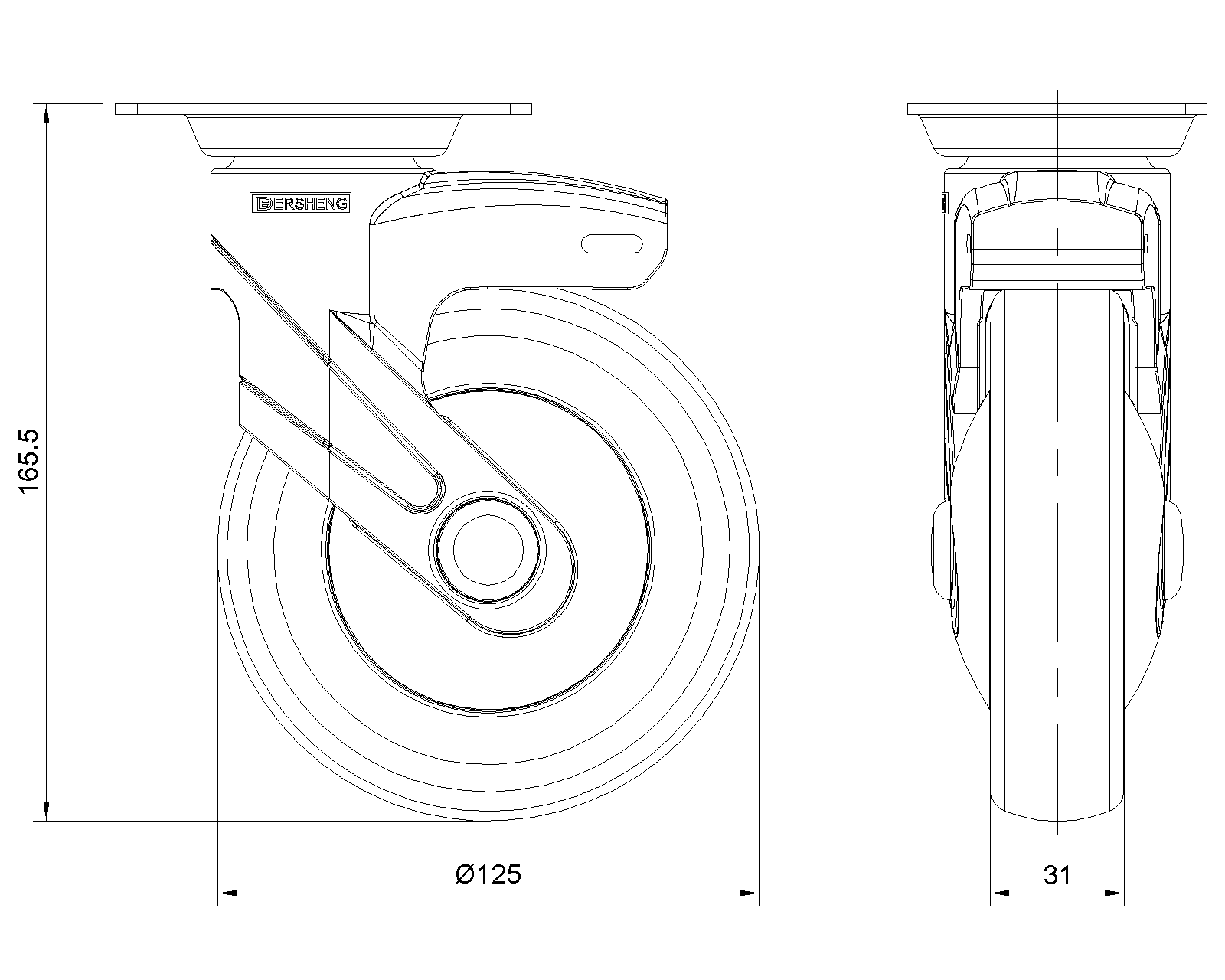

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 031mm　
　　Wheel Bearing Wheels With Ball Bearings

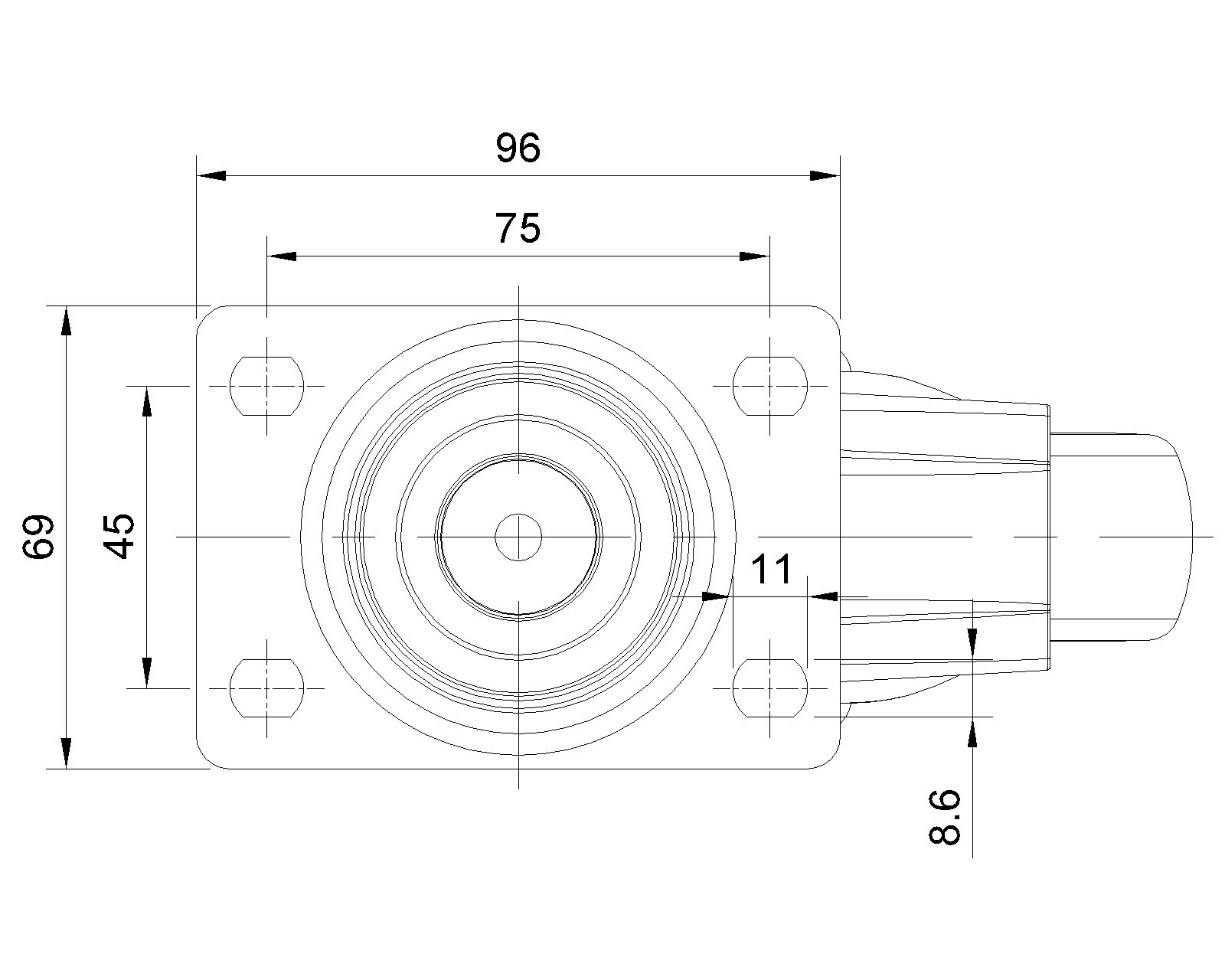

　　Plate Size 96 x 69mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 11 x 8.6mm　
　　Overall Height 165.5mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.82kgs　
　　Standard ISO22883
　　
　　
