    Product Data Sheet
1155 STAT Series Caster Series (All Plastic)
　　Resolute (blue gray) Wheel Diameter x Wheel Width 75 x 27mm
　　EAN
　　　　　 KS-11550300456133
　　　　　 　　　

Double-locking Caster system, Threaded Stem M12x17
Blue-gray legs made of polyamide reinforcement, Threaded Stem installation
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and allows for smooth rotation
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

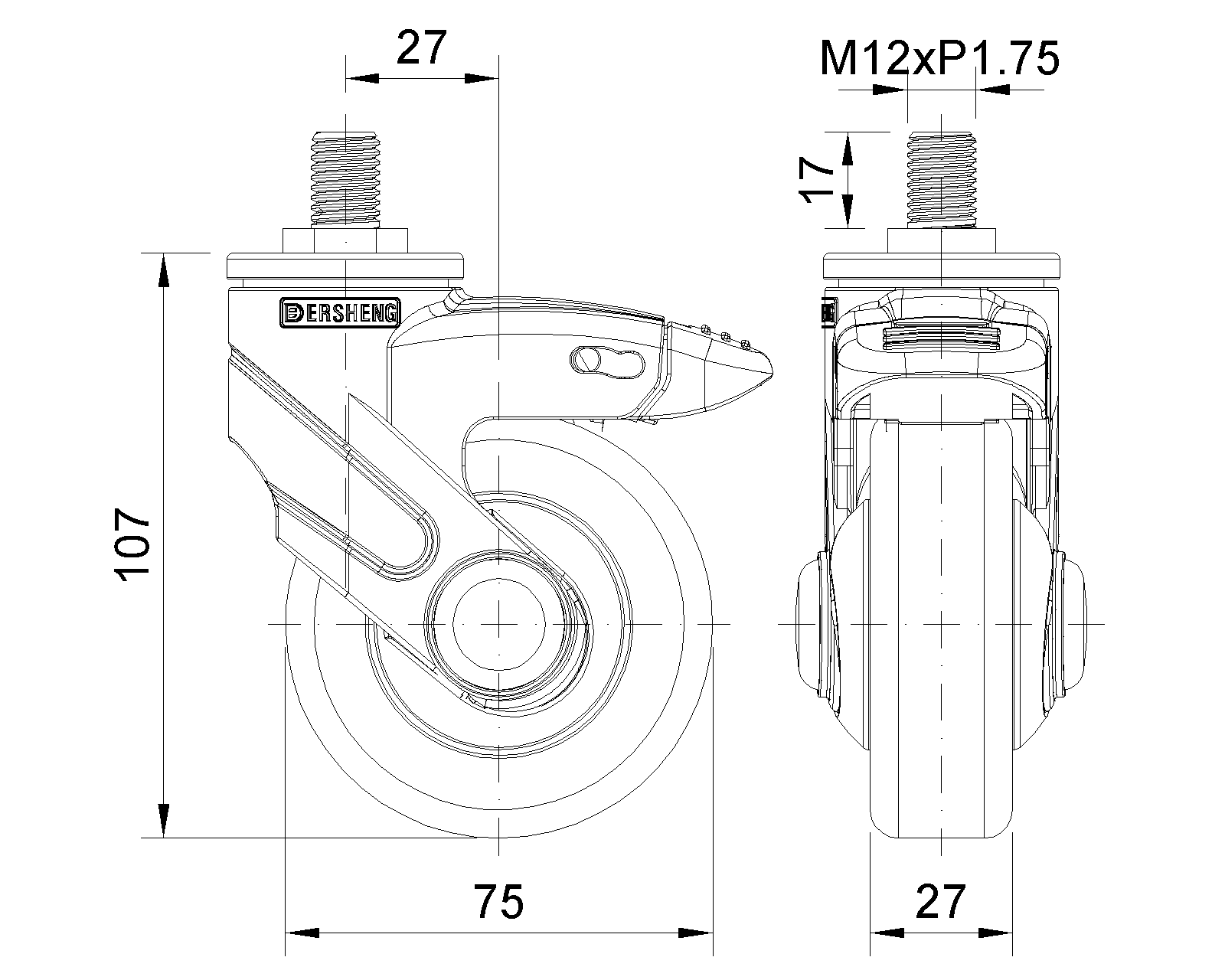

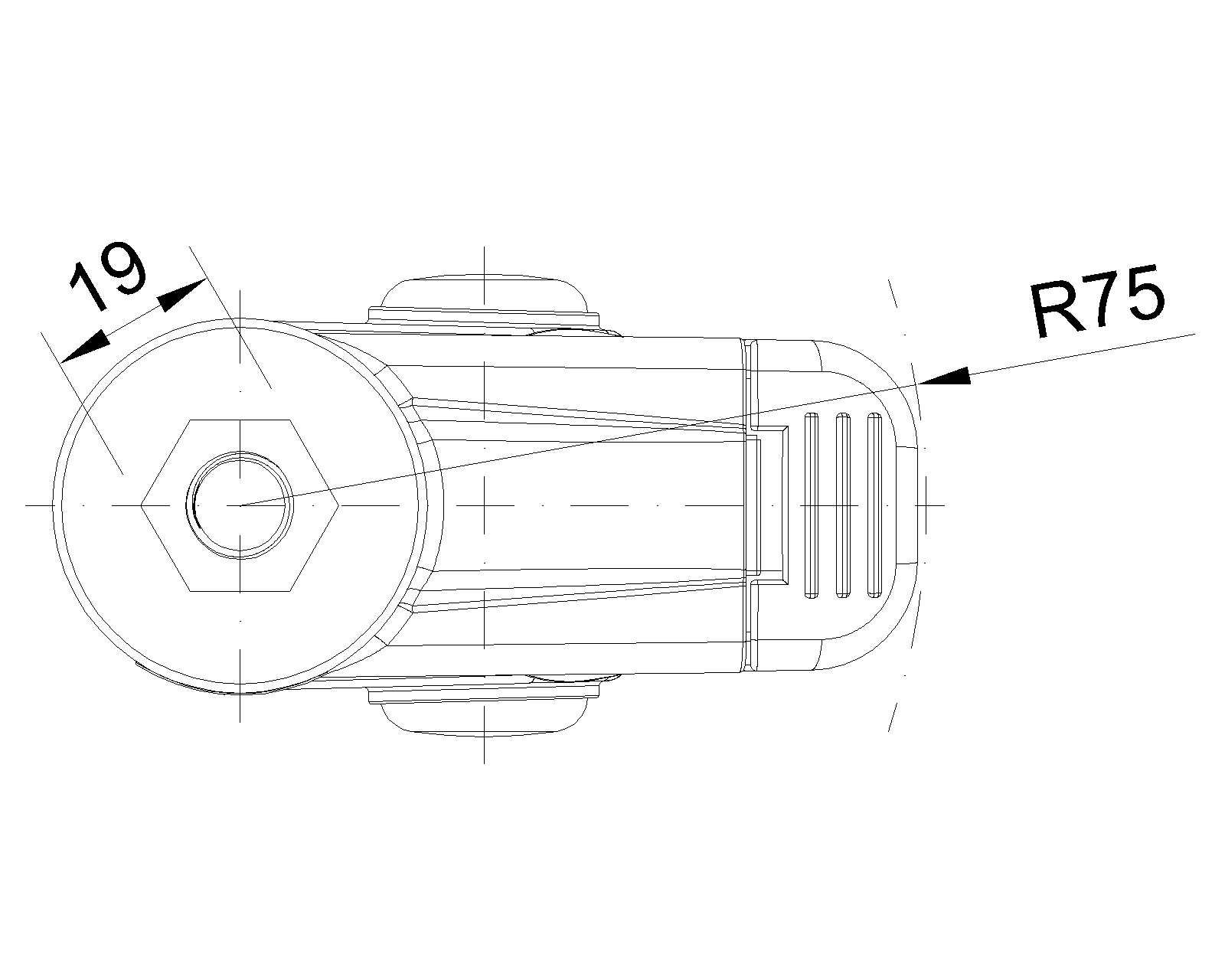

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 27mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M12
　　Threaded Length 17mm
　　Offset 27mm　
　　Swivel Interference 150mm　
　　Overall Height 107mm　
　　Swivel Radius 75mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 75kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 112.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.27kgs　
　　Standard ISO22883
　　
　　
