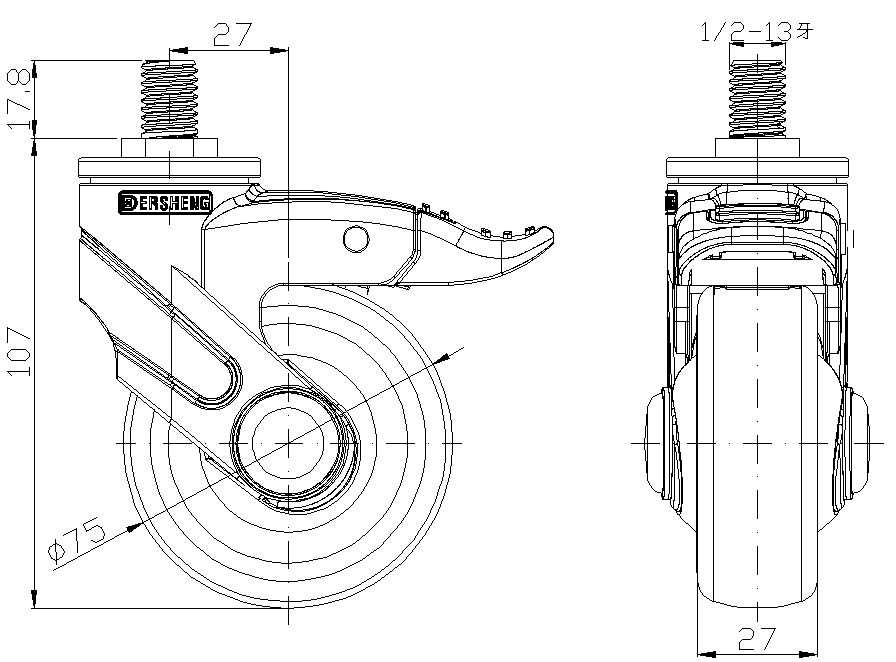

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
27mm
Wheel Bearing
Wheels With Ball Bearings
Threaded Stem
1/2-13
Threaded Length
17.8mm
Offset
27mm
Swivel Interference
176mm
Overall Height
107mm
Swivel Radius
88mm
Hardness Of Tread
72±5° Shore A
Load Capacity (Dynamic)
75kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
112.5kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster With Total Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.39kgs
Standard
ISO22881
