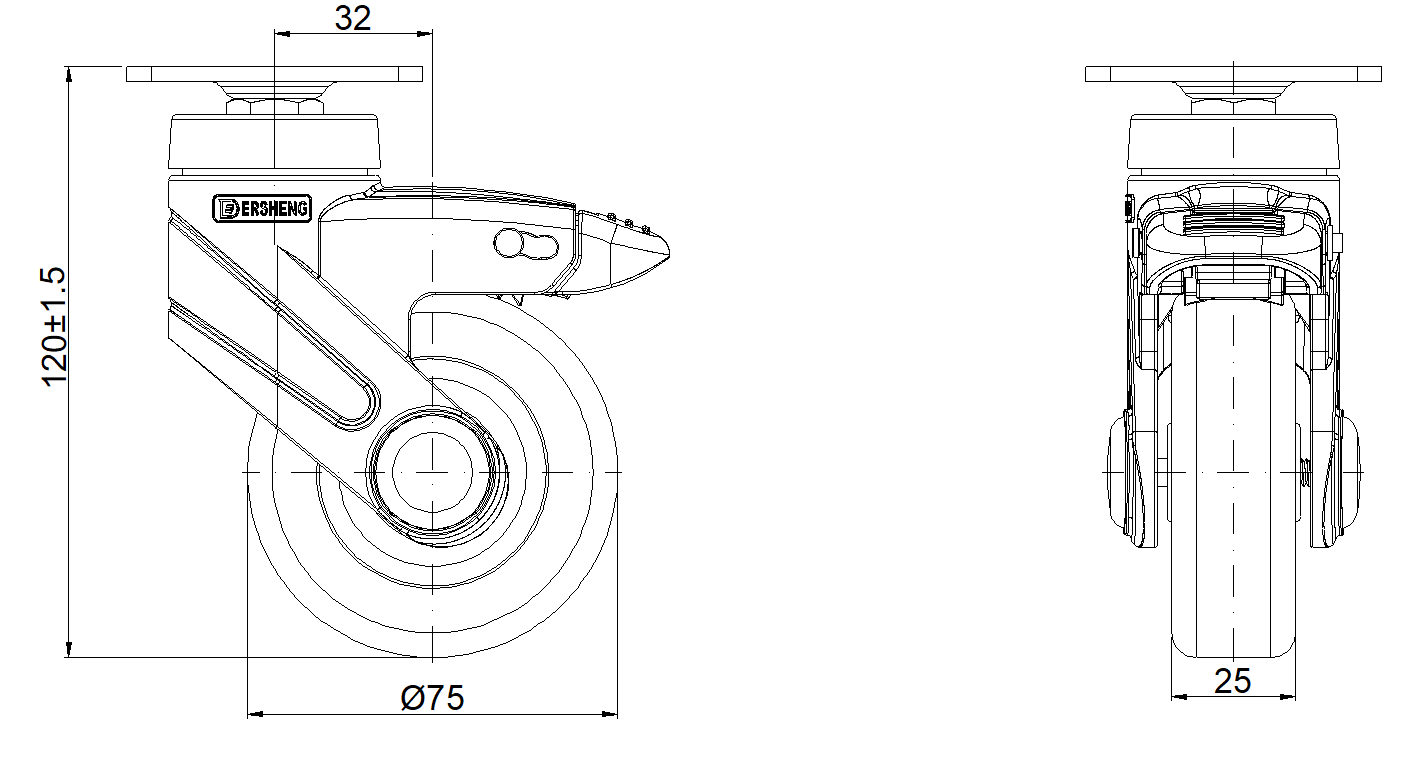

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
25mm
Wheel Bearing
Wheel With Plain Bearing

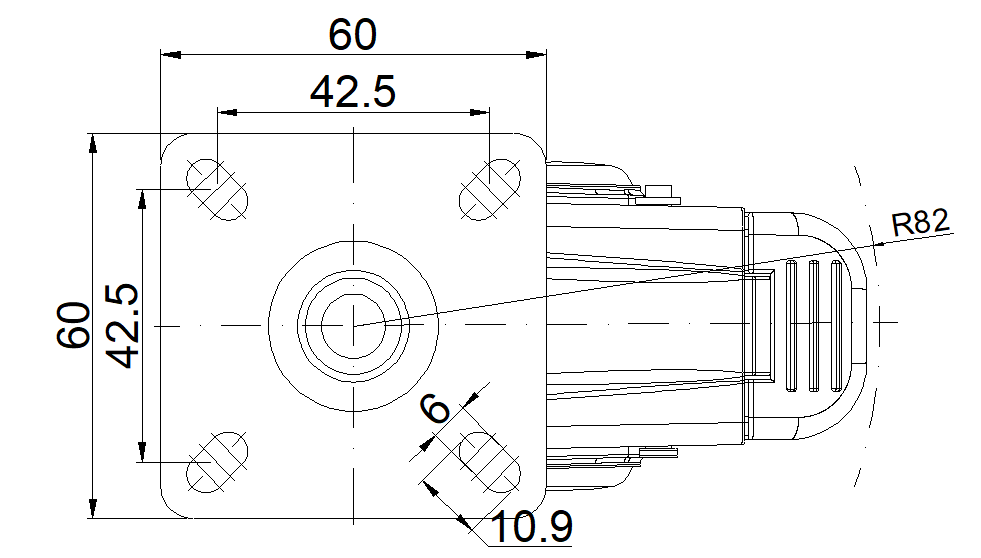

Plate Size
60 x 60mm
Bolt Hole Spacing
42.5×42.5mm
Plate Hole
10.9 x 6mm
Offset
32mm
Swivel Interference
164mm
Overall Height
120mm
Swivel Radius
82mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
50kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
75kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.32kgs
Standard
ISO22881
75 mm
50 Kgs
120 mm
