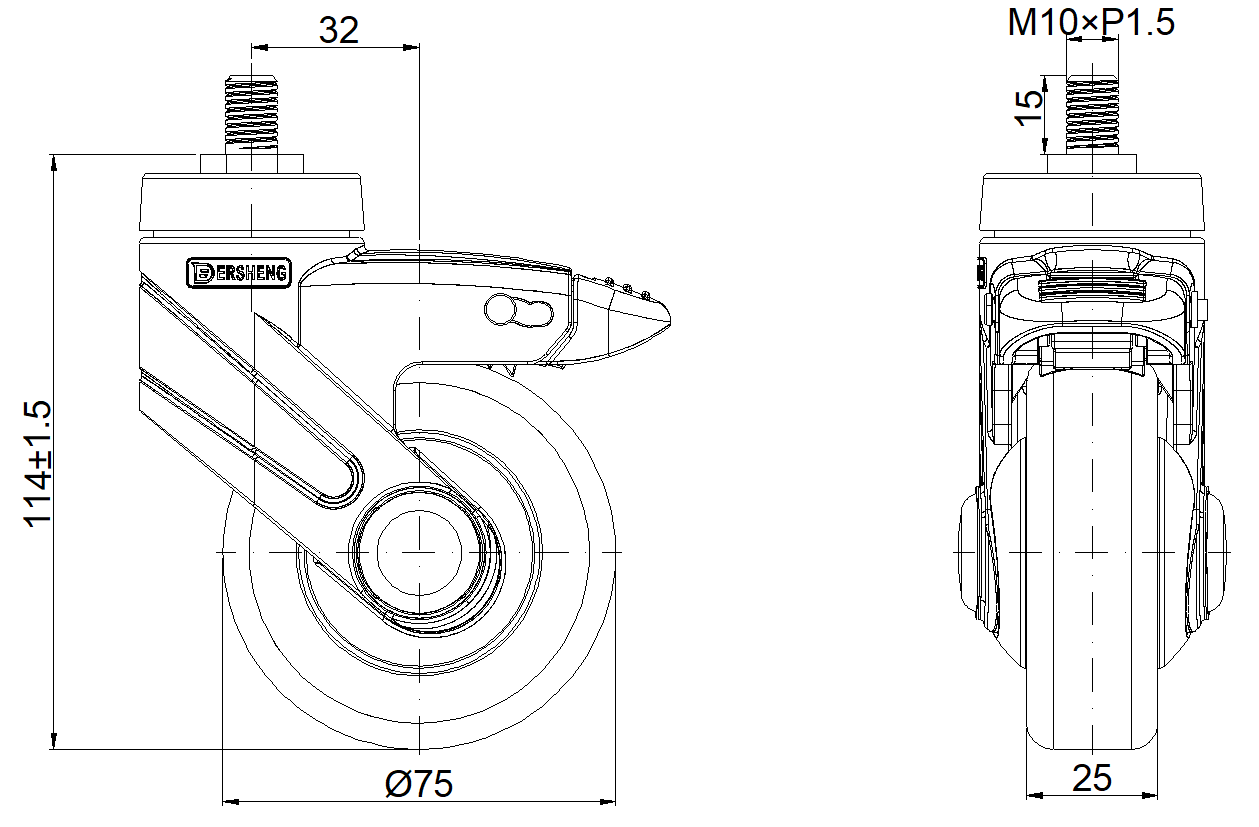

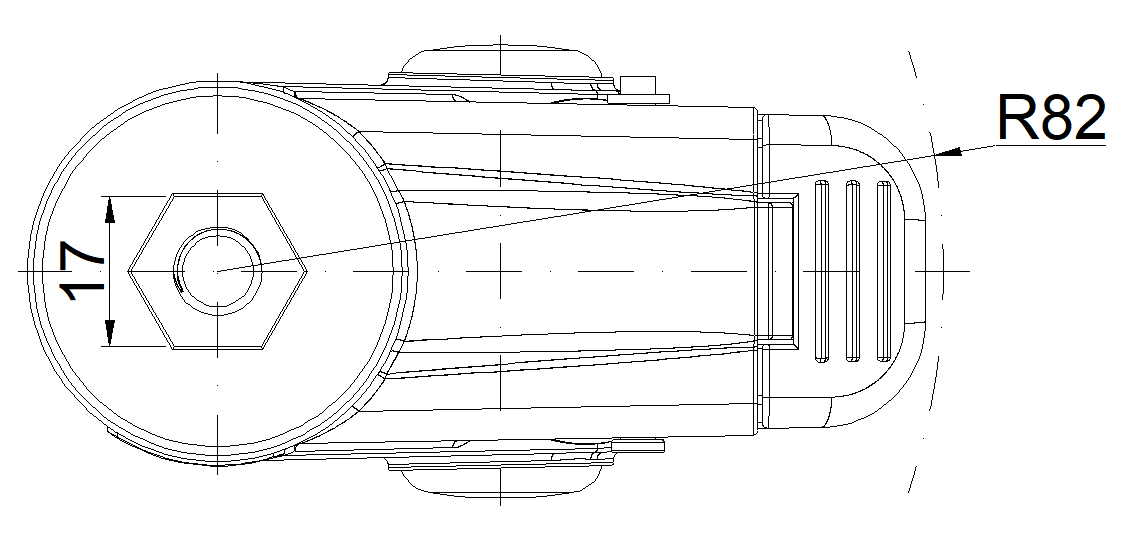

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
25mm
Wheel Bearing
Wheel With Plain Bearing
Threaded Stem
M10
Threaded Length
15mm
Offset
32mm
Swivel Interference
164mm
Overall Height
114mm
Swivel Radius
82mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
50kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
75kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster With Total Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.26kgs
Standard
ISO22881
75 mm
50 Kgs
114 mm
