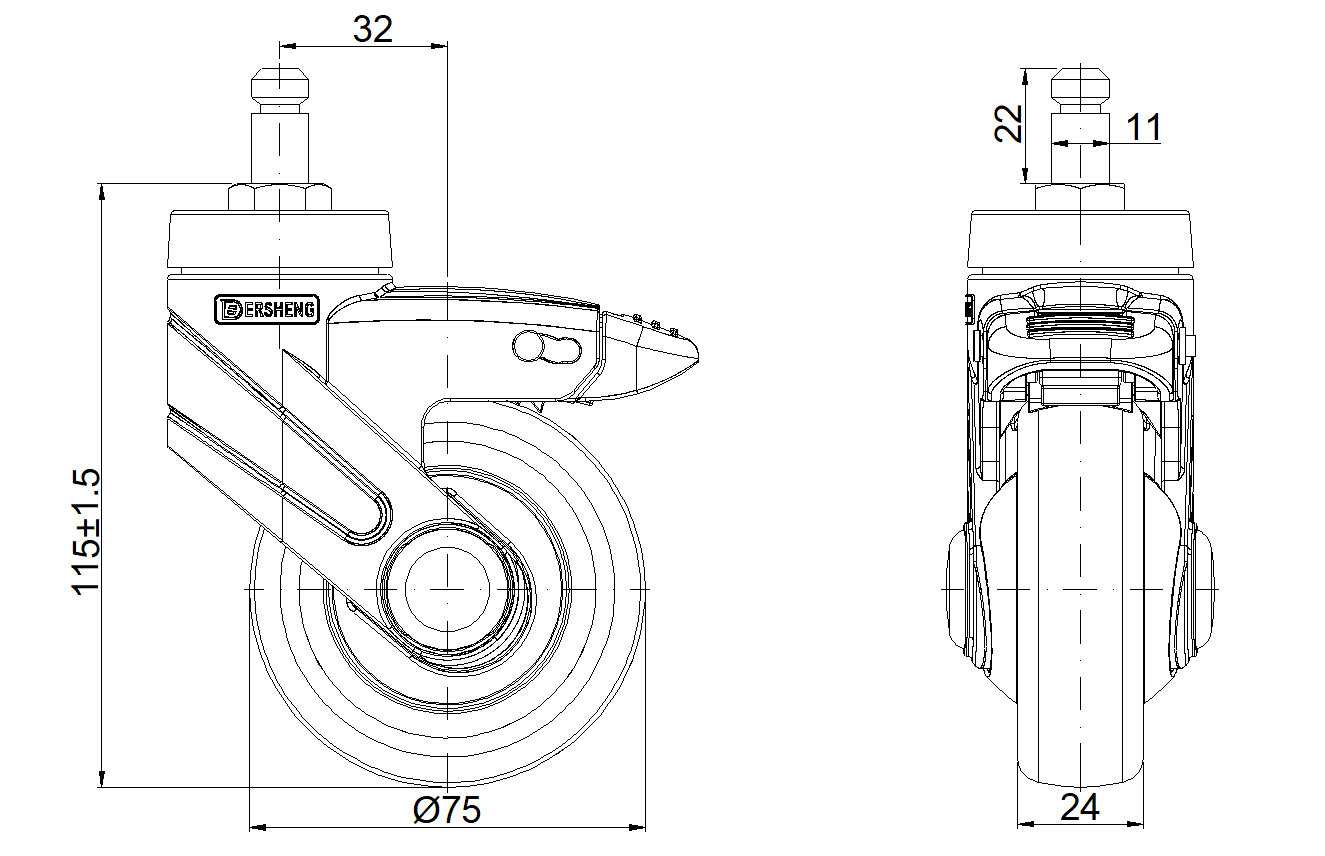

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
24mm
Wheel Bearing
Wheels With Ball Bearings
Stem Diameter
11mm
Stem Length
20mm
Offset
32mm
Swivel Interference
164mm
Overall Height
115mm

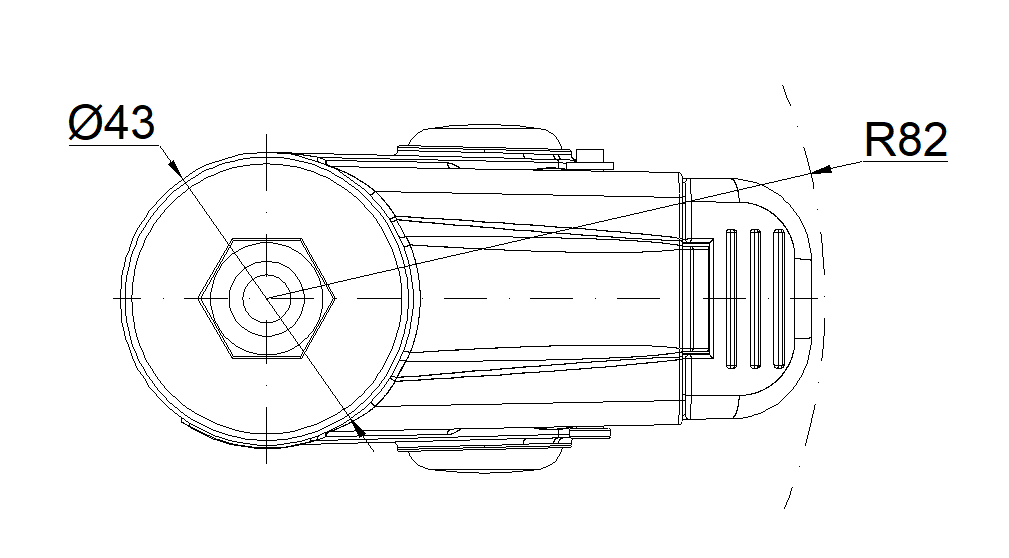

Swivel Radius
82mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
75kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
50kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster With Total Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.26kgs
Standard
ISO22881
