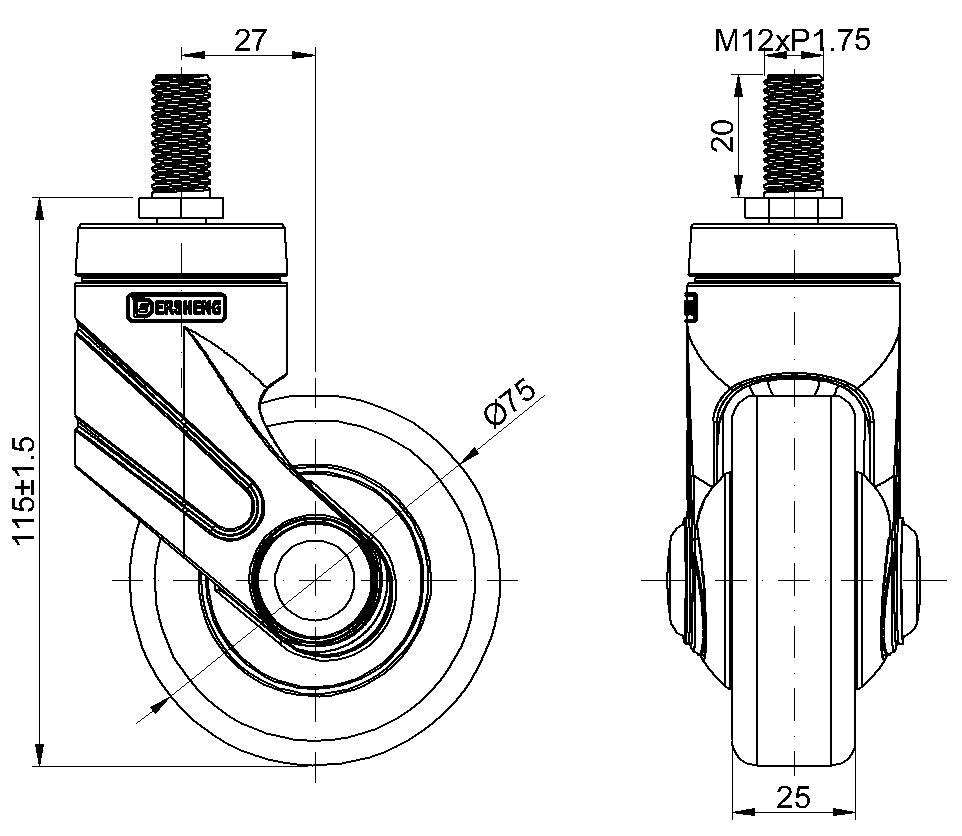

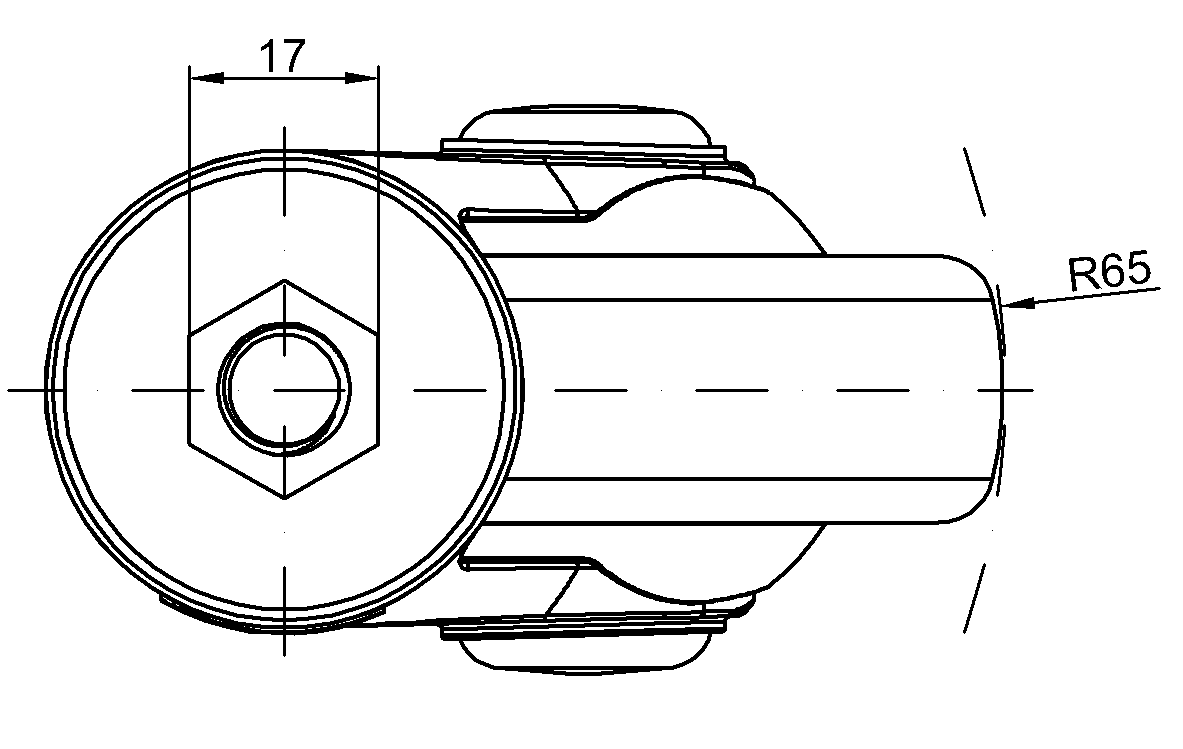

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
25mm
Wheel Bearing
Wheels With Ball Bearings
Threaded Stem
M12xP1.75
Threaded Length
20mm
Offset
27mm
Swivel Interference
130mm
Overall Height
115mm
Swivel Radius
65mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
50kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
75kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.22kgs
Standard
ISO22881
