Removable Casters, Welded steel plate Fork, surface blue paint
Bottom plate installation device, Bolt Hole Spacing 125x75
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown
Bearings - specially designed Ball Bearings to reduce Rolling Resistance
QPU dual wheel, equipped with the latest developed left-right balance structure
The addition of springs to the Fork has significant elasticity and shock absorption functions

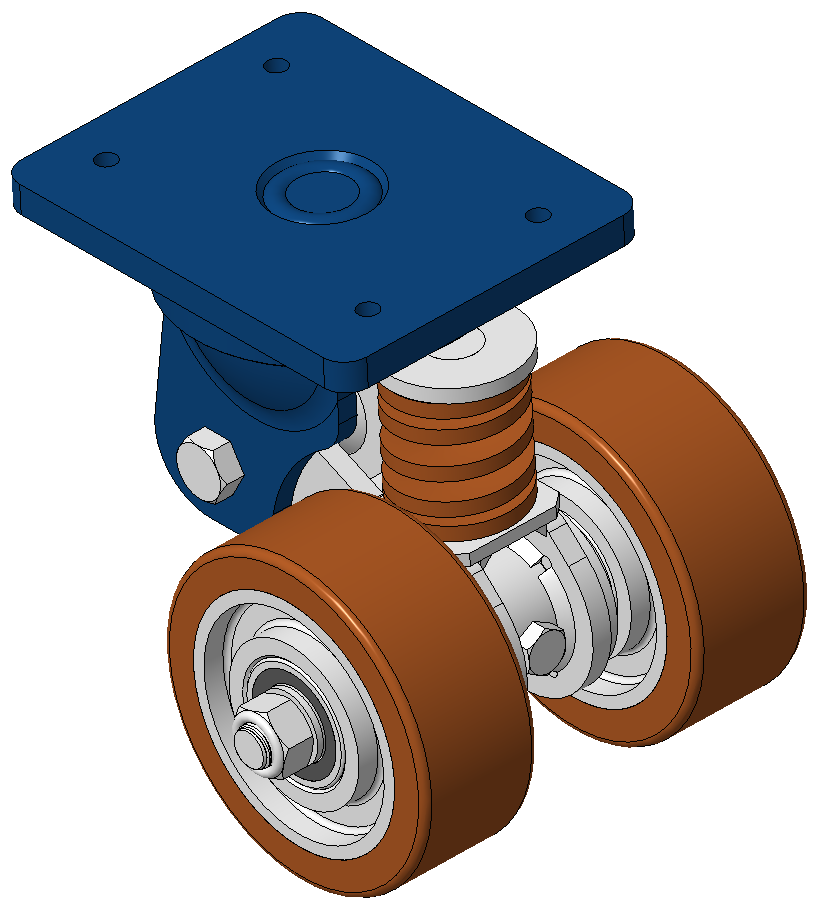

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
50mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
165 x 133mm
Bolt Hole Spacing
125x75mm
Plate Hole
M10xP1.5mm
Offset
70mm
Swivel Interference
320mm
Overall Height
198.1mm
Swivel Radius
160mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
907kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
1360.5kgs
Temperature
-29°C to 0°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
12kgs
Standard
ISO22883
