Removable Casters, Welded steel plate Fork, surface blue paint
Bottom plate installation device, Bolt Hole Spacing 125x75
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, brown orange yellow
Bearings - specially designed Ball Bearings to reduce Rolling Resistance
HPU dual wheel, equipped with the latest developed left-right balance structure
The addition of springs to the Fork has significant elasticity and Shock-Absorbing functions
HPU dual wheel, equipped with the latest developed left-right balance structure
The addition of springs to the Fork has significant elasticity and Shock-Absorbing functions

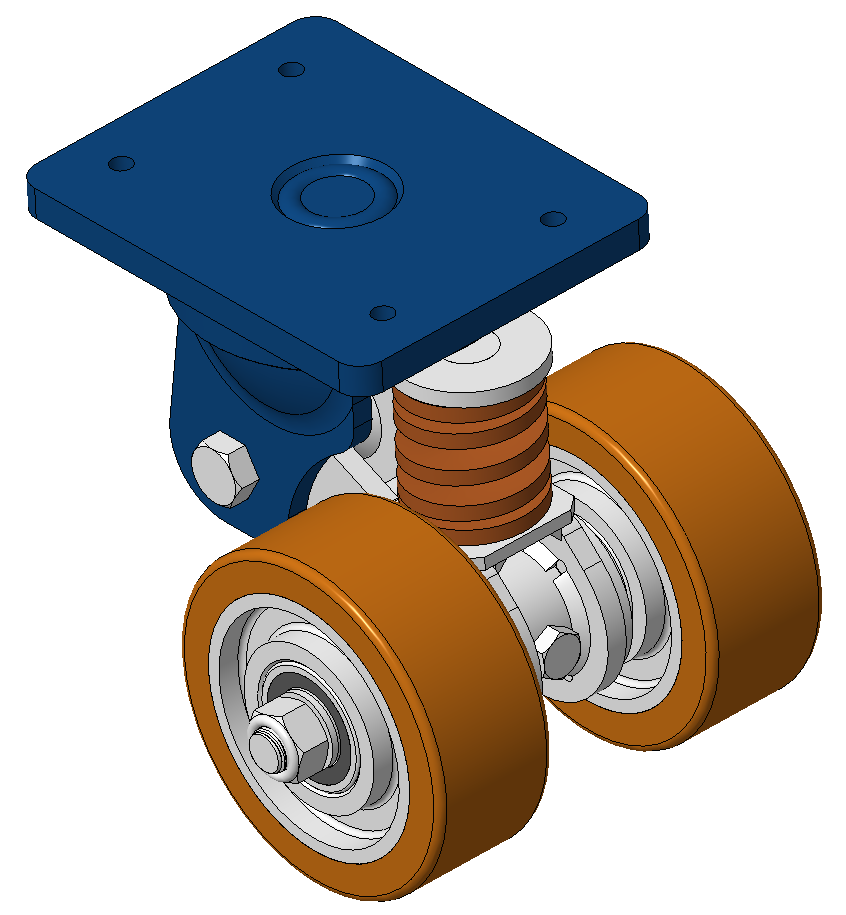

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
50mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
165 x 133mm
Bolt Hole Spacing
125x75mm
Plate Hole
M10xP1.5mm
Offset
70mm
Swivel Interference
320mm
Overall Height
198.1mm
Swivel Radius
160mm
Hardness Of Tread
80±5° Shore A
Load Capacity (Dynamic)
907kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
1360.5kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
12.2kgs
Standard
ISO22883
