	Product Data Sheet
	PPR Series

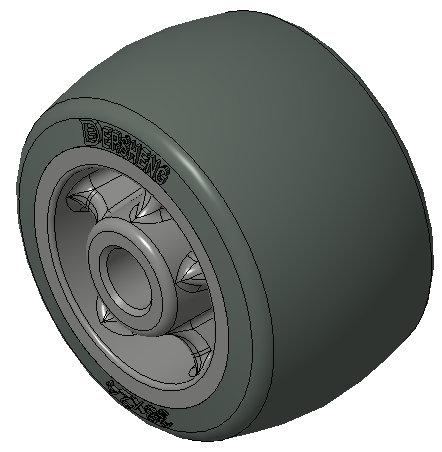

	PPR Wheel (Middle Tube Type) (Gray/Dark Gray) Wheel Diameter × Wheel Width 38×24mm
	EAN
	KS-12022651100100

	Easy to Floor Surface Preservation, silent and traceless, Easy To Maneuver, and capable of handling heavy loads. Low rolling and Swivel Resistance, Resistant To many other aggressive substances.. Color: Dark gray, with a medium-length tube.

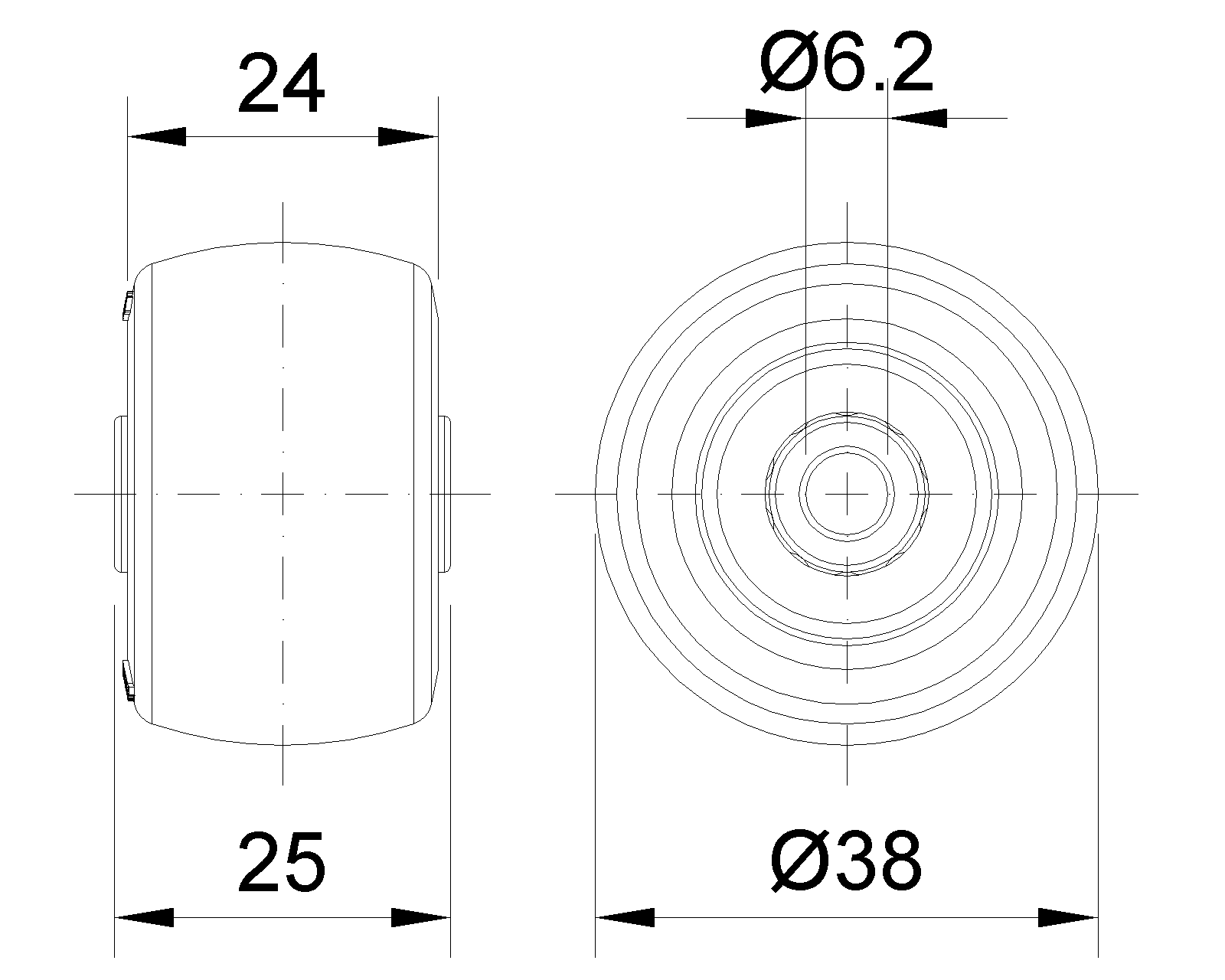

	Wheel Tread: High-quality impact-resistant polypropylene 　　Wheel Center: Thermoplastic rubber elastomer (TPR) 　　Bearing: mid-tube type 　　Drawings are for reference only and may differ from the product

	Metric Imperial 　　Wheel Diameter(D) 38mm　　　Wheel Width(T2) 24mm
	Wheel Bearing Plain Bearing 　　Axle Bore(d) 6mm　　　Axle Bore(S) — 　　Bearing Bore Depth(t) — 　　Hub Lenth(T1) 25mm　　　Hardness Of Tread 82±5° Shore A　　　Load Capacity (Dynamic) 30kgs	Rolling Resistance　　　 ● ● ● ● ○ 　　Operating Noise　　　　 ● ● ● ● ○ 　　Floor Surface Preservation ● ● ● ● ●
	Load Capacity (Static) 45kgs　　　Temperature -20°C to +60°C
	Electrical Conductivity N/A 　　Anti-Static N/A 　　Weight 0.02kgs　　　Standard ISO22883
