    Product Data Sheet
Resolute Rubber Wheel Series

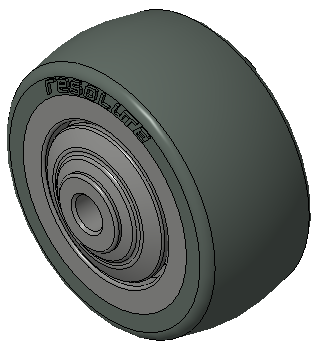

　　All-Purpose Wheel (Pearlescent Dark Gray, Flat) Wheel Diameter × Wheel Width 40.5×22mm
　　EAN
　　　　　 KS-12024561100172
　　　　　 　　　
Easy to protect floors, Non-Marking, Easy To Maneuver, and capable of handling heavy loads Low rolling and Swivel Resistance, Resistant To many other aggressive substances. Color: Pearlescent dark gray, with Dust Cap
　　Wheel Tread: High-quality impact-resistant polypropylene
　　Wheel Center: Thermoplastic rubber elastomer (TPR)
　　Bearing: ball bearing

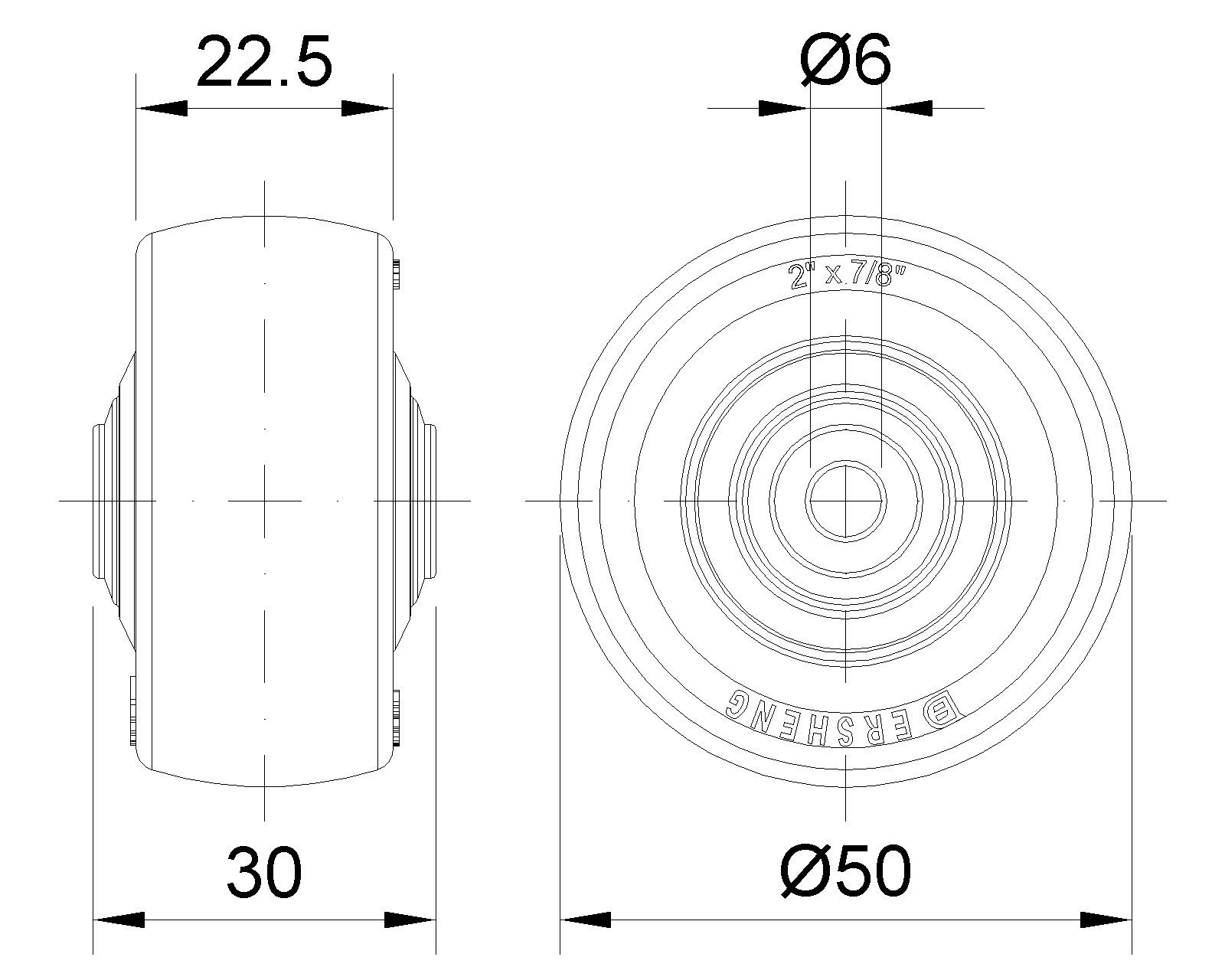

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter(D) 50mm　
　　Wheel Width(T2) 22.5mm　
　　Wheel Bearing Ball Bearing
　　Axle Bore(d) 6mm　
　　Axle Bore(S) —
　　Bearing Bore Depth(t) —
　　Hub Lenth(T1) 30mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 56kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 84kgs　
　　Temperature -20°C to +60°C　

　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.02kgs　
　　Standard ISO22883
