YJ-12036109336100
Excellent Mechanical Properties, maintaining Heavy Load during high-speed movement; good wear resistance; not easily deformed.
Excellent resistance to chemicals, solvents, and corrosion.
Suitable for Forklift Trucks, Electric Stackers, Heavy duty machines, AGVs, and automated industrial applications.
XPU, Brown, Curved Wheel Surface
Wheel Tread: High-quality polyurethane
Product descriptions are for reference only. The actual product shall prevail.
Metric Imperial

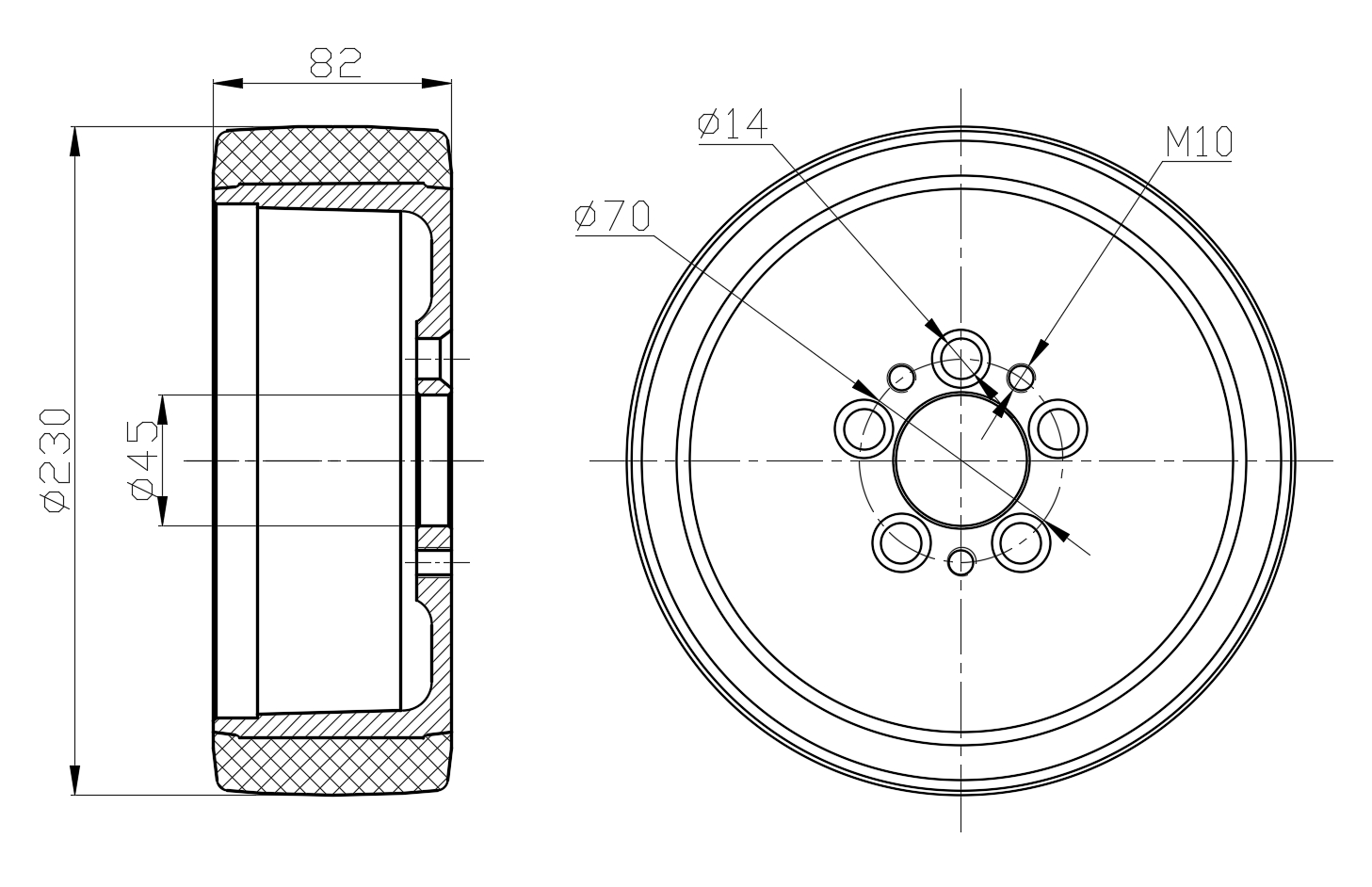

Wheel Diameter（D） 230mm
Wheel Width（T2） 82mm
Wheel installation — Hub Lenth (T1) —
Wheel center-bore diameter (d) 45mm
Wheel Mounting Bolt Hole PCD Diameter 14mm
Wheel Mounting Bolt Hole PCD 70mm
# Of Wheel mounting bolt boles 5
Wheel mounting bolt hole (M) 10
Number of wheel mounting bolt holes 3 Load Capacity (Static) 2400kgs
Load Capacity at 4 km/h 1600kgs
Load Capacity at 6 km/h 1360kgs
Load Capacity at 10 km/h 1120kgs Load Capacity at 16 km/h 640kgs
Hardness Of Tread 92±5° Shore A
Temperature -20°C to +70°C
Tread Pattern —
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ○
Wheel centre/ rim Cast iron / sprayed with anti-rust oil
Non-Marking Y
Conductive N/A
Anti N/A
Weight 6.24kgs
Standard ISO22883
