YJ-12036112480303
Excellent Mechanical Properties, maintaining Heavy Load during high-speed movement; good wear resistance; not easily deformed.
Excellent resistance to chemicals, solvents, and corrosion.
Suitable for Forklift Trucks, electric Forklift Trucks, Heavy duty machines, AGVs, and automated industrial applications.
XPU Burgundy
Wheel Tread: High-quality polyurethane
Product descriptions are for reference only. The actual product shall prevail.
Metric Imperial

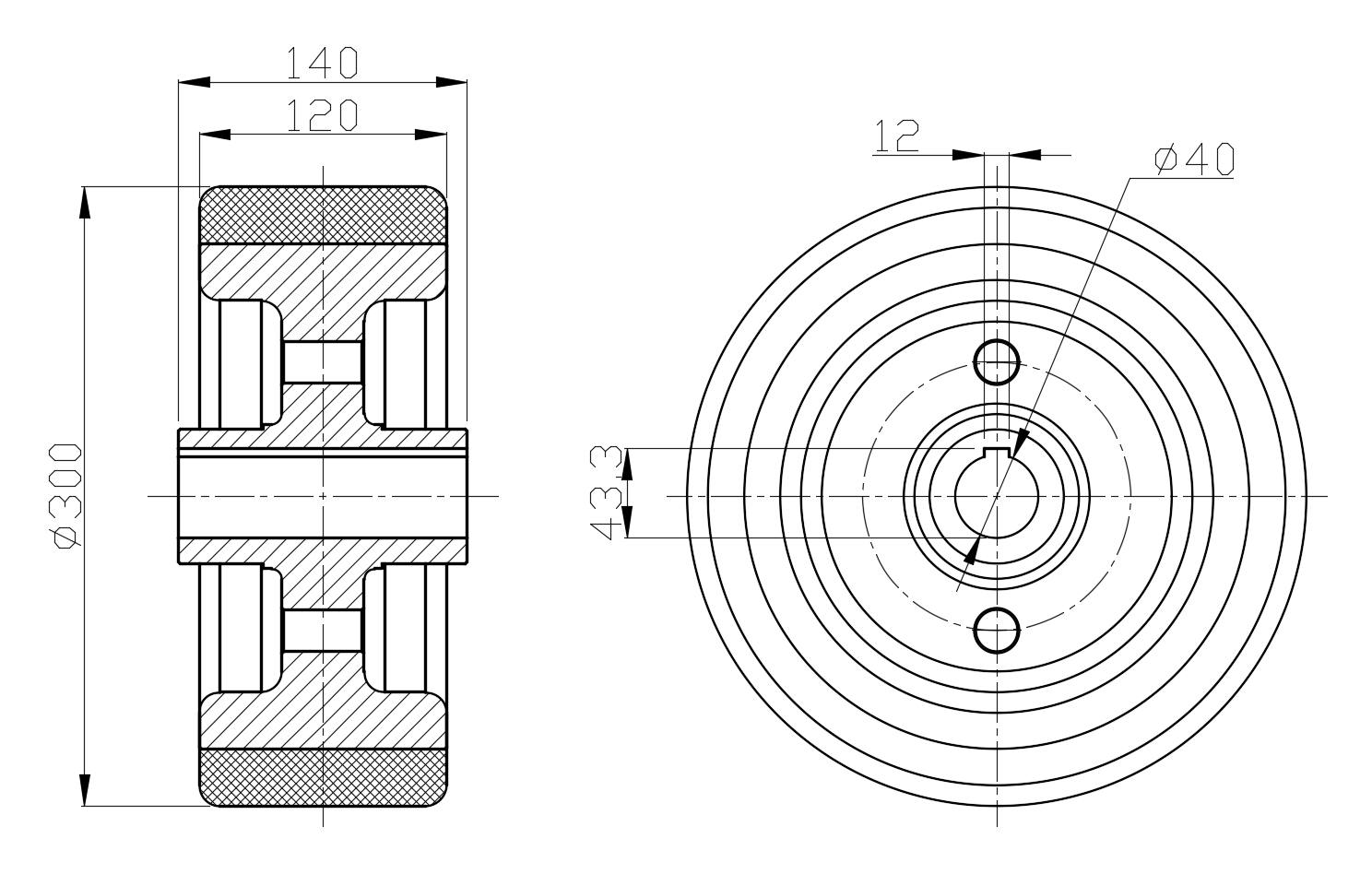

Wheel Diameter（D） 300mm
Wheel Width（T2） 120mm
Wheel installation — Hub Lenth (T1) 140mm
Wheel Mounting Bore Diameter 40mm
Keyway Width 12mm
Wheel Keyway Depth (H) 43.3mm Load Capacity (Static) 4050kgs
Load Capacity at 4 km/h 2700kgs
Load Capacity at 6 km/h 2295kgs
Load Capacity at 10 km/h 1890kgs Load Capacity at 16 km/h 1080kgs
Hardness Of Tread 92±5° Shore A
Temperature -20°C to +70°C
Tread Pattern —
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ○
Wheel centre/ rim Iron core/galvanized
Non-Marking Y
Conductive N/A
Anti N/A
Weight 31.25kgs
Standard ISO22883
