YJ-12036108200101
Excellent Mechanical Properties, maintaining Heavy Load during high-speed movement; good wear resistance; not easily deformed.
Excellent resistance to chemicals, solvents, and corrosion.
Suitable for Forklift Trucks, electric Forklift Trucks, Heavy duty machines, AGVs, and automated industrial applications.
XPU Burgundy
Wheel Tread: High-quality polyurethane
Product descriptions are for reference only. The actual product shall prevail.
Metric Imperial

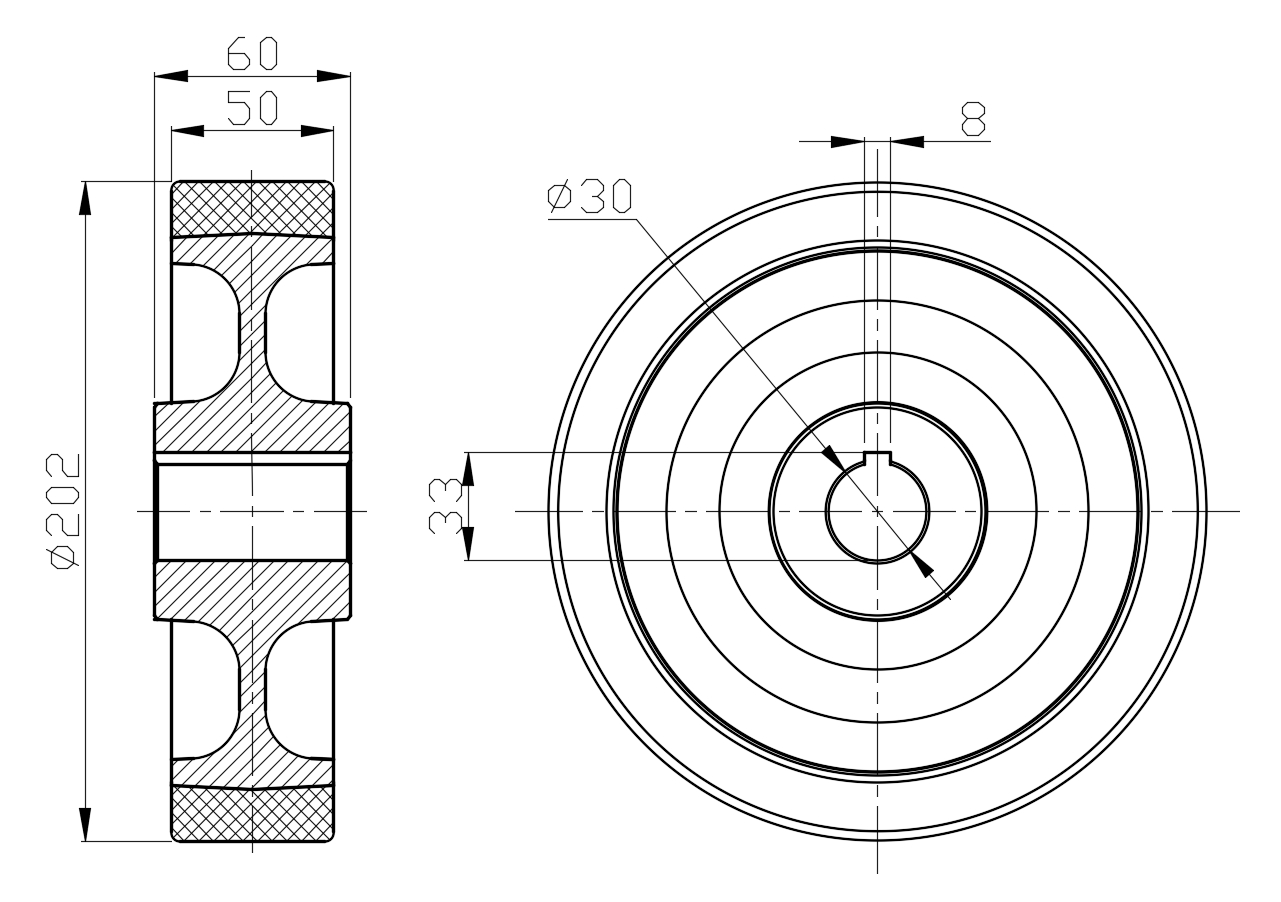

Wheel Diameter（D） 202mm
Wheel Width（T2） 50mm
Wheel installation — Hub Lenth (T1) 60mm
Wheel Mounting Bore Diameter 30mm
Keyway Width 8mm
Wheel Keyway Depth (H) 33mm Load Capacity (Static) 2100kgs
Load Capacity at 4 km/h 1400kgs
Load Capacity at 6 km/h 1190kgs
Load Capacity at 10 km/h 980kgs Load Capacity at 16 km/h 560kgs
Hardness Of Tread 92±5° Shore A
Temperature -20°C to +70°C
Tread Pattern —
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ○
Wheel centre/ rim Cast iron / spray-baked black paint
Non-Marking Y
Conductive N/A
Anti N/A
Weight 4.7kgs
Standard ISO22883
