    Product Data Sheet
1102 B Type Caster Series
　　Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 200 x 44mm
　　EAN
　　　　　 KS-11020800044131
　　　　　 　　　
Casters with Front Brake locking system, Welded Caster Fork, blue painted finish. Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center, High-Quality, highly Resilient Rubber tread, Cast Iron in natural finish Bearing—Ball Bearing
　　Wheel Tread: Made of high quality and high elastic rubber
　　Wheel Center: iron core/cast iron core

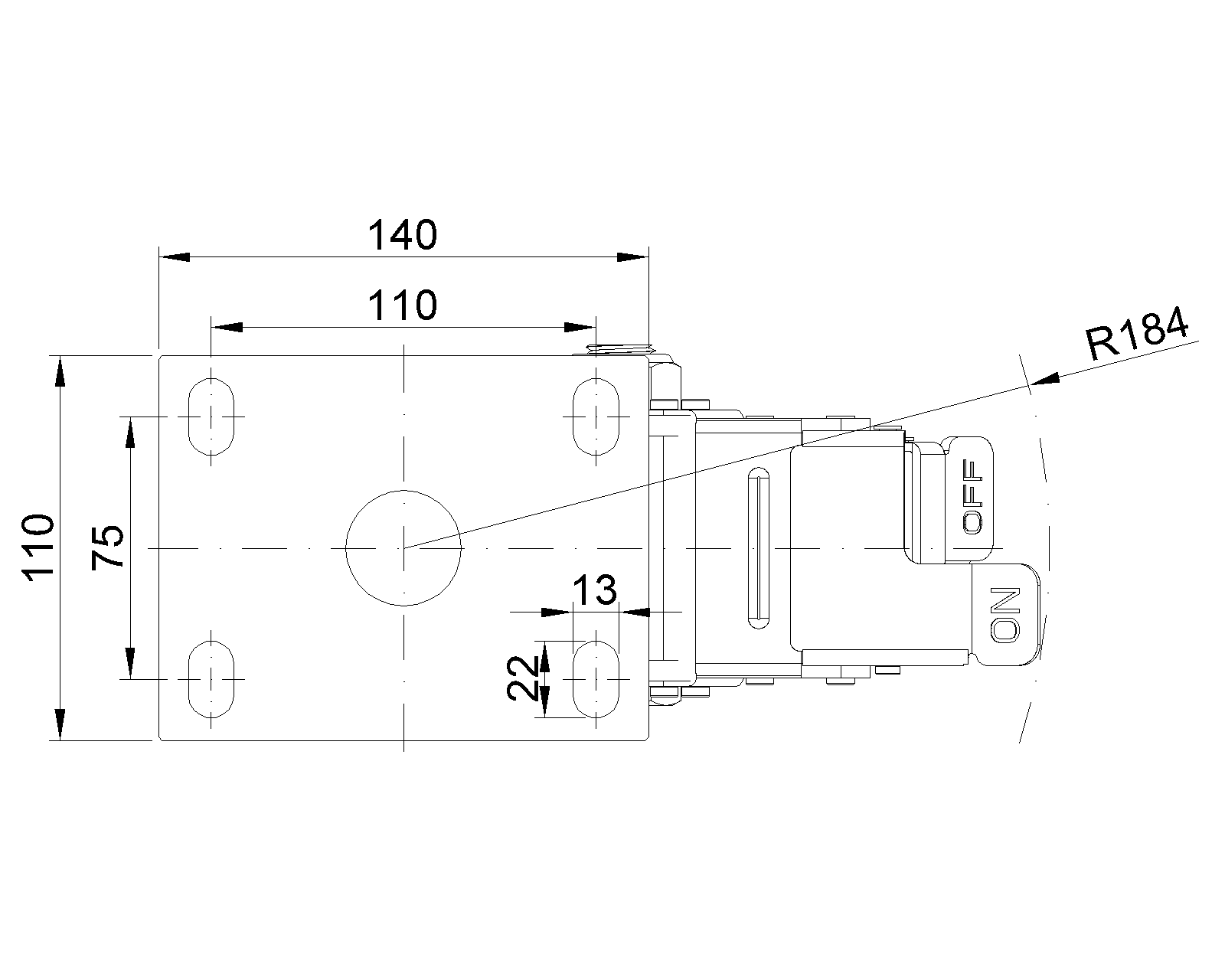

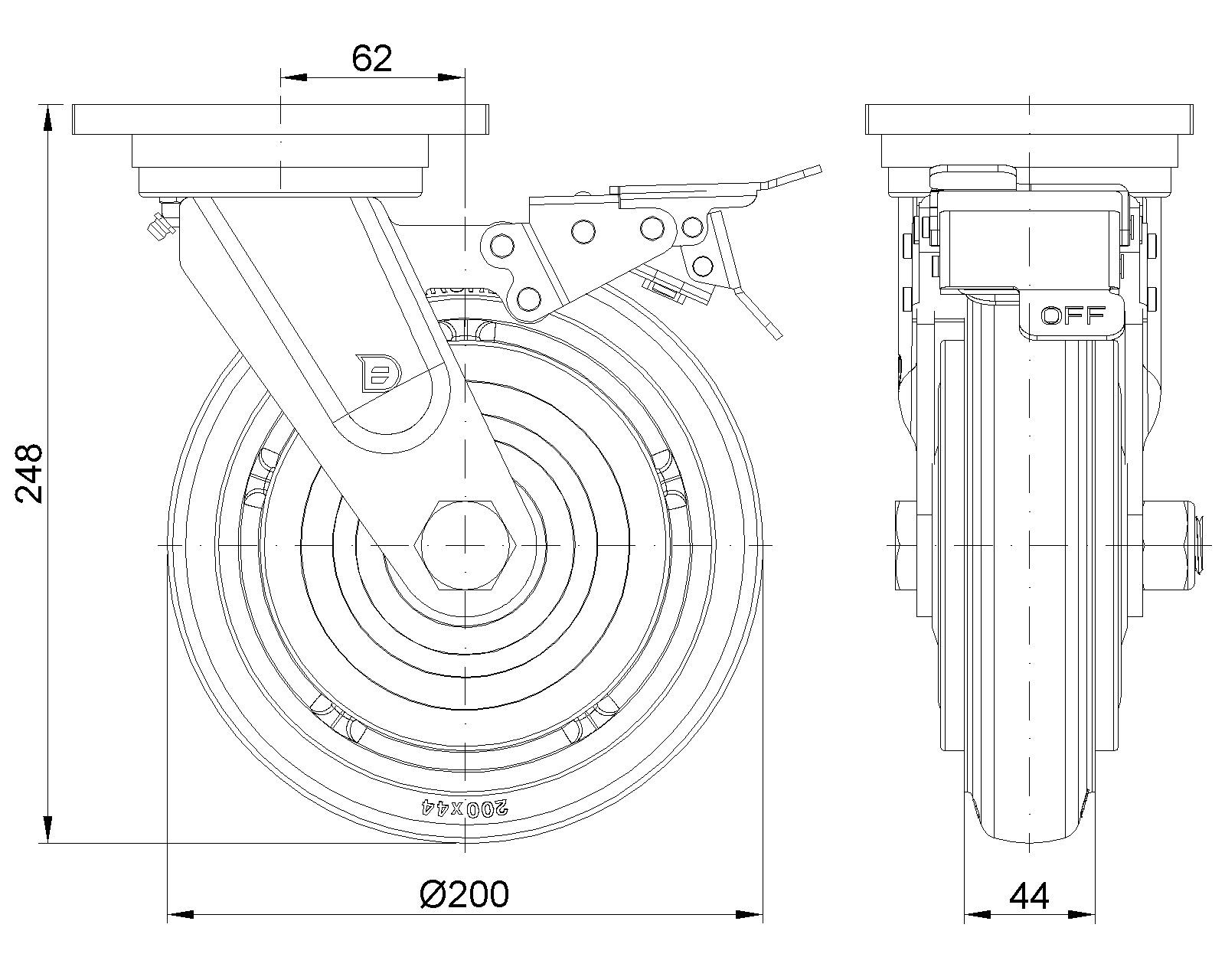

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　
　　Wheel Width 44mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 62mm　
　　Swivel Interference 368mm　
　　Overall Height 248mm　
　　Swivel Radius 184mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 350kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 525kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 6.60kgs　
　　Standard ISO22883
　　
　　
