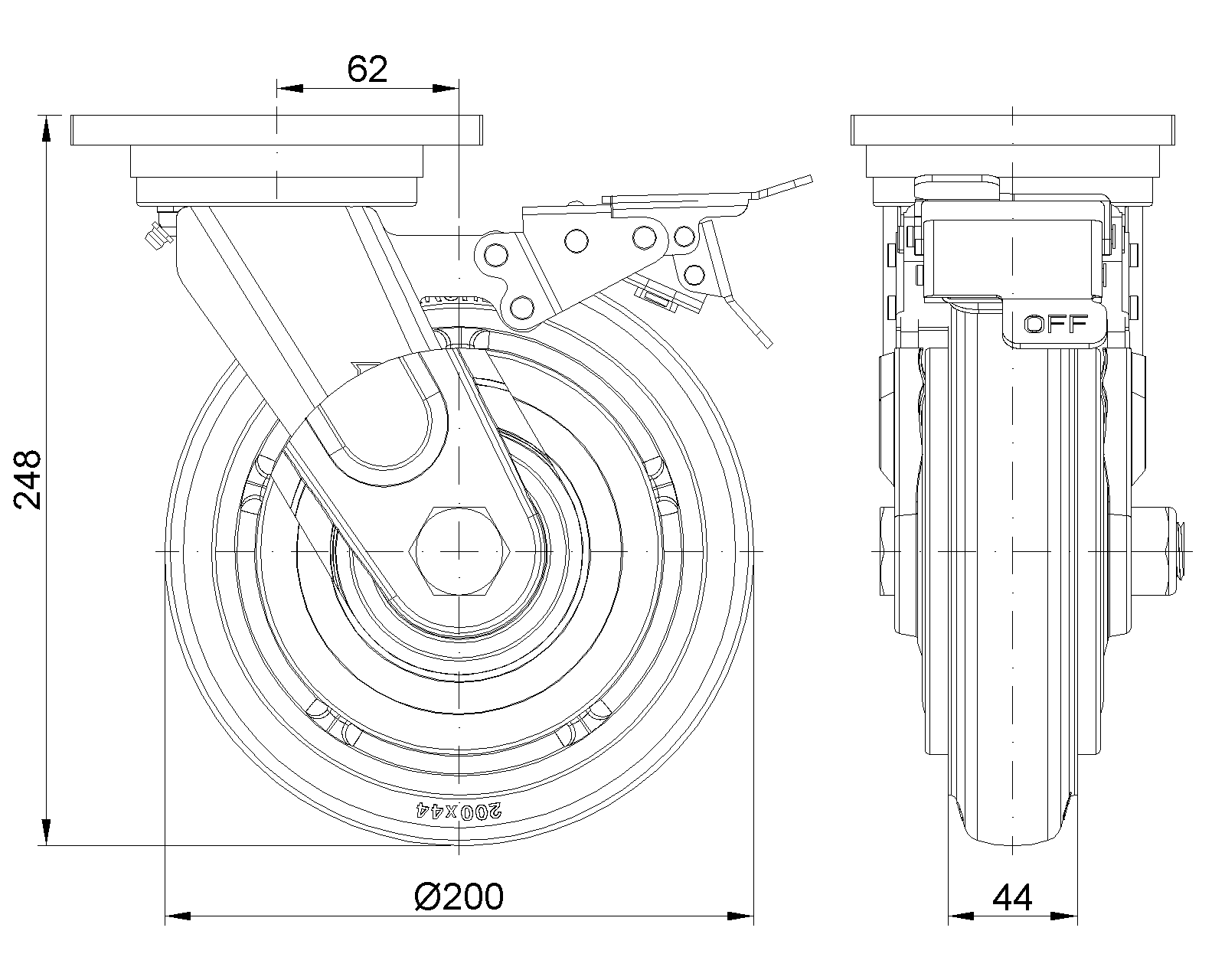

Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 200 x 44mm

KS-11020800044141

Wheel Diameter200mm　8＂

Load Capacity (Dynamic)350kgs　772lbs

Overall Height248mm　9-15/16＂

Wheel BearingWheels With Ball Bearings

Casters with front brake and With locking system, Welded Caster Fork

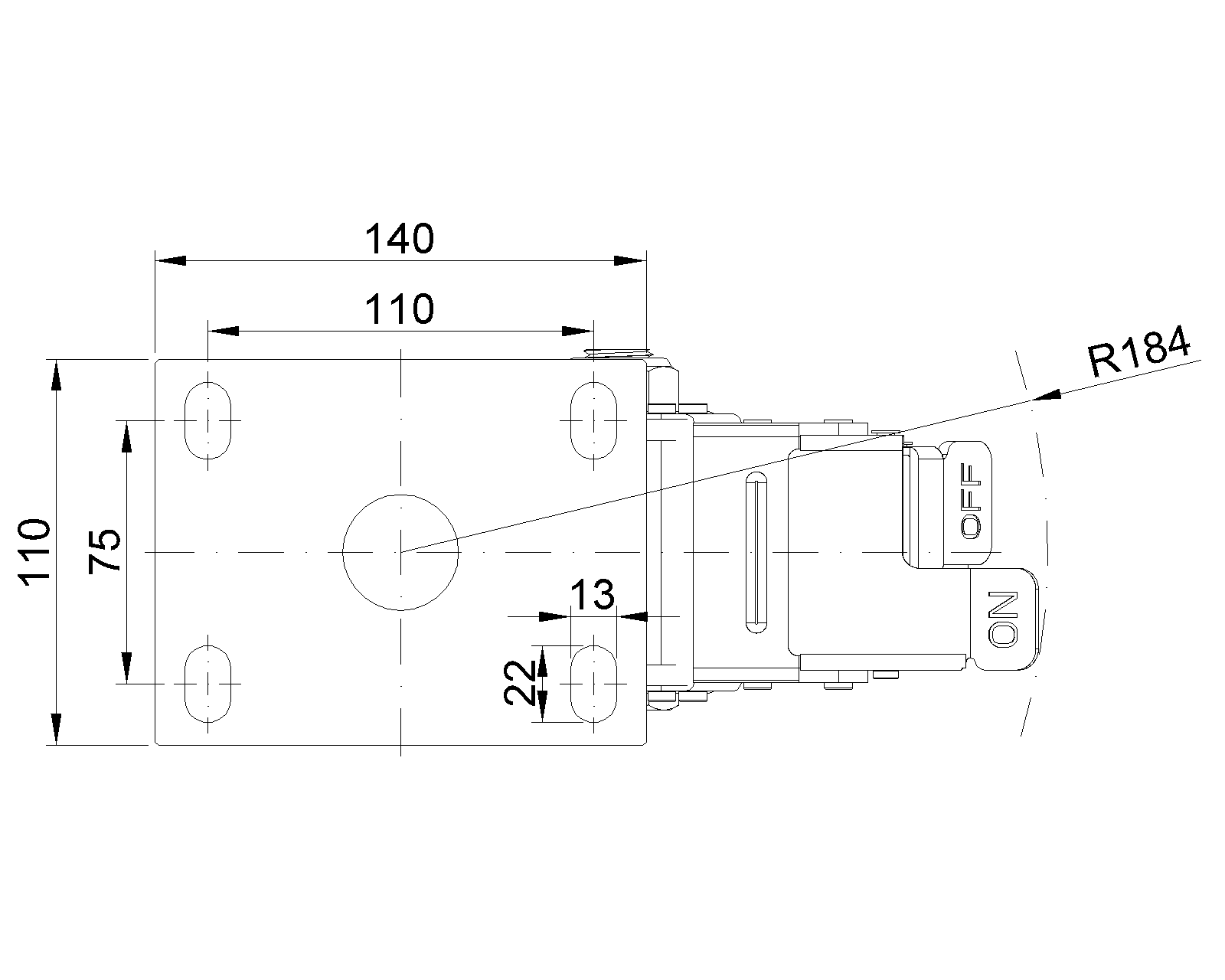

Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron Wheel Center, High-Quality, highly Resilient Rubber Wheel Tread, Cast Iron in natural color
Bearings—Ball Bearings with special Anti-thread wheel cover
Wheel surface: Made of high-quality, highly elastic rubber
Wheel Center: iron core/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

3D drawings are for members only. Please log in to download.

Product Data Sheet

* For any deviation between metric and imperial spec, please refer to the metric spec.

Rolling SmoothnessMax. 5 pointsScore: 3

Quiet OperationMax. 5 pointsScore: 4

Floor Surface PreservationMax. 5 pointsScore: 4
