    Product Data Sheet
1110-2 Light Duty Wire & Shelving/Display Series
　　PU (Black Transparent) Wheel Diameter × Wheel Width 76 × 23.5mm
　　EAN
　　　　　 　　　
　　YJ-11100300954013 　　　

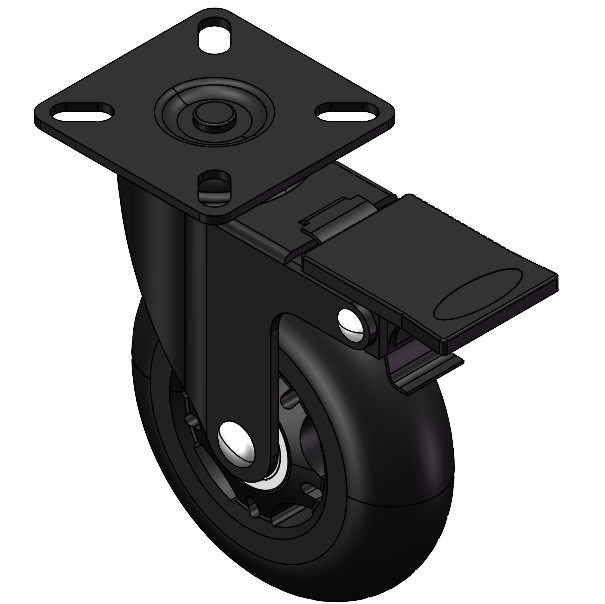

Casters with a single-brake With locking system. Top Plate with Riveted, Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacings.
Electroplated surface, Mounting Type - Top Plate.
Polypropylene core with High Quality Polyurethane Wheel Tread.
Translucent black finish. Bearings with Ball Bearings.
　　Wheel surface: high quality polyurethane
　　Wheel Center:Polypropylene

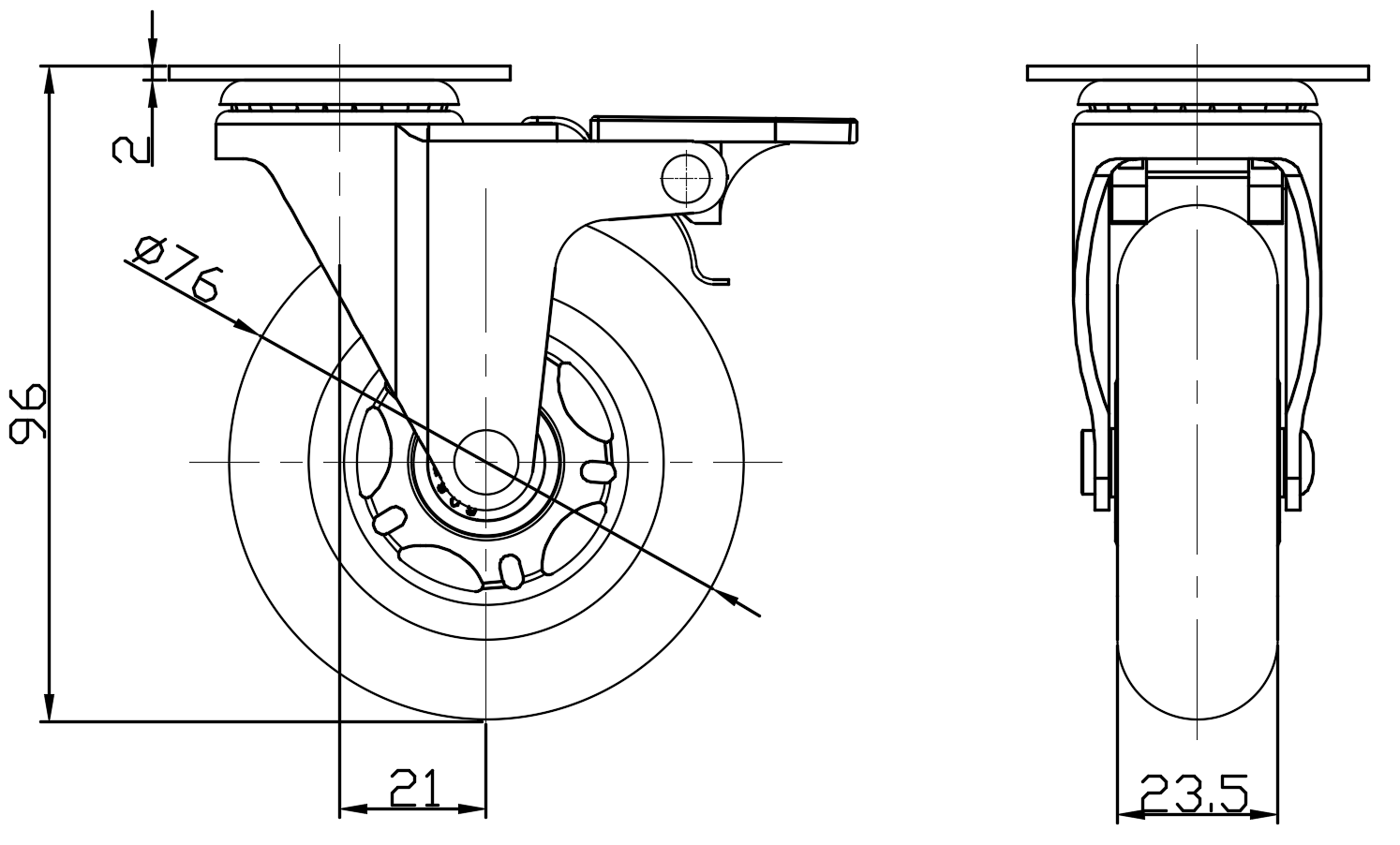

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 76mm　

　　Wheel Width 23.5mm　
　　Wheel Bearing Wheels With Ball Bearings

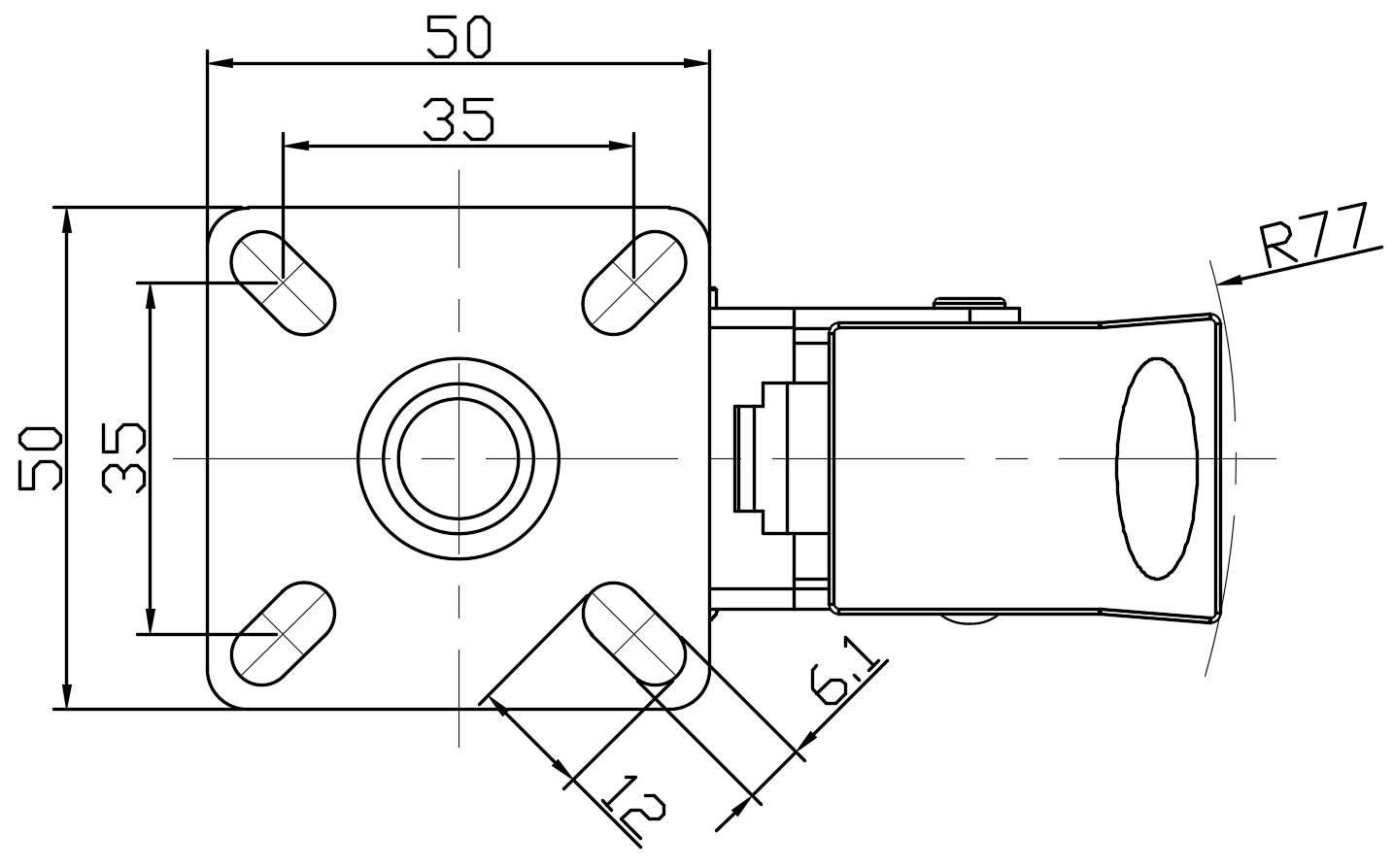

　　Plate Size 50 x 50mm　
　　Bolt Hole Spacing 35 x 35mm　
　　Plate Hole 12 x 6.1mm　
　　Offset 21mm　
　　Swivel Interference 154mm　
　　Overall Height 96mm　
　　Swivel Radius 77mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 50kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 75kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Wheel Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.27kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

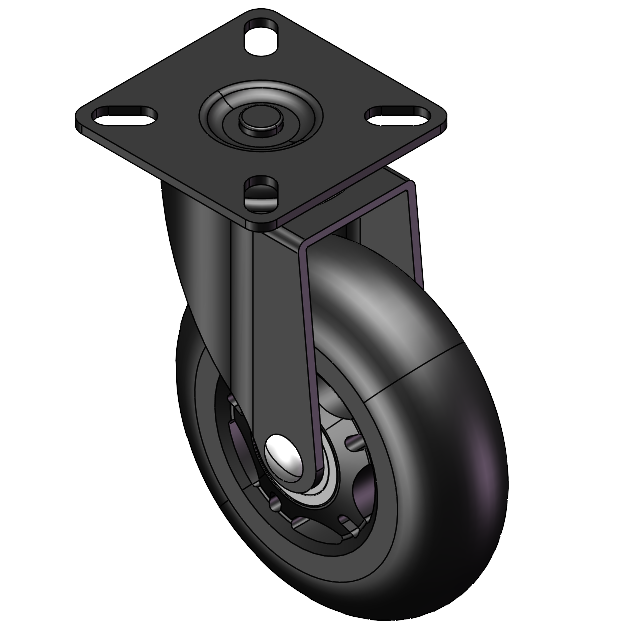

1110-2 Light Duty Wire & Shelving/Display Series
