    Product Data Sheet
1111 Institutional Caster Series
　　PPR (Pearlescent dark gray) Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　　　　 　　　
　　YJ-11110500264013 　　　
Side brake, Locking system castor. Top Plate Riveted Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Surface Zine-Plated, Top Plate Mounting Type Impact resistant High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Pearl grey, Bearing - Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

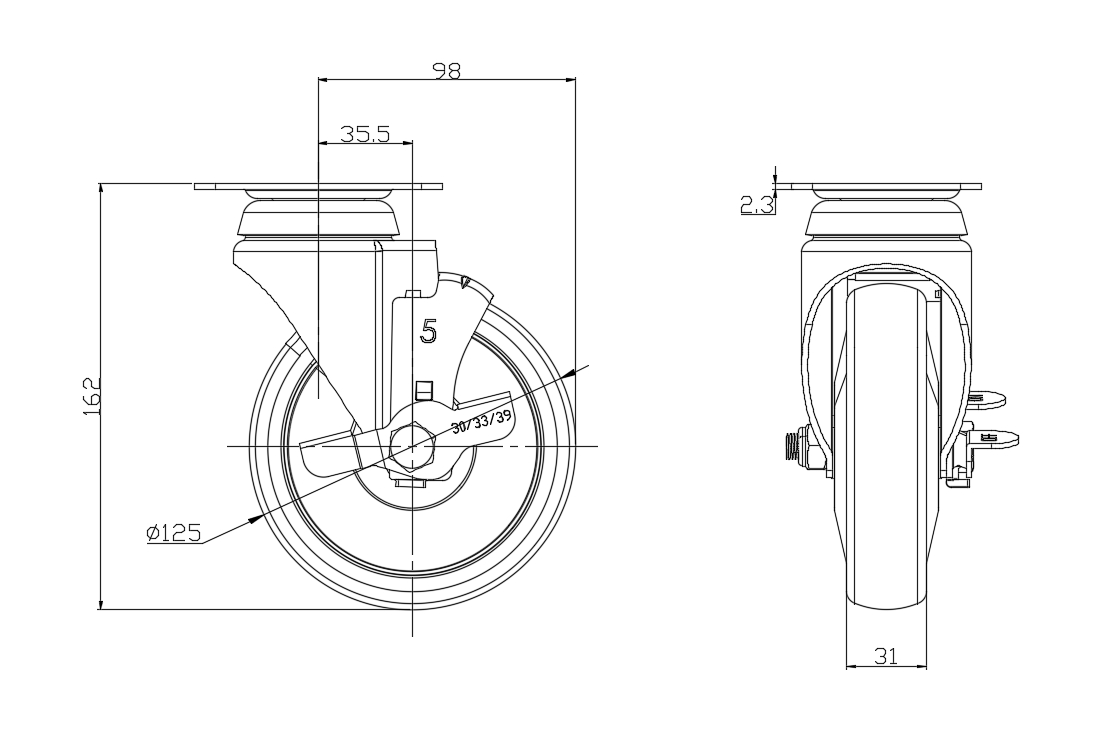

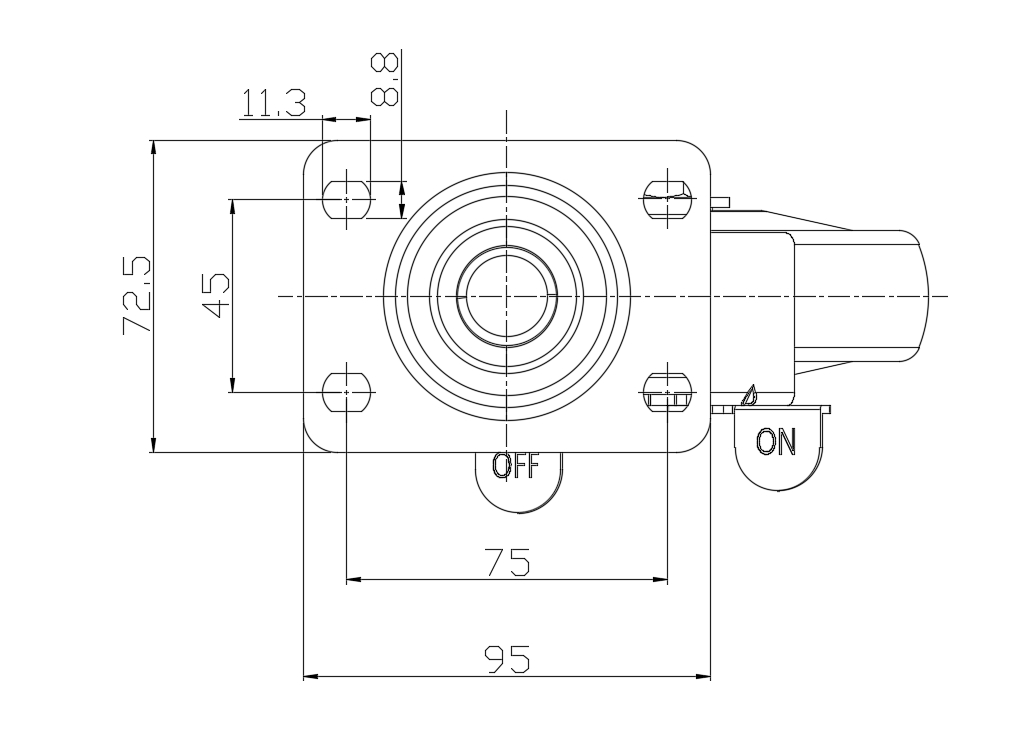

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 95 x 72.5mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 11.3 x 8.8mm　
　　Offset 35.5mm　
　　Swivel Interference 196mm　
　　Overall Height 162mm　
　　Swivel Radius 98mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 110kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 165kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.93kgs　
　　Standard ISO22883
　　
　　
