    Product Data Sheet
1111 Institutional Caster Series
　　Phenolic (black) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 　　　
　　YJ-11110400254013 　　　

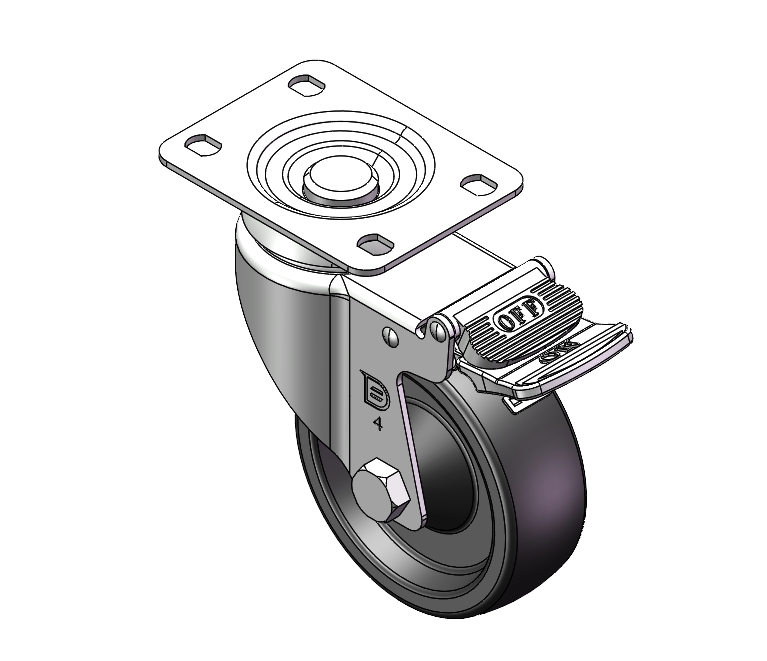

Castors with Total Brake locking system. Top Plate Riveted Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Surface Zine-Plated, Top Plate Mounting Type Compressed synthetic resin Wheel Center and Wheel Tread with impregnated fabric Black, wheels - Plain Bearing.
　　Tread: Compressed synthetic resin impregnated with fabric
　　Wheel Center: Compressed synthetic resin impregnated with fabric

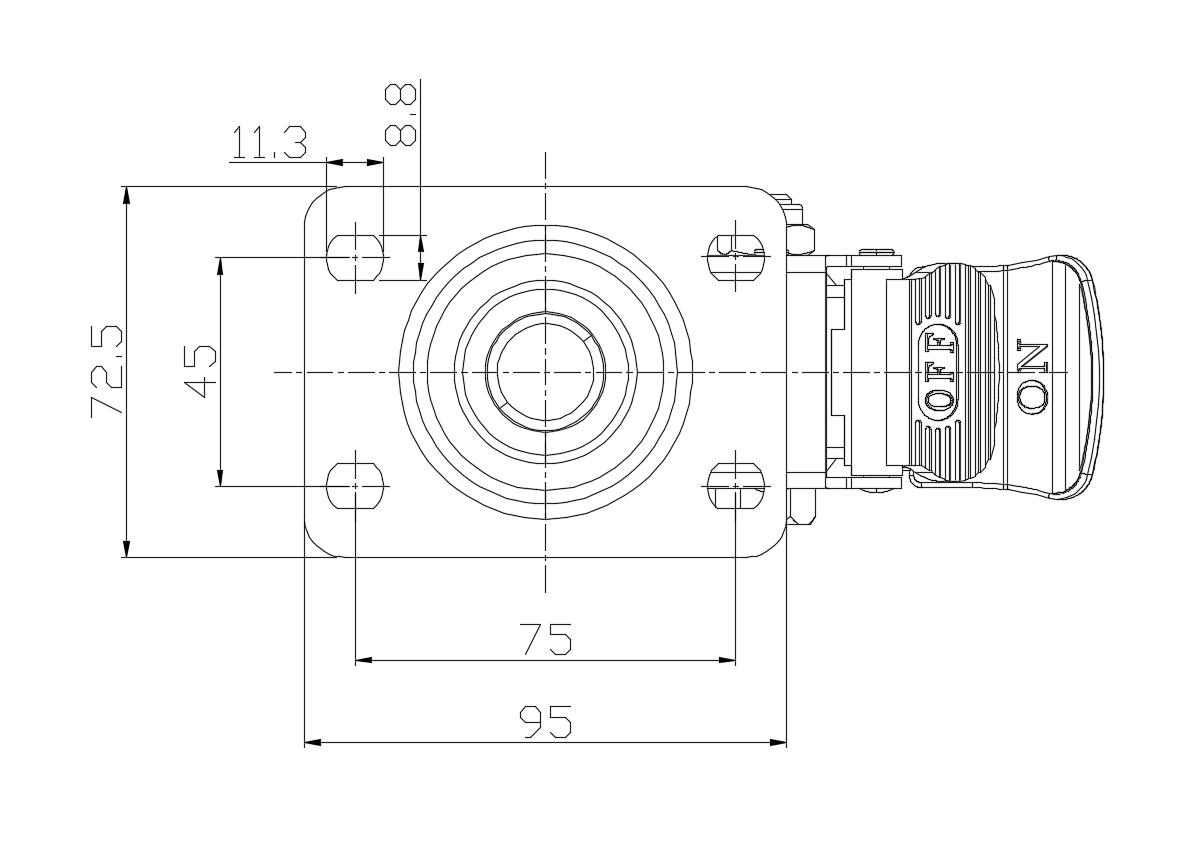

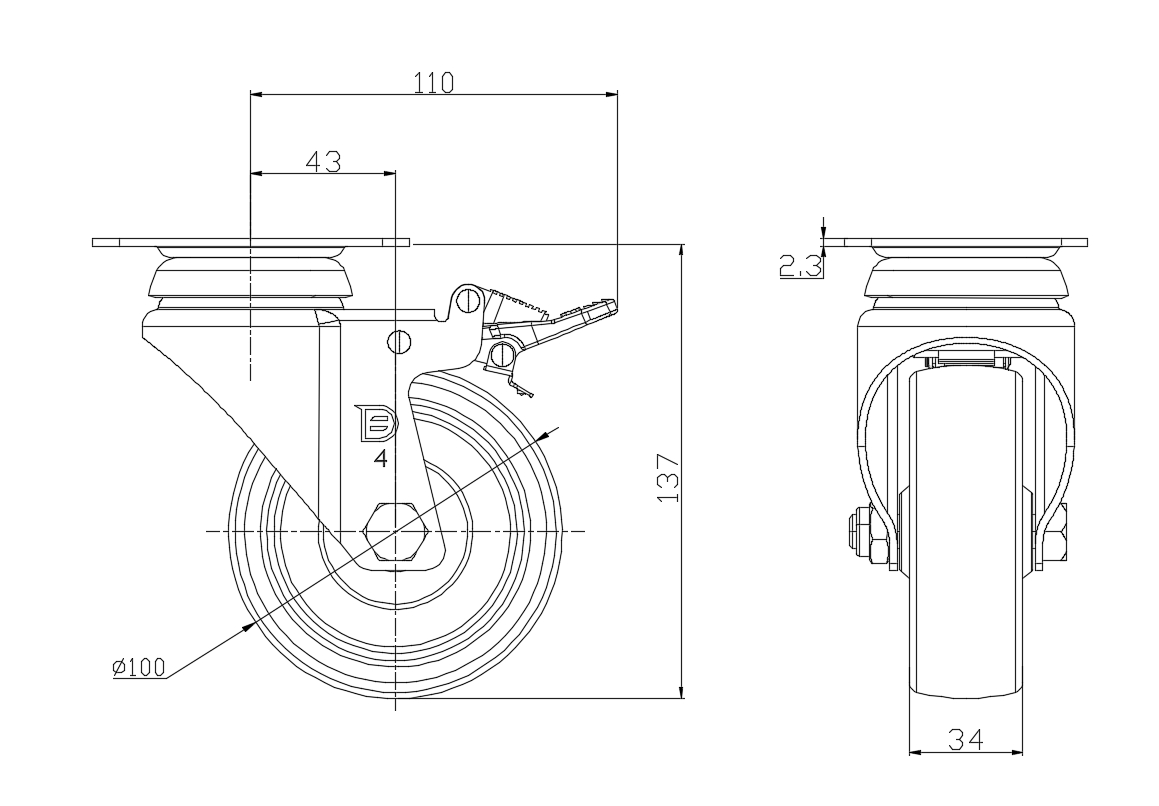

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 95 x 72.5mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 11.3 x 8.8mm　
　　Offset 43mm　
　　Swivel Interference 220mm　
　　Overall Height 137mm　
　　Swivel Radius 110mm　
　　Hardness Of Tread 80±5° Shore D　
　　Load Capacity (Dynamic) 135kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 202.5kgs　
　　Temperature -20°C to +150°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.92kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

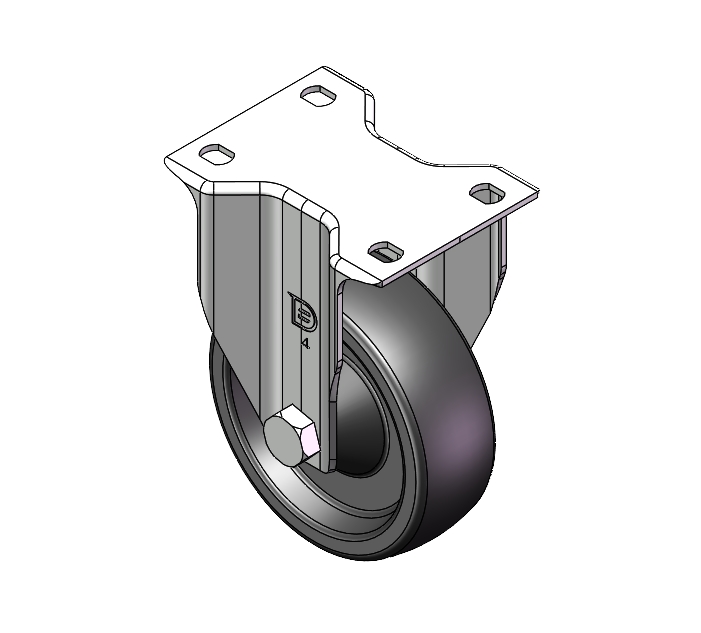

1111 Institutional Caster Series
