    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PU (red) Wheel Diameter × Wheel Width 101 x 50.6mm
　　EAN
　　TW-4111204001020 　　　
　　　　　 　　　

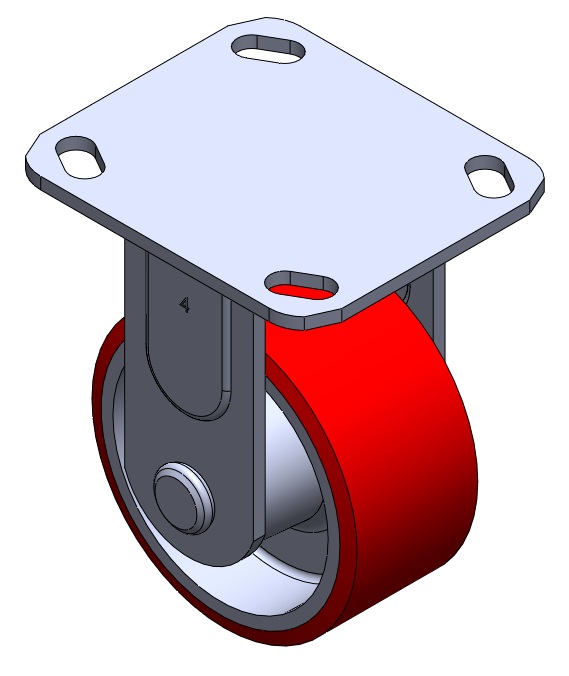

Rigid castor, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type Cast Iron Wheel Center, high quality polyurethane wheel tread Iron red, Bearing - Annual Ball Bearing.
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

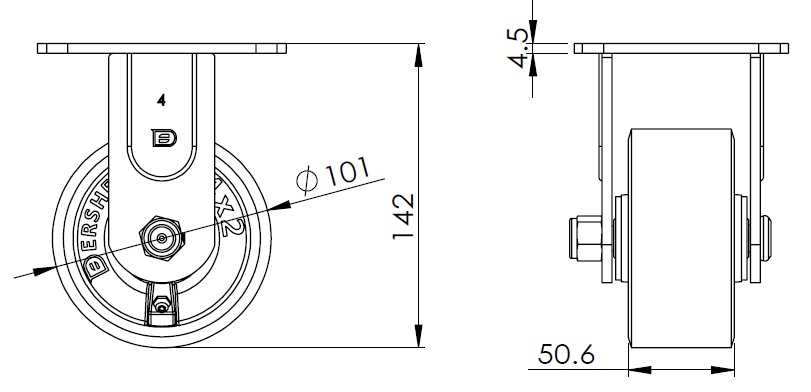

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 101mm　
　　Wheel Width 50.6mm　
　　Wheel Bearing Wheel With Annual Ball Bearing

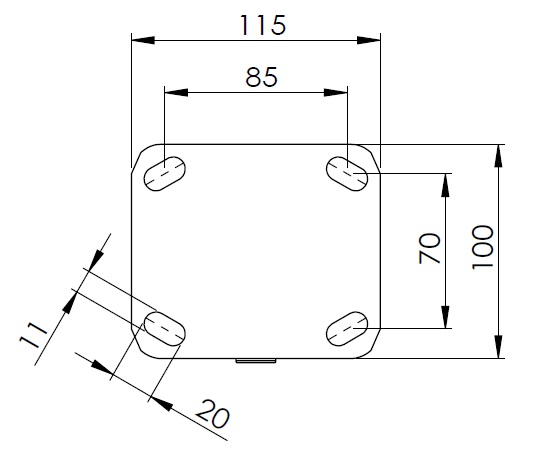

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 54mm　
　　Swivel Interference 260mm　
　　Overall Height 142mm　
　　Swivel Radius 60mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 270kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 405kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.0kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com


　　　　　　　　　　　　關　　聯　　產　　品

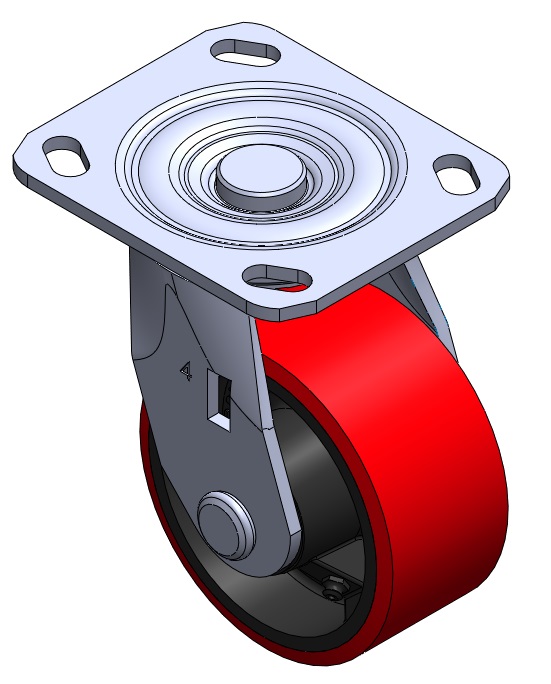

  1112 2" Wide General Purposes Caster Series
