    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PPU (red) Wheel Diameter × Wheel Width 127 x 50mm
　　EAN
　　TW-4111205001022 　　　
　　　　　 　　　

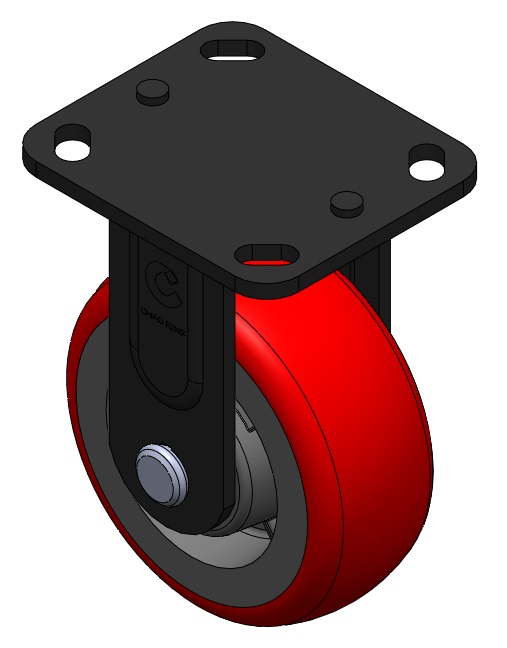

Rigid castor, Welded Caster Fork Surface electroplating, Mounting Type - Top Plate High-quality Impact Resistance Polypropylene Wheel Center, High-Quality Thermoplastic Polyurethanes (TPU) wheel tread Red, Bearing - Ball Bearing.
　　Wheel Tread: high quality thermoplastic rubber polyurethane (TPU)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

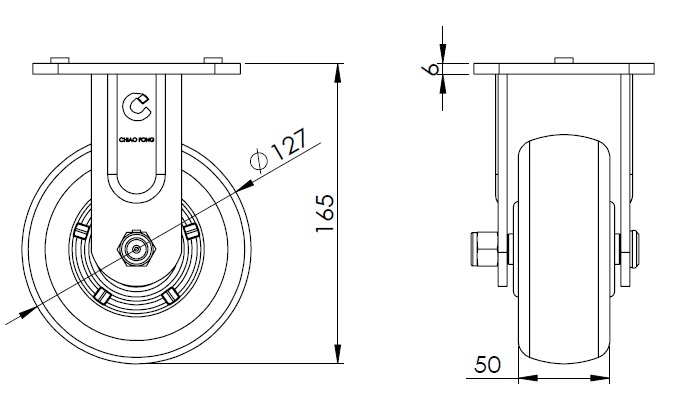

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 127mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

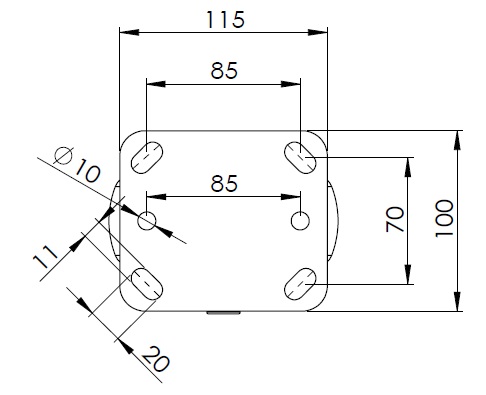

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 165mm　
　　Hardness Of Tread 94±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.80kgs　
　　Standard ISO22883
　　
　　
