Wheel Center: Compressed synthetic resin impregnated with fabric

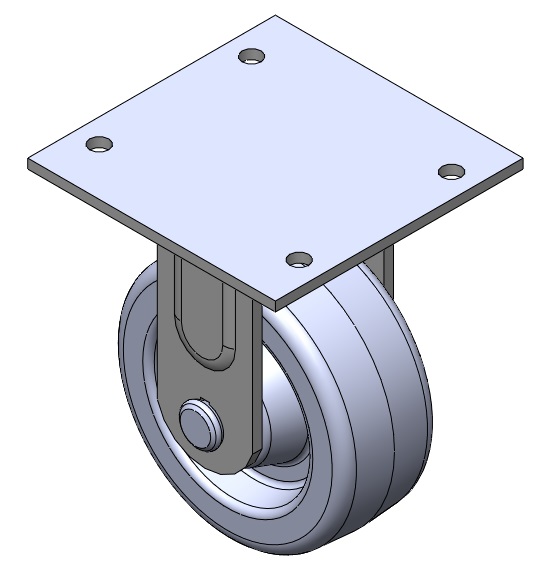

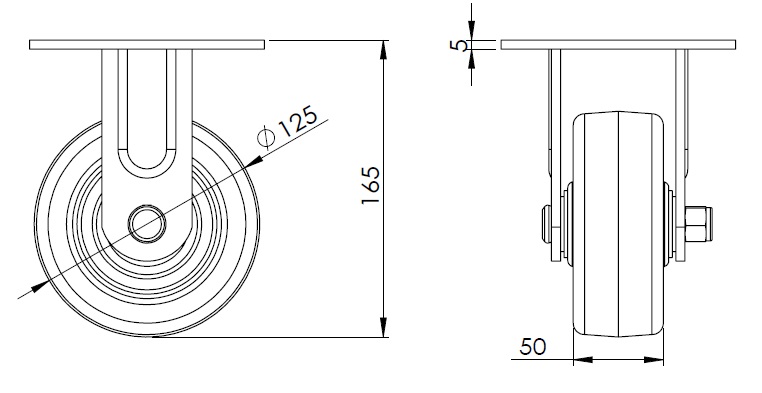

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
50mm
Wheel Bearing
Wheel With Annual Ball Bearing

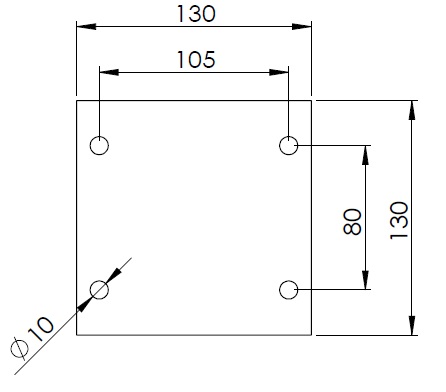

Plate Size
130 x 130mm
Bolt Hole Spacing
105 x 80mm
Plate Hole
10mm
Overall Height
165mm
Hardness Of Tread
80±5° Shore D
Load Capacity (Dynamic)
400kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
600kgs
Temperature
-20°C to +150°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
2.0kgs
Standard
ISO22883
