◄ Back     ⍗ Product Data Sheet (Metric)     ⍗ Product Data Sheet (Imperial)     ⍗ 3D image files

    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PU wheel (green) wheel diameter × wheel width 150 x 50.6mm
　　EAN
　　TW-4111206001003 　　　
　　　　　 　　　

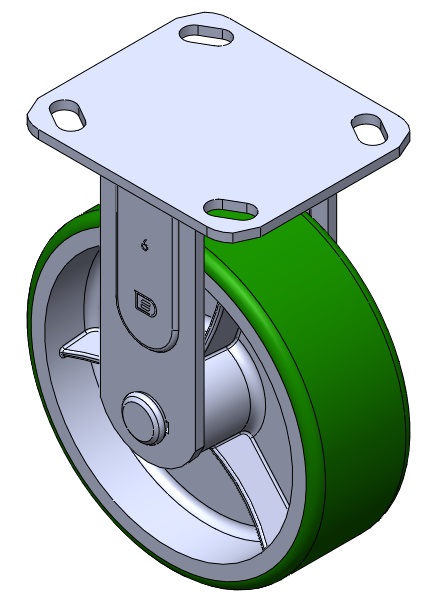

Rigid Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate Cast Iron core with High Quality Polyurethane Wheel Tread Green color, Bearing—Annual Ball Bearings.
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

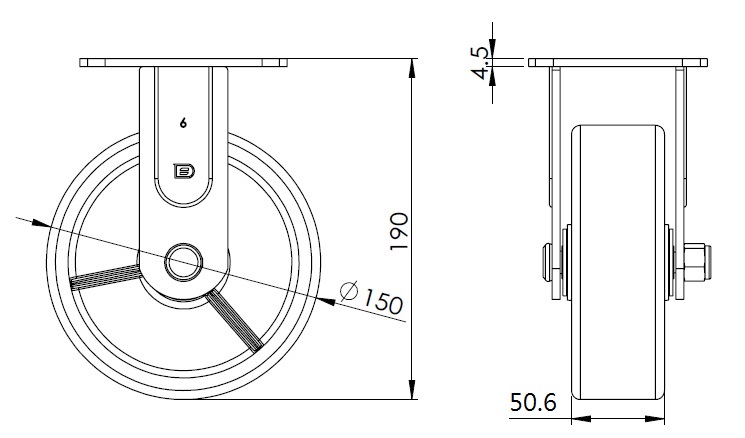

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 50.6mm　
　　Wheel Bearing Wheel With Annual Ball Bearing

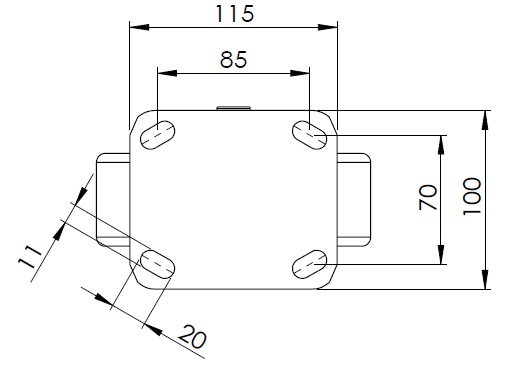

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Overall Height 190mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 410kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 615kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.70kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1112 2" Wide General Purposes Caster Series
PU wheel (green) wheel diameter × wheel width 150 x 50.6mm
TW-4111206004003
150 mm 410 Kgs 190 mm

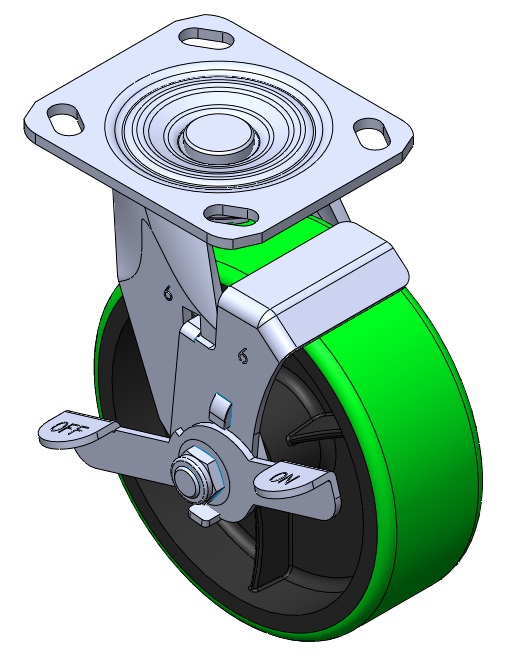

Casters with Side Brakes and With locking system. Welded Caster Fork. Zine-Plated. Mounting Type - Top Plate. Cast Iron core with High Quality Polyurethane Wheel Tread. Green color. Bearings: Ball Bearings.
1112 2" Wide General Purposes Caster Series
PU wheel (green) wheel diameter × wheel width 150 x 50.6mm
TW-4111206004045
150 mm 410 Kgs 190 mm

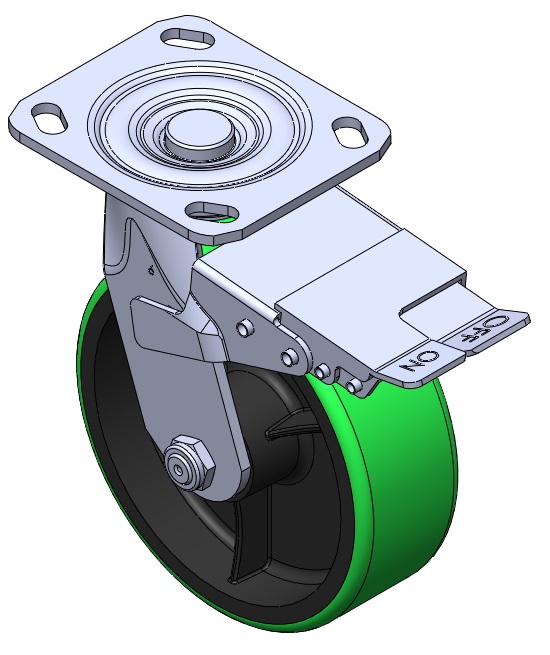

Caster with front brake and With locking system. Welded Caster Fork. Zine-Plated. Mounting Type - Top Plate (with plastic cover). Cast Iron Wheel Center with High Quality Polyurethane Wheel Tread. Green color. Bearings—Annual Ball Bearings.
