    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　PU wheel (green) wheel diameter × wheel width 150 x 50.6mm
　　EAN
　　TW-4111206004045 　　　
　　　　　 　　　
Caster with front brake and With locking system. Welded Caster Fork. Zine-Plated. Mounting Type - Top Plate (with plastic cover). Cast Iron Wheel Center with High Quality Polyurethane Wheel Tread. Green color. Bearings—Annual Ball Bearings.
　　Wheel tread: high quality polyurethane
　　Wheel Center: iron core/cast iron core

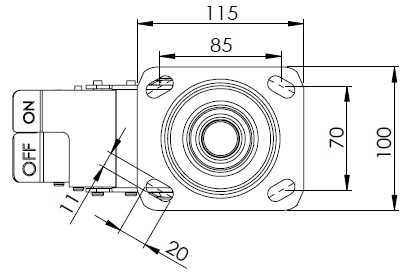

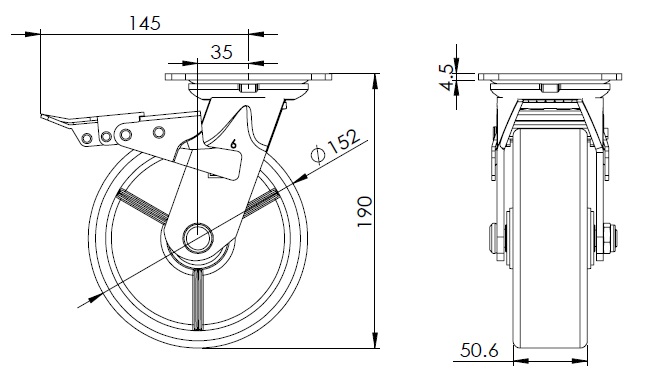

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 50.6mm　
　　Wheel Bearing Wheel With Annual Ball Bearing
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 35mm　
　　Swivel Interference 290mm　
　　Overall Height 190mm　
　　Swivel Radius 145mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 410kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 615kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.60kgs　
　　Standard ISO22883
　　
　　
