    Product Data Sheet
1112 2" Wide General Purposes Caster Series
　　WHDR (red and black) Wheel Diameter × Wheel Width 127 x 50mm
　　EAN
　　TW-4111205004058 　　　
　　　　　 　　　
Casters with a front brake and With locking system. Welded Caster Fork. Electroplated surface. Mounting Type - Top Plate. High-Quality Impact-Resistant Polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread. Red and black. Bearings—Annual Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

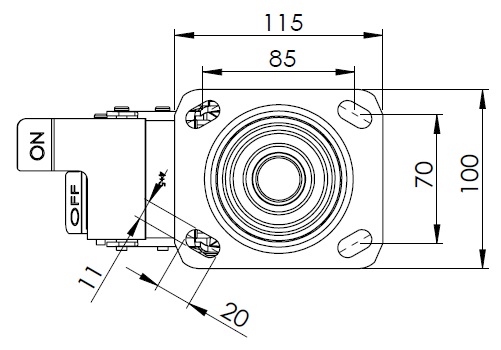

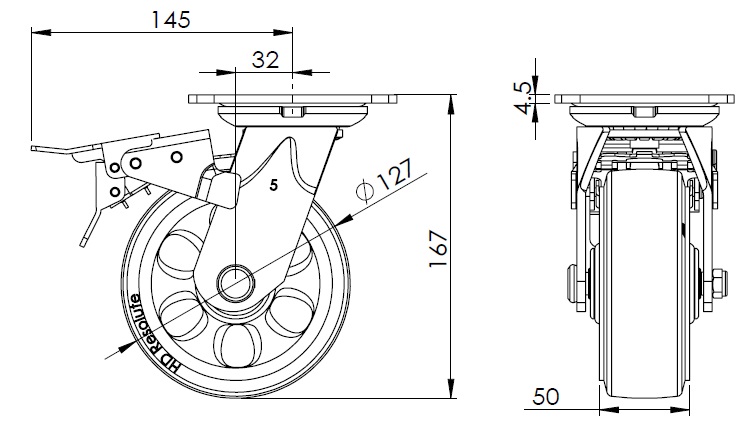

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 127mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheel With Annual Ball Bearing
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 32mm　
　　Swivel Interference 290mm　
　　Overall Height 167mm　
　　Swivel Radius 145mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 340kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 510kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.60kgs　
　　Standard ISO22883
　　
　　
