    Product Data Sheet
1115-1 Economy -1 Spring Wheel Series
　　NBR (milling black) Wheel Diameter x Wheel Width 150 x 40mm
　　EAN
　　　　　 KS-11150601041151B
　　　　　 　　　
Rigid Caster, Welded Caster Fork, blue-painted finish
Mounting Type - Top Plate, 105x78.5 Bolt Hole Spacing
Cast Iron core, High Quality Polyurethane Wheel Tread
Cast Iron black, Bearing—Ball Bearings
　　Wheel surface: Made of high-quality and highly elastic rubber
　　Wheel Center: iron core/cast iron core

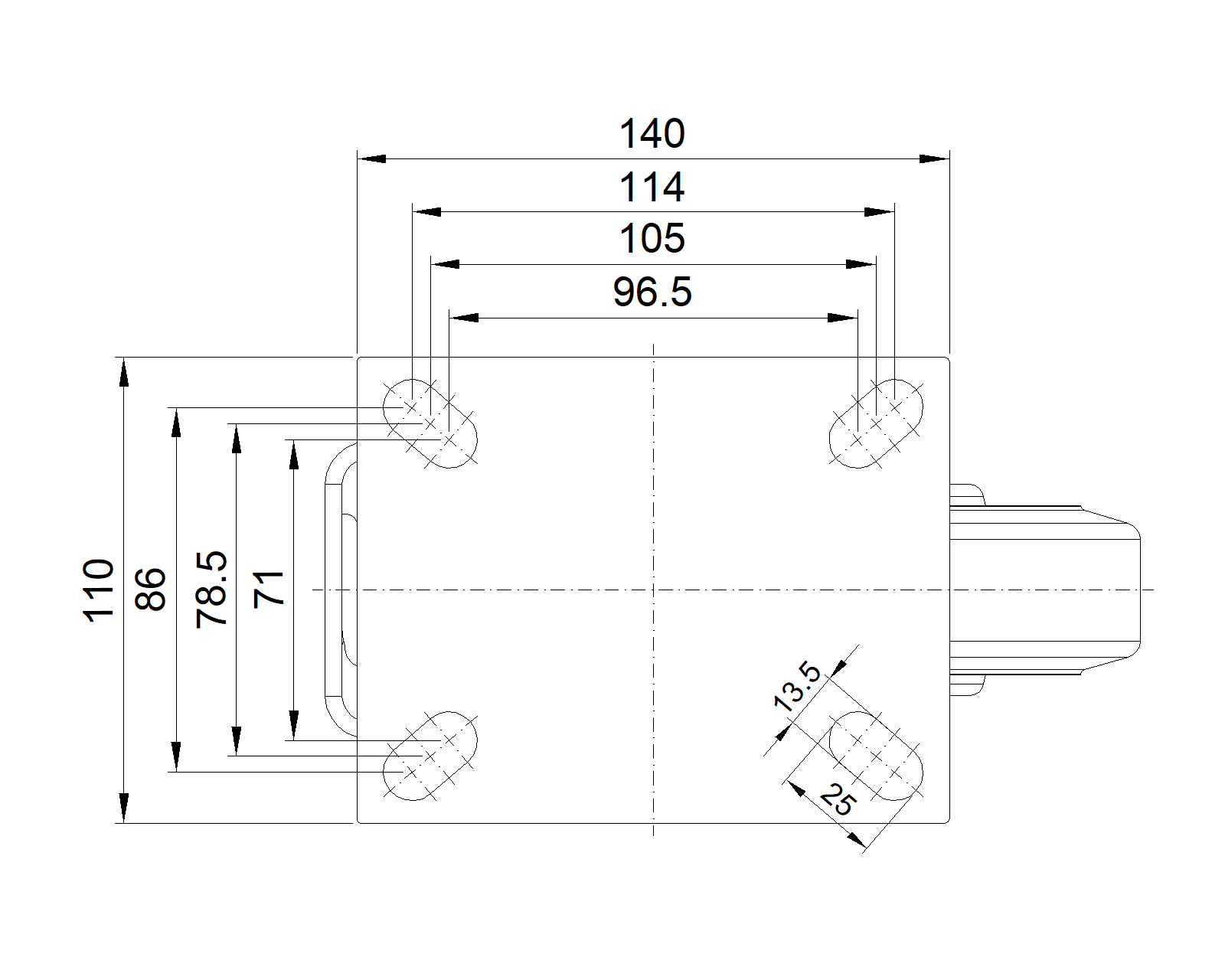

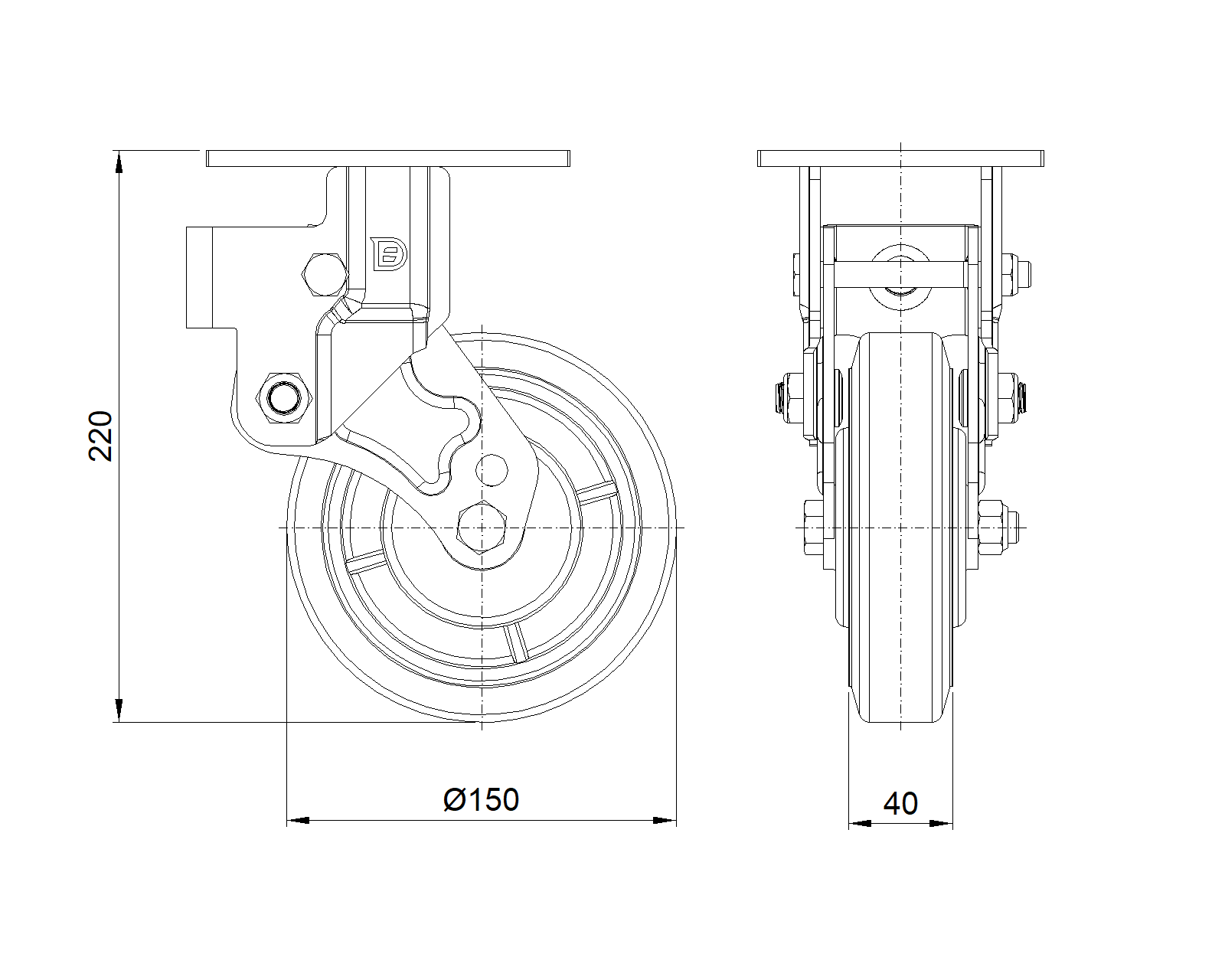

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 105 x 78.5mm　
　　Plate Hole 25 x 13.5mm　
　　Overall Height 220mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.82kgs　
　　Standard ISO22883
　　
　　
