    Product Data Sheet
1115-1 Economy -1 Spring Wheel Series
　　NBR (milling black) Wheel Diameter x Wheel Width 150 x 40mm
　　EAN
　　　　　 KS-11150601044151B
　　　　　 　　　

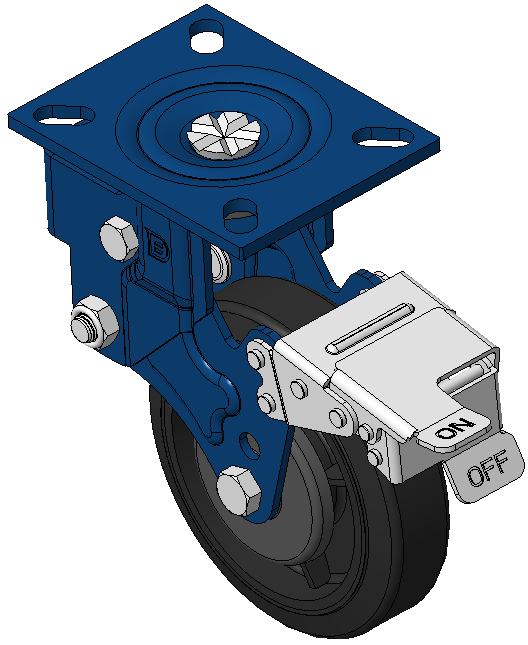

Spring-loaded Casters with front brake and With locking system, Welded Caster Fork.
Blue-painted finish, Mounting Type - Top Plate, 105 x 78.5 Bolt Hole Spacing.
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron black.
Bearings—Ball Bearings.
　　Wheel surface: Made of high-quality, highly elastic rubber
　　Wheel Center: iron core/cast iron core

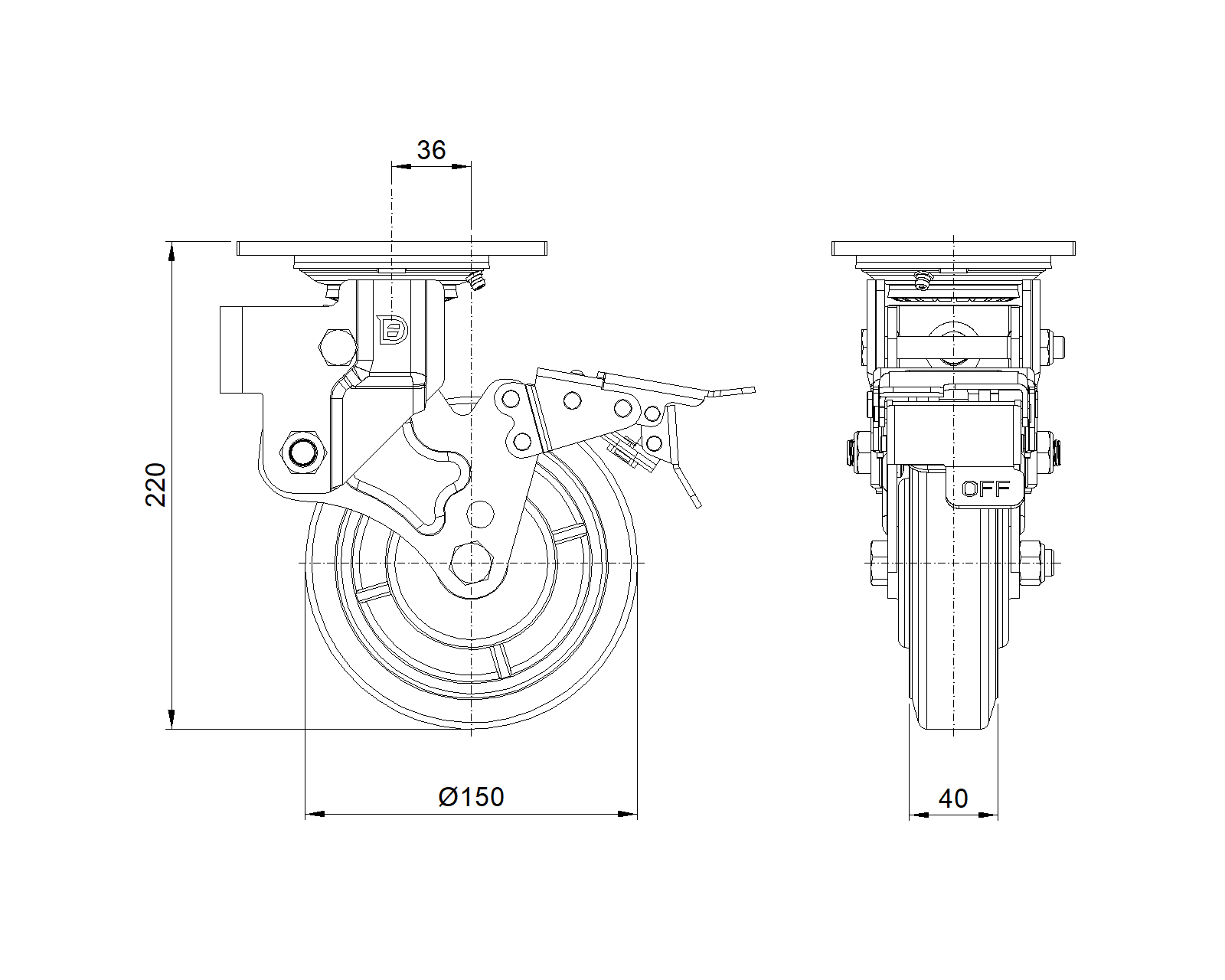

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

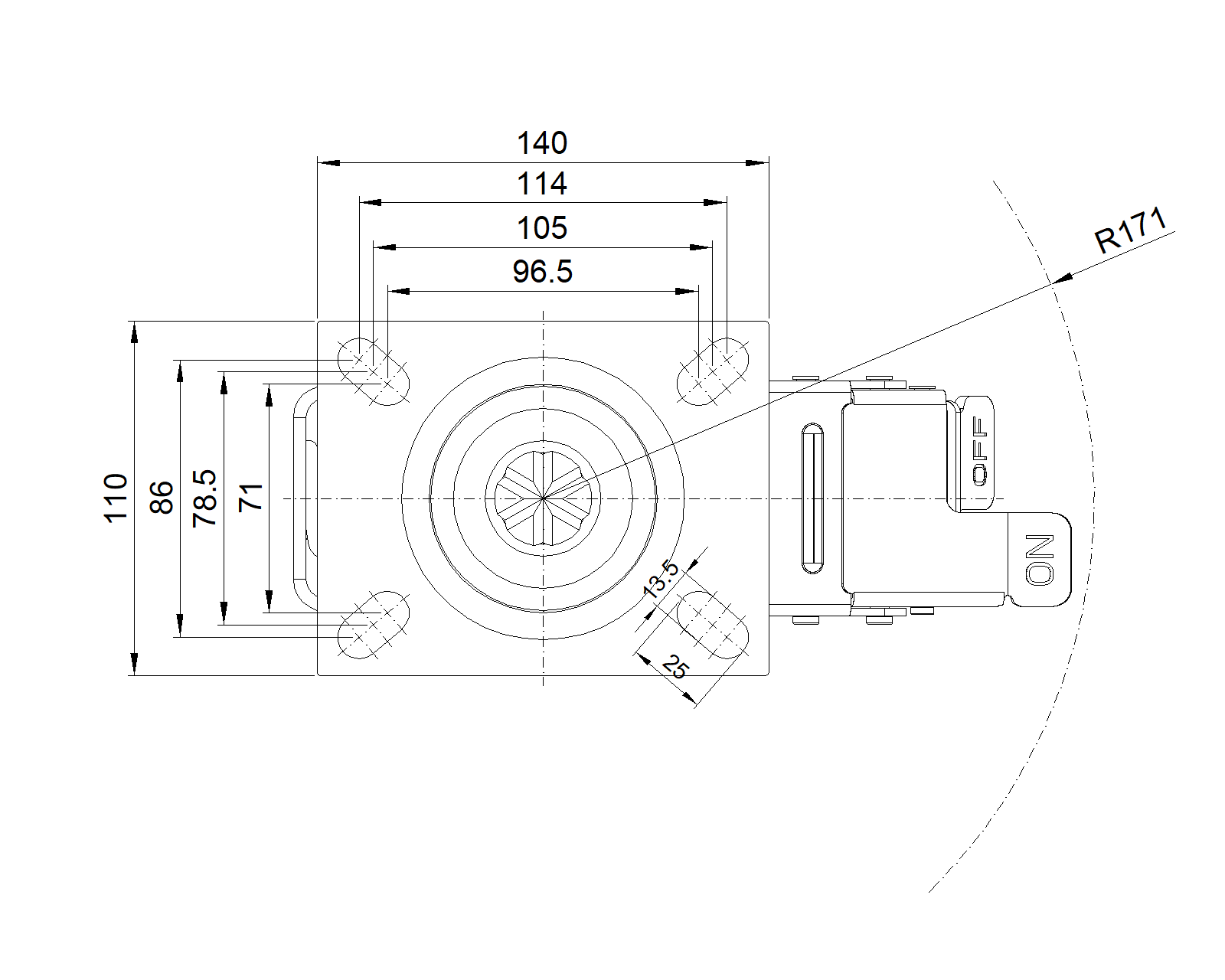

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 105 x 78.5mm　
　　Plate Hole 25 x 13.5mm　
　　Offset 36mm　
　　Swivel Interference 342mm　
　　Overall Height 220mm　
　　Swivel Radius 171mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 5.27kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

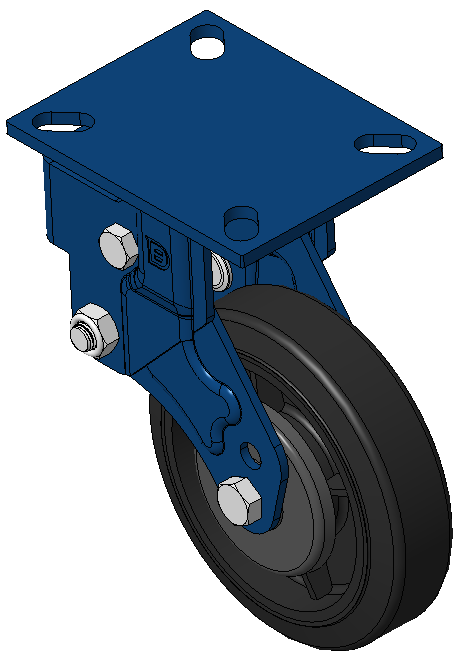

1115-1 Economy -1 Spring Wheel Series
