    Product Data Sheet
1115 Spring-loaded Caster Series (Regular)
　　QPU (brown round) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 KS-11150400531261
　　　　　 　　　
Rigid, Spring-loaded Caster with Welded Caster Fork, blue-painted finish.
Mounting Type - Top Plate, 110x75 Bolt Hole Spacing.
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron brown.
Bearings—Ball Bearings.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

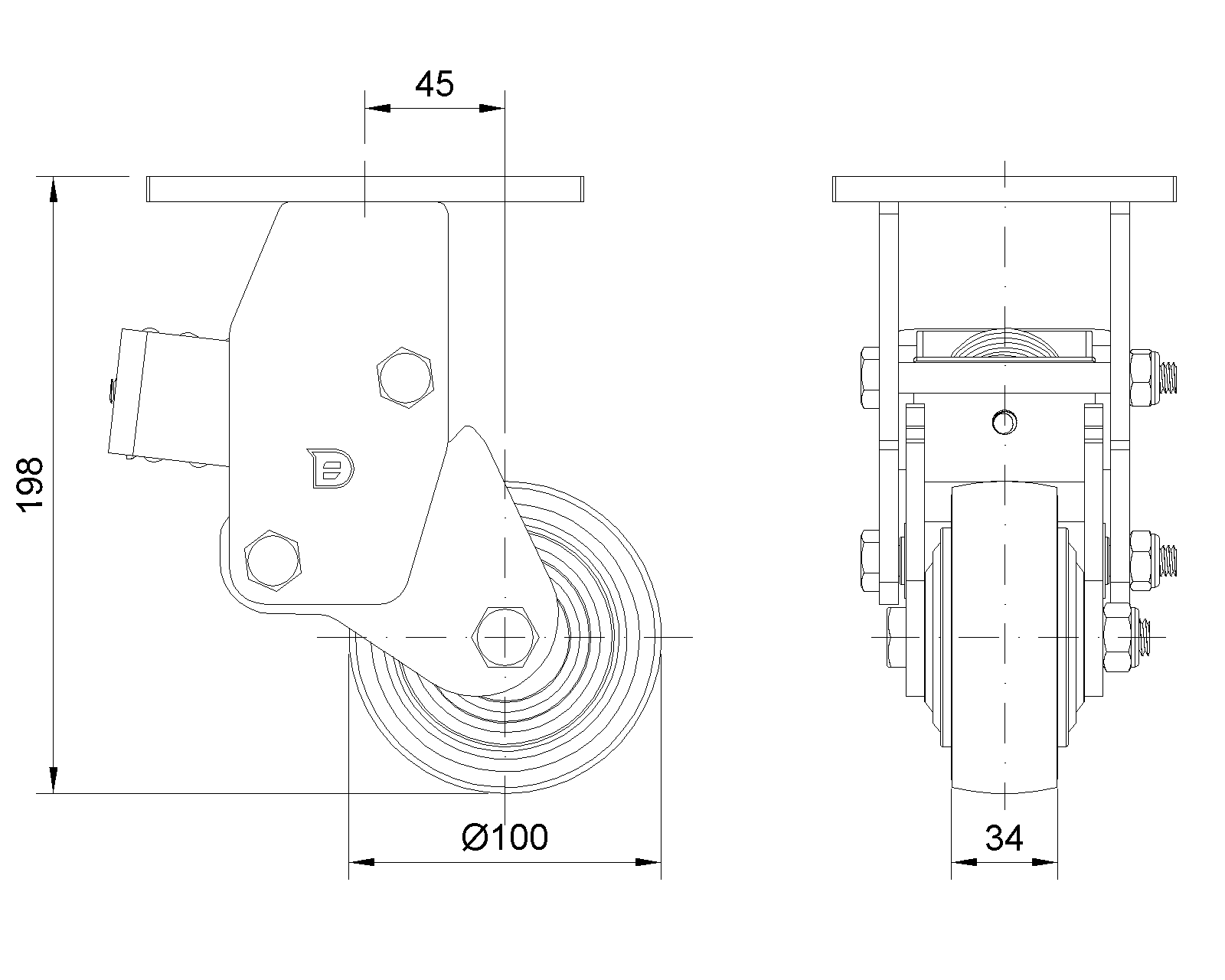

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings

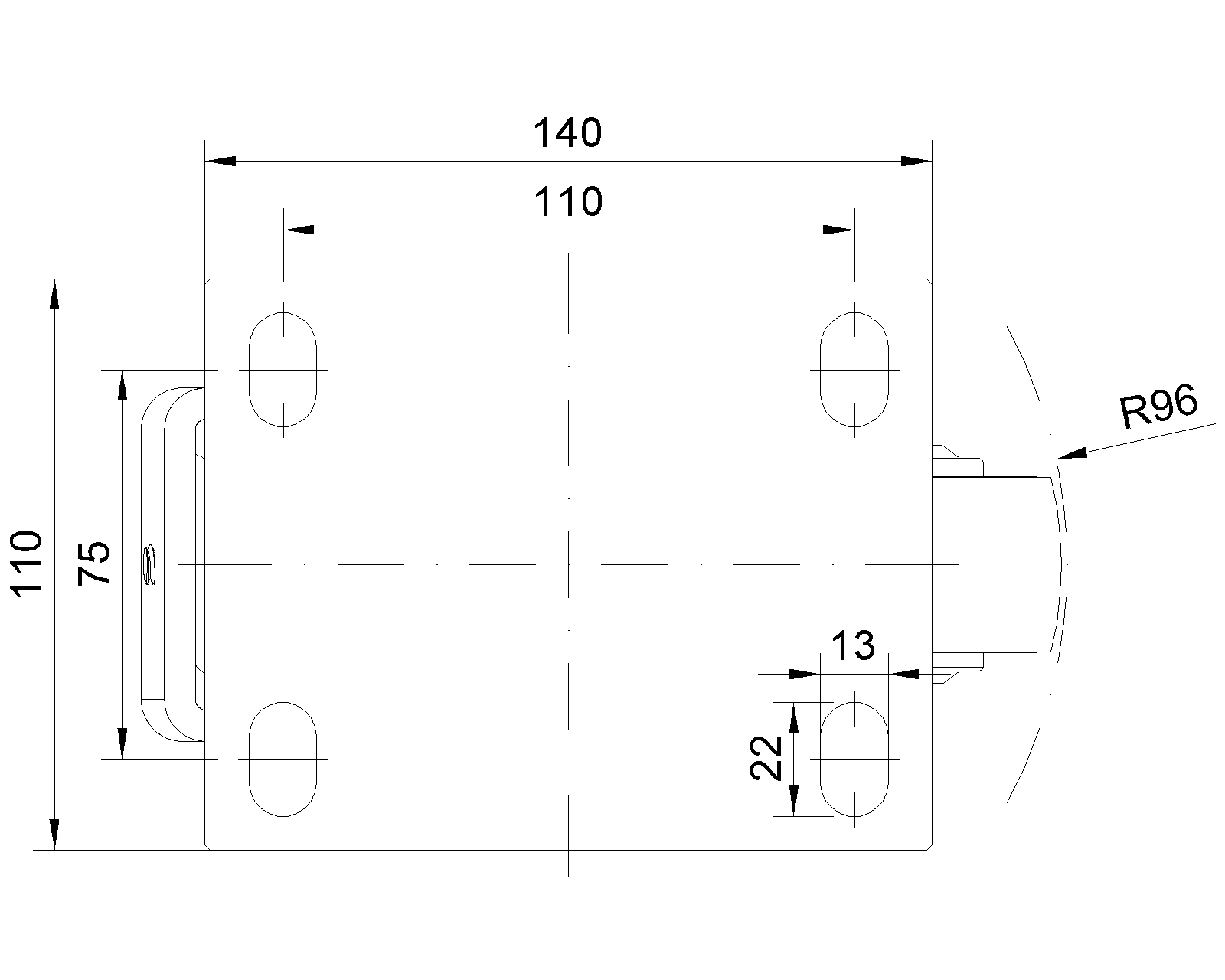

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 2213mm　
　　Offset 45mm　
　　Swivel Interference 192mm　
　　Overall Height 198mm　
　　Swivel Radius 96mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.53kgs　
　　Standard ISO22883
　　
　　
