    Product Data Sheet
1115 Spring-loaded Caster Series (Regular)
　　QPU (brown round) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 KS-111150400532261
　　　　　 　　　

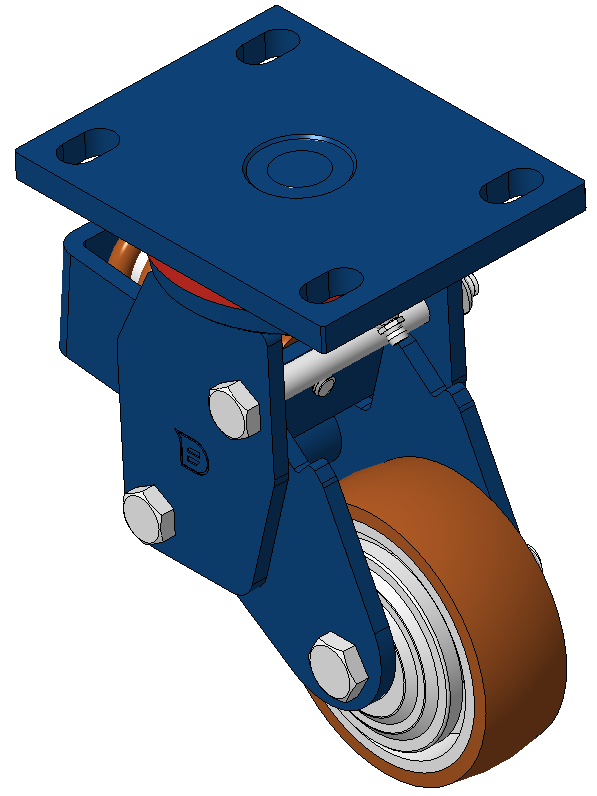

Spring-loaded Caster with Welded Caster Fork, blue painted finish.
Mounting Type - Top Plate, 110x75 Bolt Hole Spacing.
Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron brown.
Bearing – Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

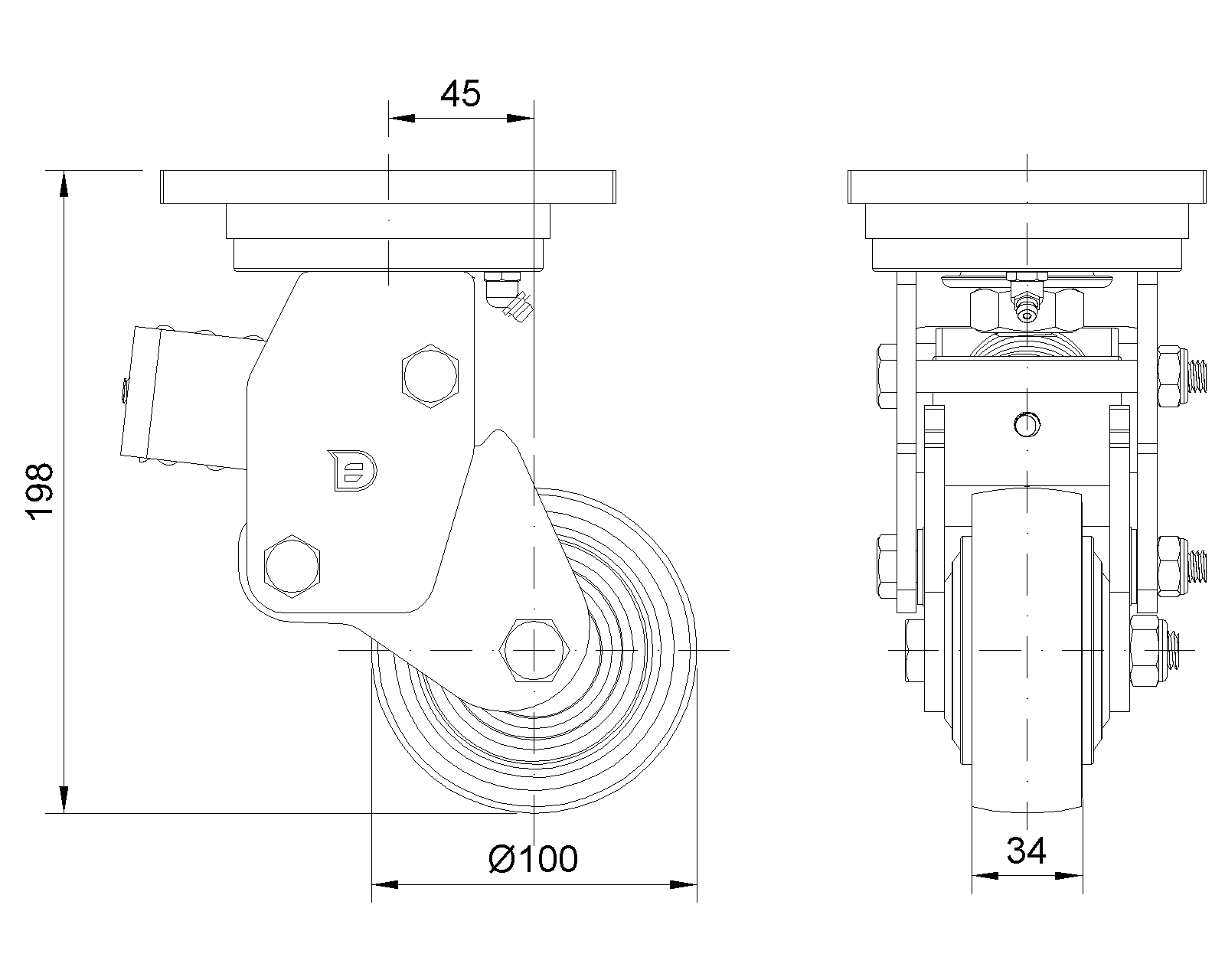

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings

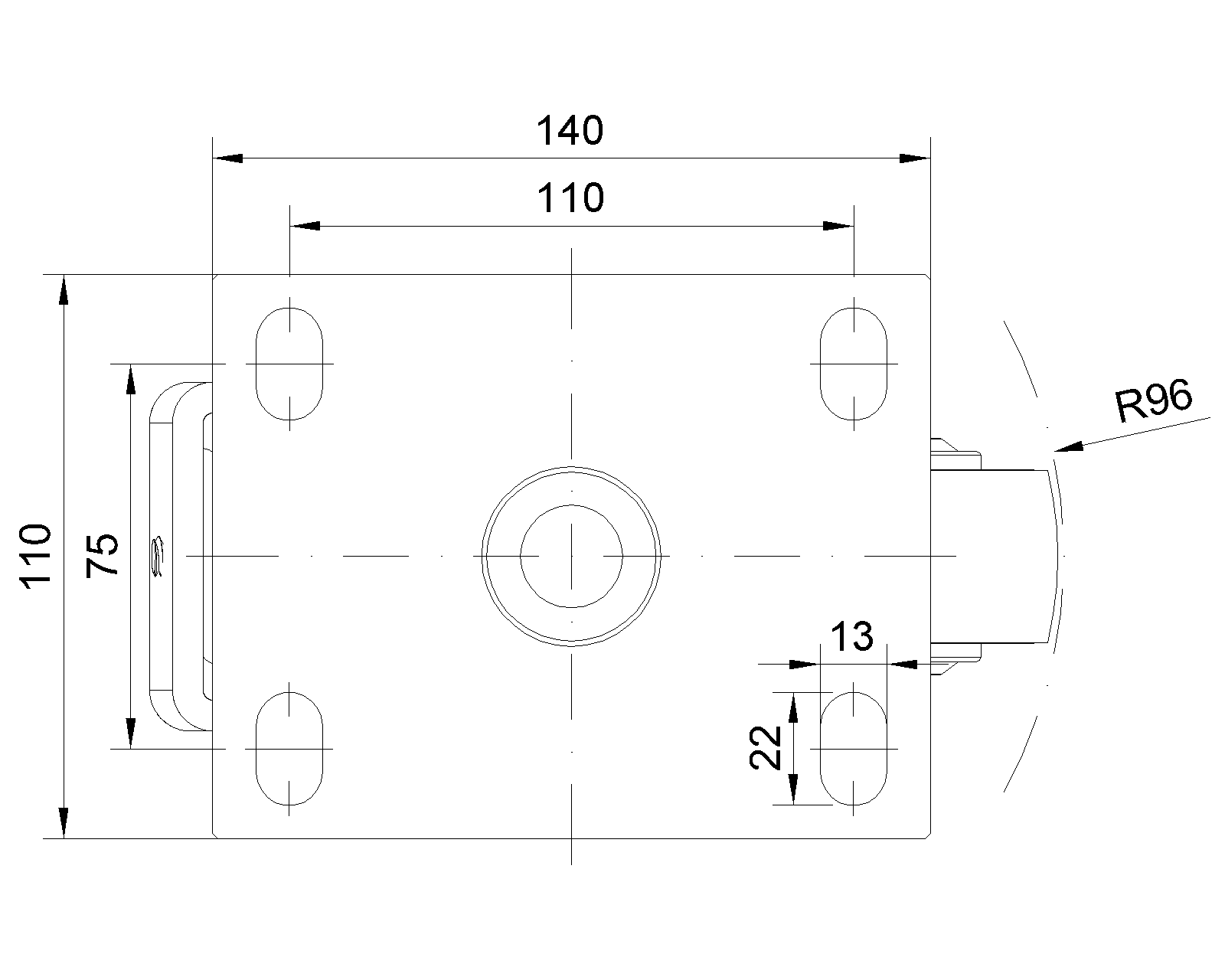

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 2213mm　
　　Offset 45mm　
　　Swivel Interference 192mm　
　　Overall Height 198mm　
　　Swivel Radius 96mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 5.49kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1115 Spring-loaded Caster Series (Regular)
QPU (brown round) Wheel Diameter × Wheel Width 100 x 34mm
KS-11150400531261
100 mm 250 Kgs 198 mm

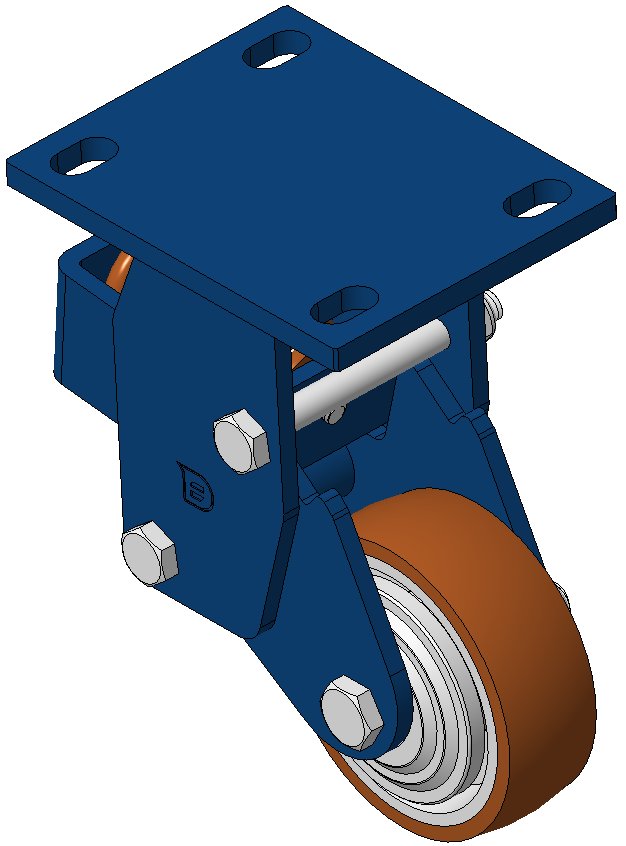

Rigid, Spring-loaded Caster with Welded Caster Fork, blue-painted finish.
