    Product Data Sheet
1115 Spring-loaded Caster Series (Regular)
　　VQPU (brown round) Wheel Diameter x Wheel Width 250 x 62mm
　　
　　　　　 KS-11151000541561
　　　　　 　　　

Rigid Spring-loaded Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 140x85 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread
Cast Iron brown, Bearing – Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

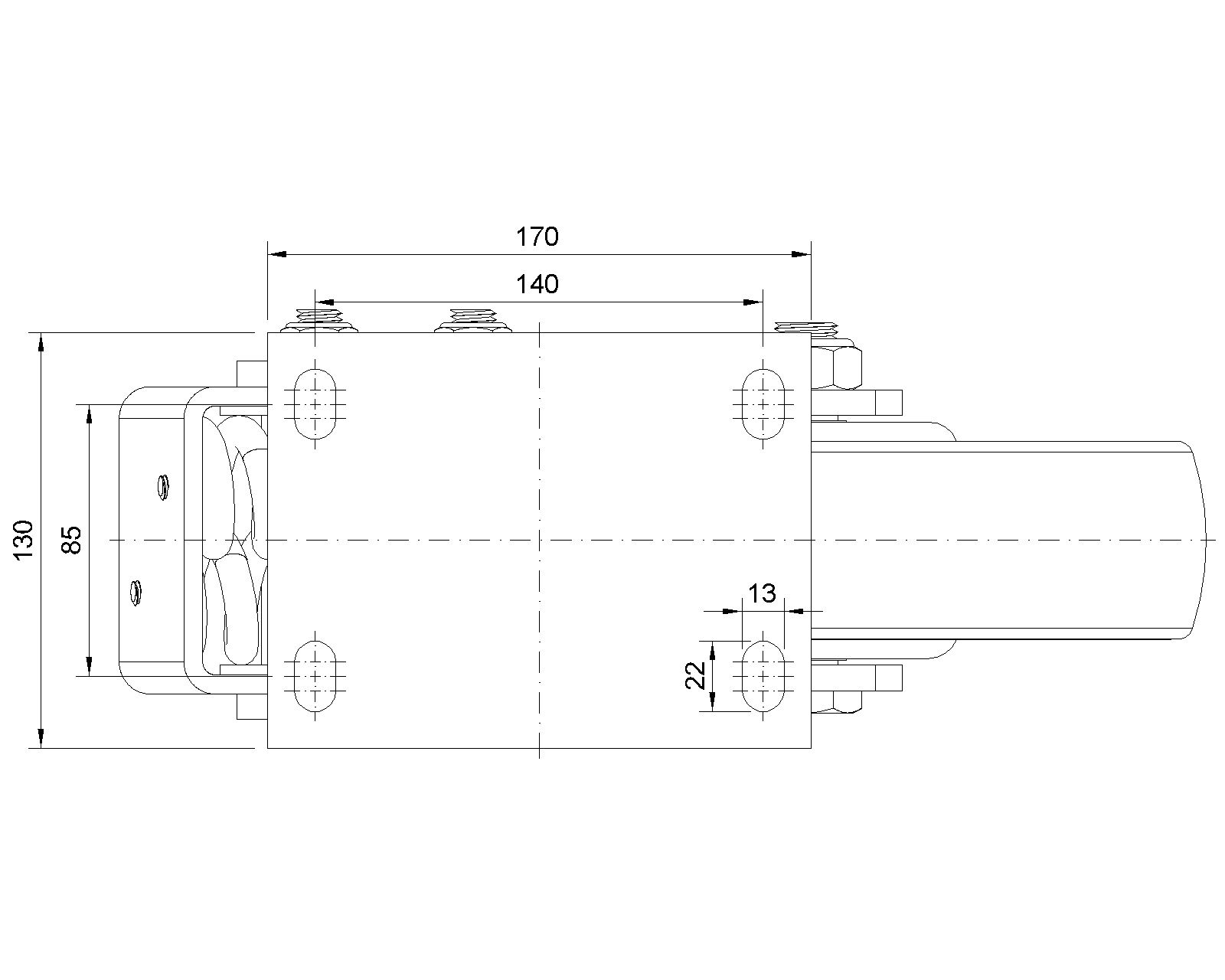

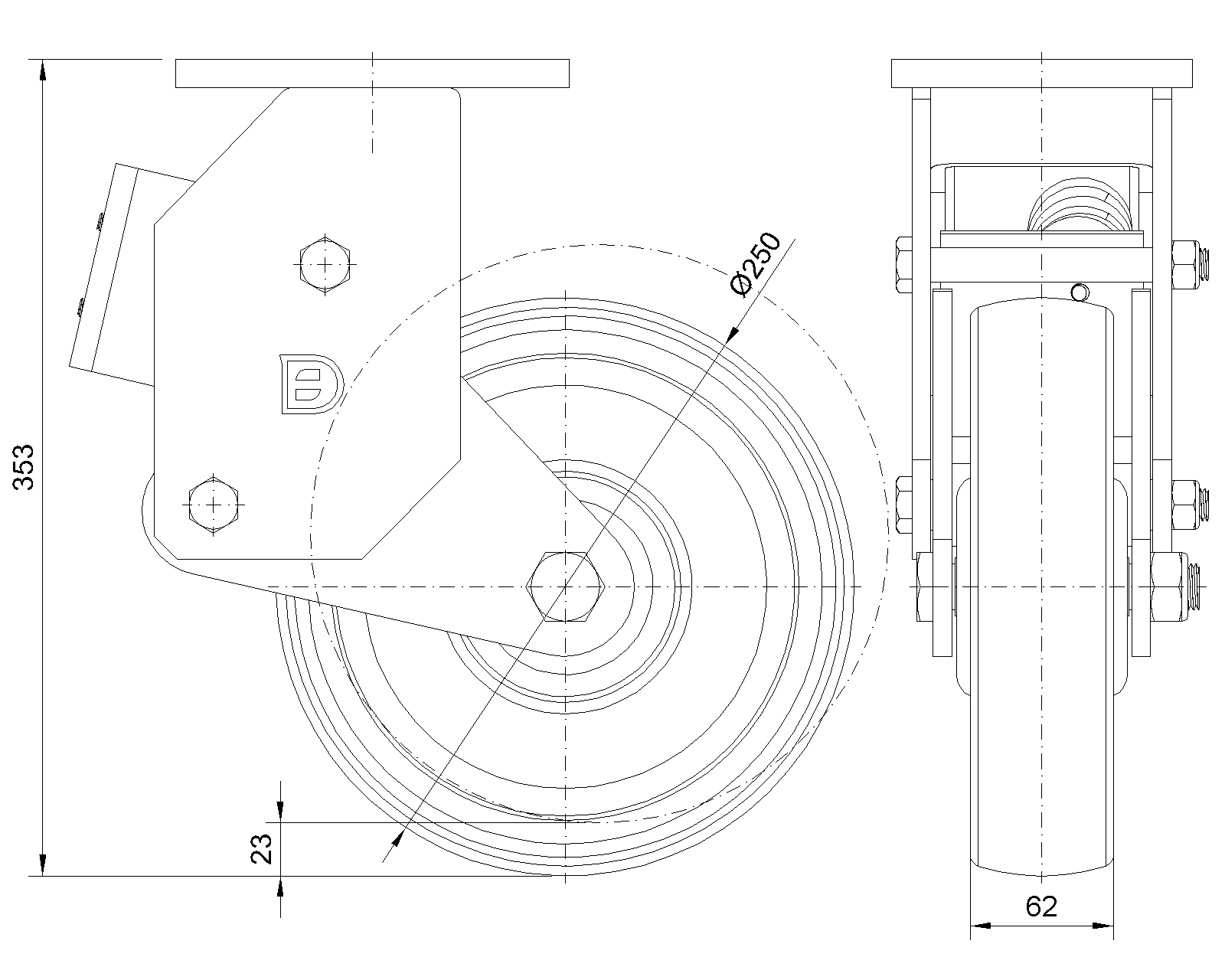

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 250mm　

　　Wheel Width 62mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 170 x 130mm　
　　Bolt Hole Spacing 140x85mm　
　　Plate Hole 22 x 13mm　
　　Overall Height 353mm　
　　Hardness Of Tread ° Shore A　
　　Load Capacity (Dynamic) 600kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 900kgs　
　　Temperature
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 14.68kgs　
　　Standard ISO22883
　　
　　
