    Product Data Sheet
1115 Spring-loaded Caster Series (Regular)
　　VQPU (brown round) Wheel Diameter x Wheel Width 250 x 62mm
　　A
　　　　　 KS-11151000544561
　　　　　 　　　
Spring-loaded Caster with rear brake, Welded Caster Fork Blue painted finish, Mounting Type - Top Plate, 140x85 Bolt Hole Spacing Cast Iron core, High Quality Polyurethane Wheel Tread Cast Iron brown, Bearing – Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

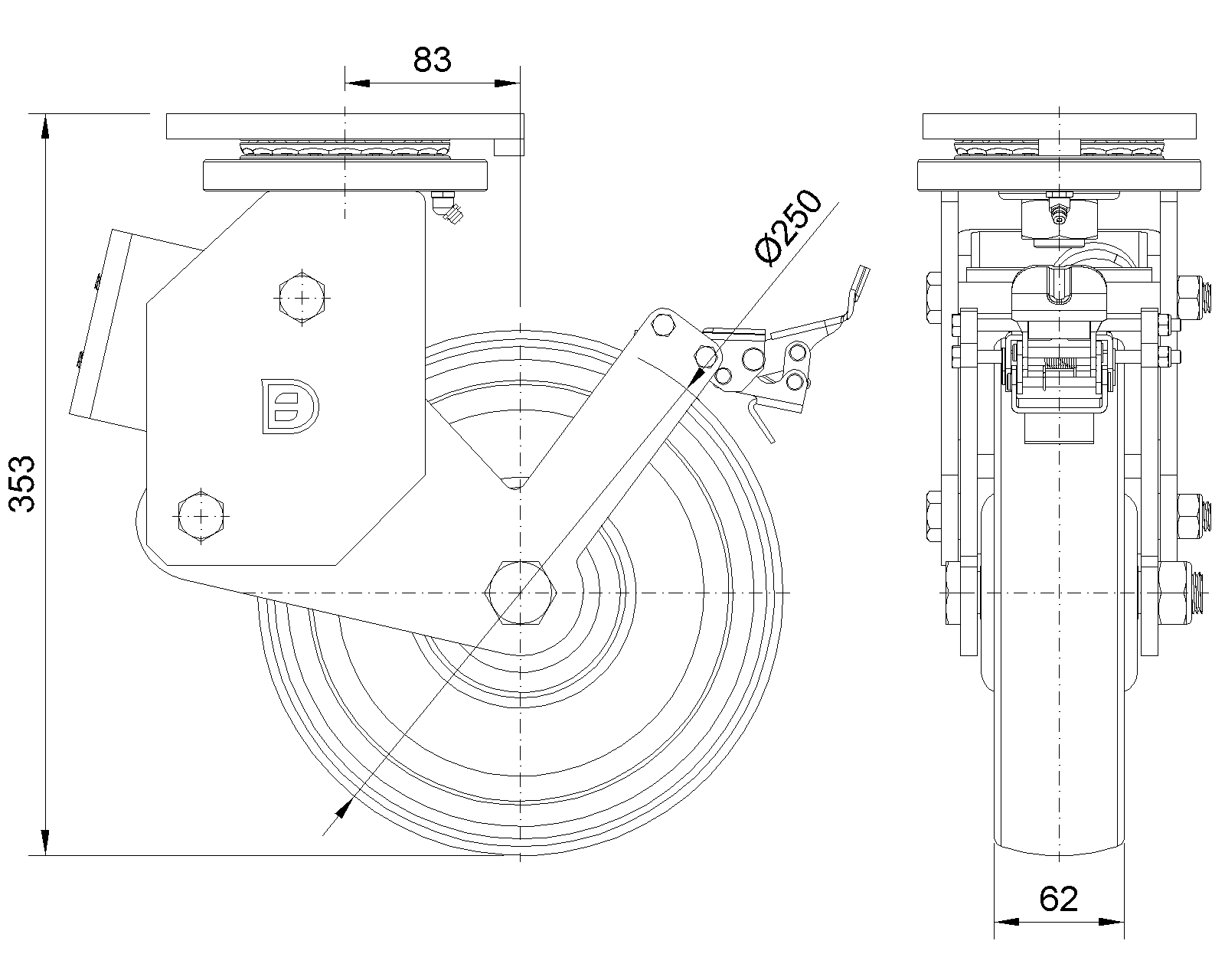

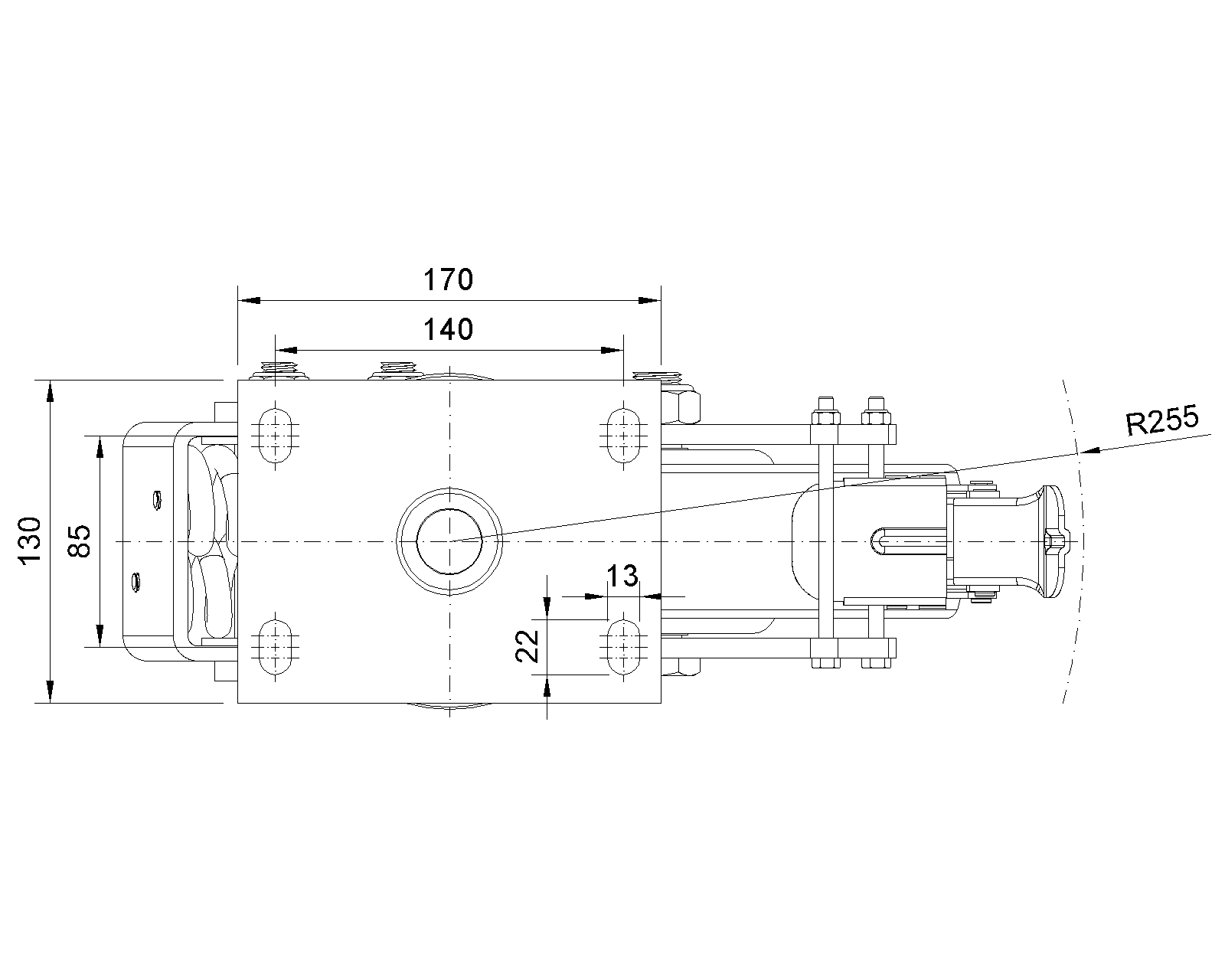

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 250mm　

　　Wheel Width 62mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 170 x 130mm　
　　Bolt Hole Spacing 140x85mm　
　　Plate Hole 22 x 13mm　
　　Offset 83mm　
　　Swivel Interference 510mm　
　　Overall Height 353mm　
　　Swivel Radius 255mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 600kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 900kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 17.06kgs　
　　Standard ISO22883
　　
　　
