    Product Information Sheet
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　PU Wheel Diameter × Wheel Width 75 x 32mm
　　EAN
　　TW-4111603001005 　　　
　　　　　 　　　
Rigid Casters, Stamping Fabricated Caster Fork — high-grade perforated design Surface vibration, Mounting Type - Top Plate device Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread Cast Iron red, Bearing — Ball Bearings.
　　Wheel surface: High-quality polyurethane
　　Wheel Center: Iron core / Cast iron core

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Overall Height 112.5mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 125kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 187.5kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.70kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
PU Wheel Diameter × Wheel Width 75 x 32mm
TW-4111603002005
75 mm 160 Kgs 113 mm
Swivel Casters, Riveted and Stamping Top Plate. Surface vibration, Mounting Type - Top Plate device. Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread. Red, Bearing—Ball Bearings.
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
PU Wheel Diameter × Wheel Width 75 x 32mm
TW-4111603002079
75 mm 125 Kgs 113 mm
Swivel Casters, Riveted and Stamping Top Plate with high-grade perforations. Surface vibration protection, Mounting Type - Top Plate. Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread. Red color, Bearing—Ball Bearings.
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
PU Wheel Diameter × Wheel Width 75 x 32mm
TW-4111603004005
75 mm 125 Kgs 113 mm

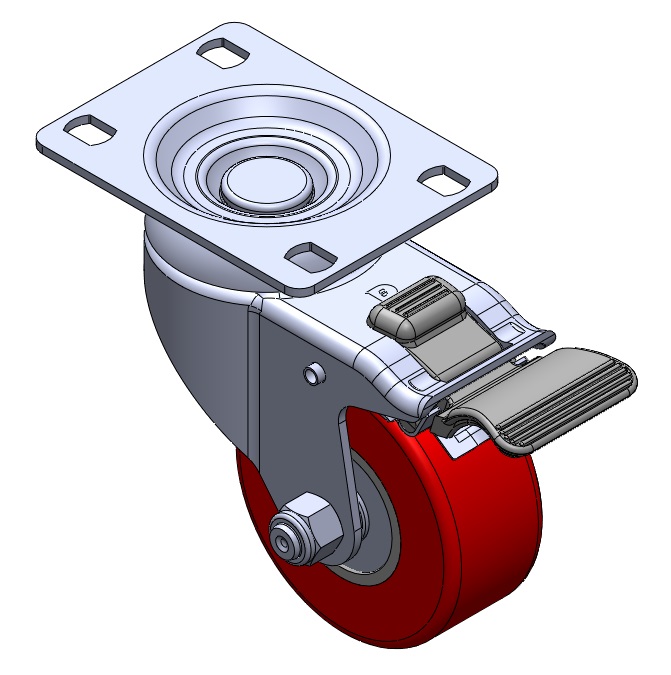

Equipped with double-brake locking Casters. Riveted and Stamping Top Plate legs with high-grade perforations. Surface vibration, Mounting Type - Top Plate. Cast Iron Wheel Centers with High Quality Polyurethane Wheel Treads. Red Bearing—Ball Bearings.
