◄ Back     ⍗ Product Data Sheet (Metric)     ⍗ Product Data Sheet (Imperial)     ⍗ 3D image files

    Product Information Sheet
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　PU Wheel Diameter × Wheel Width 75 x 32mm
　　EAN
　　TW-4111603004005 　　　
　　　　　 　　　
Equipped with double-brake locking Casters. Riveted and Stamping Top Plate legs with high-grade perforations. Surface vibration, Mounting Type - Top Plate. Cast Iron Wheel Centers with High Quality Polyurethane Wheel Treads. Red Bearing—Ball Bearings.
　　Wheel surface: High-quality polyurethane
　　Wheel Center: Iron core/Cast iron core

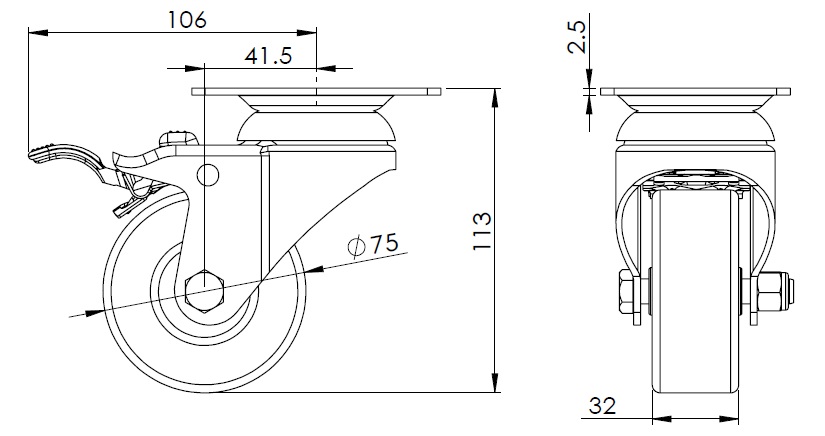

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheel With Annual Ball Bearing
　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Offset 41.5mm　
　　Swivel Interference 212mm　
　　Overall Height 113mm　
　　Swivel Radius 106mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 125kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 187.5kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.90kgs　
　　Standard ISO22883
　　
　　
