    Product Information Sheet

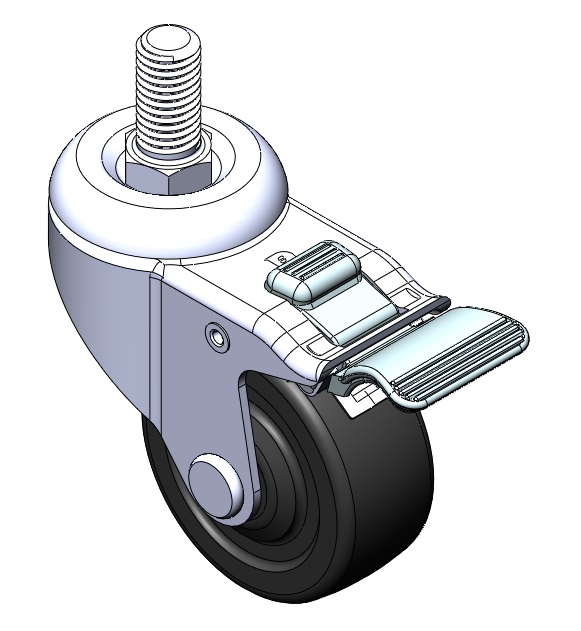

1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　Rubber Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4111603004010 　　　
　　　　　 　　　
Equipped with double-brake With locking system Casters. Stamping feet with Riveted cores—5/8"-11 teeth. Surface vibration resistant, Mounting Type - Threaded Stem. High-Quality Resilient Rubber Wheel Center and rim. Black, Plain Bearings.
　　Wheel surface: High-quality elastic rubber
　　Wheel Center: High-quality elastic rubber

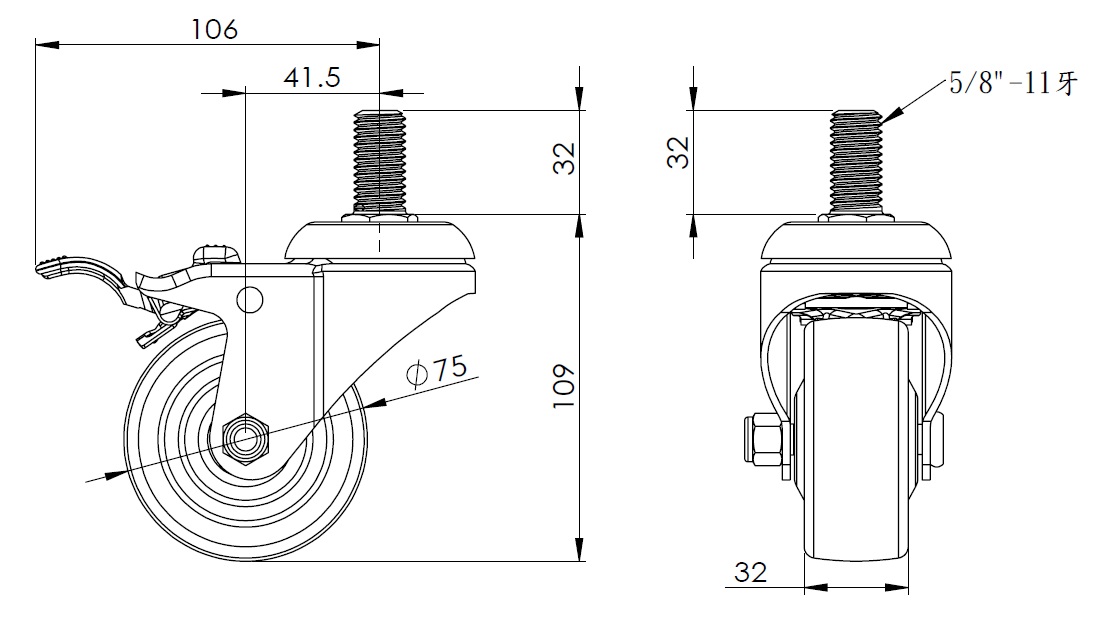

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing

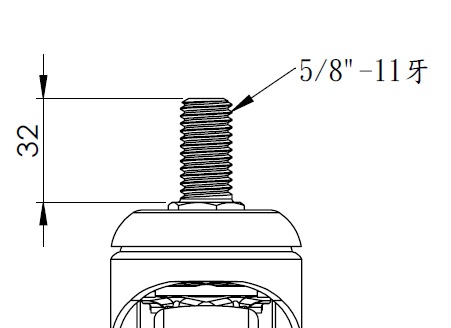

　　Threaded Stem 5/8＂-11牙
　　Threaded Length 28mm
　　Offset 41.5mm　
　　Swivel Interference 212mm　
　　Overall Height 109mm　
　　Swivel Radius 106mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.65kgs　
　　Standard ISO22883
　　
　　
