    Product Information Sheet
1116-SS-MJ Medium Duty Stainless Steel Caster Series
　　PU Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　TW-4111604002015 　　　
　　　　　 　　　
Swivel Casters, Riveted and Stamping Top Plate. Surface vibration, Mounting Type - Top Plate device. Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread. Red color, Bearing—Ball Bearings.
　　Wheel surface: High-quality polyurethane
　　Wheel Center: Iron core / Cast iron core

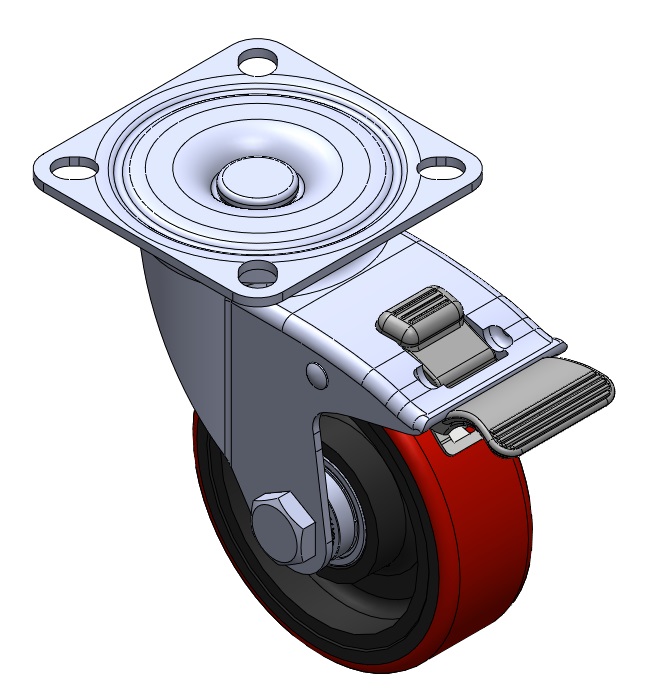

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 91 x 91mm　
　　Bolt Hole Spacing 70 x 70mm　
　　Plate Hole 13 x 10.5mm　
　　Offset 42mm　
　　Swivel Interference 184mm　
　　Overall Height 134.5mm　
　　Swivel Radius 92mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 135kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 202kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.40kgs　
　　Standard ISO22883
　　
　　
