1116-SS-MJ Medium Duty Stainless Steel Caster Series
　　PU Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　TW-4111604004025 　　　
　　　　　 　　　
　　
　　

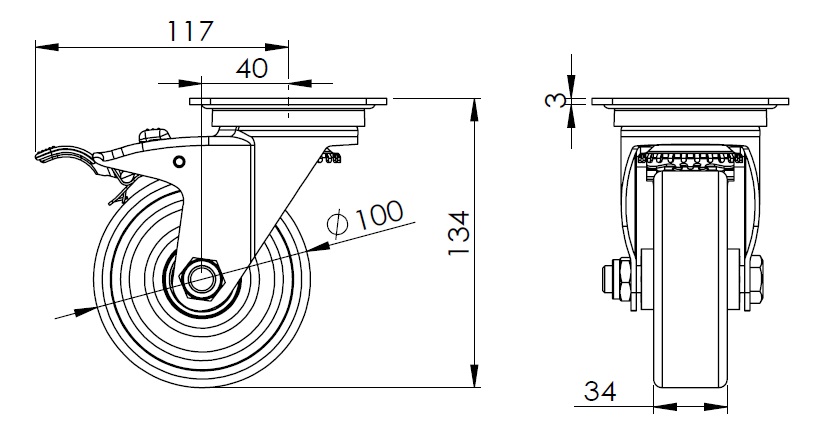

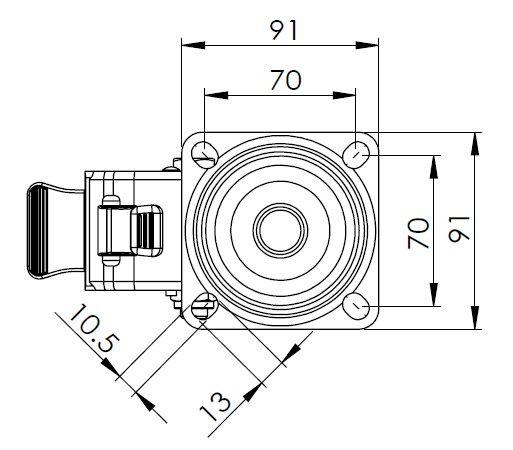

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 91 x 91mm　
　　Bolt Hole Spacing 70 x 70mm　
　　Plate Hole 13 x 10.5mm　
　　Offset 40mm　
　　Swivel Interference 234mm　
　　Overall Height 134mm　
　　Swivel Radius 117mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 135kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 202.5kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.50kgs　
　　Standard ISO22883
　　
　　
