1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　Nylon wheel (white) Wheel diameter × wheel width 100 x 32mm
　　EAN
　　TW-4111604004012 　　　
　　　　　 　　　
　　
　　

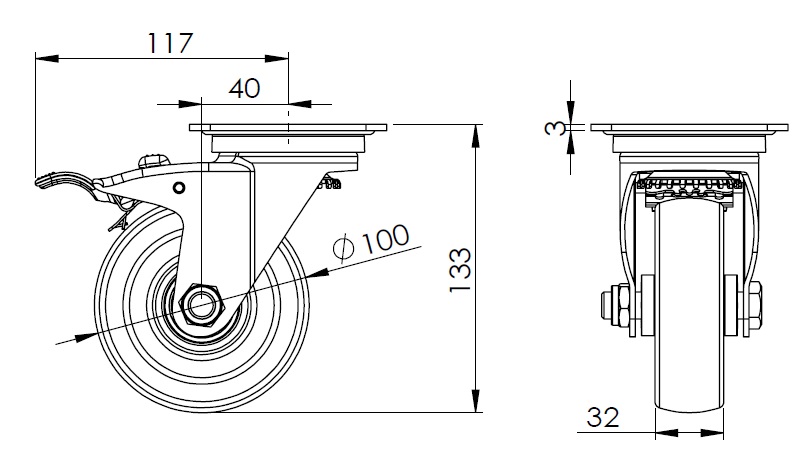

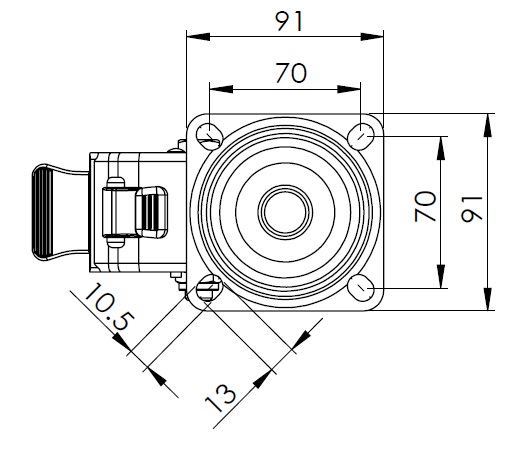

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 91 x 91mm　
　　Bolt Hole Spacing 70 x 70mm　
　　Plate Hole 13 x 10.5mm　
　　Offset 40mm　
　　Swivel Interference 234mm　
　　Overall Height 134mm　
　　Swivel Radius 117mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 120kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 180kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.95kgs　
　　Standard ISO22883
　　
　　
