◄ Back     ⍗ Product Data Sheet (Metric)     ⍗ Product Data Sheet (Imperial)     ⍗ 3D image files


1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　W Resolute Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4111604004033 　　　
　　　　　 　　　
　　
　　

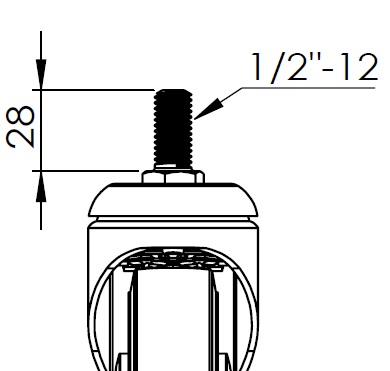

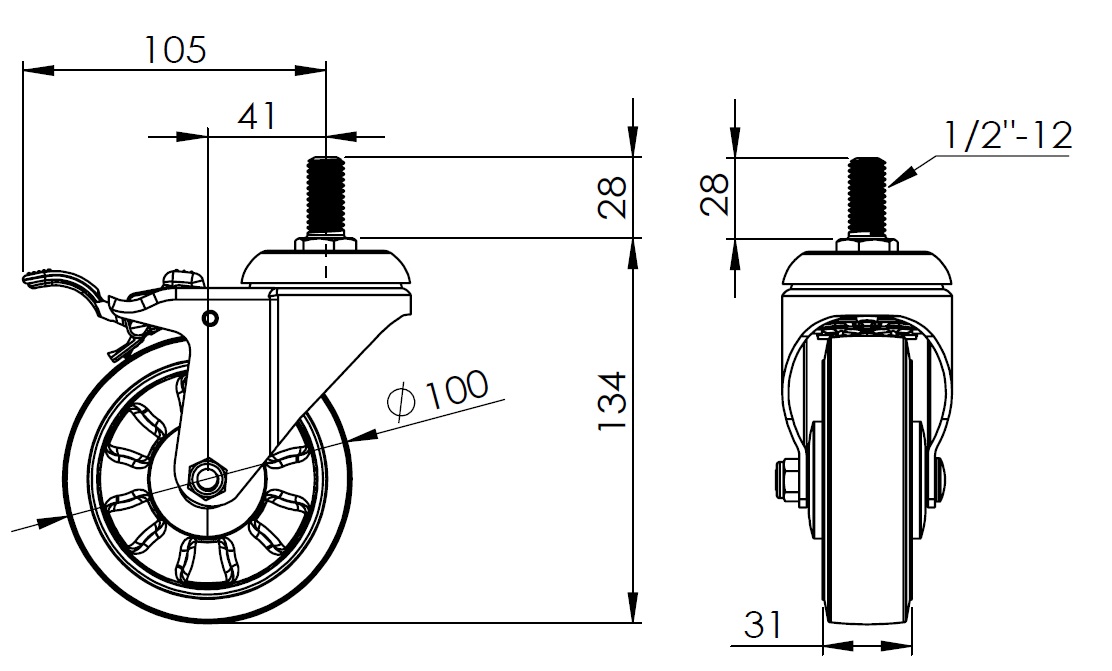

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem 1/2＂-12
　　Threaded Length 28mm
　　Offset 41mm　
　　Swivel Interference 210mm　
　　Overall Height 134mm　
　　Swivel Radius 105mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 135kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 202.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.75kgs　
　　Standard ISO22883
　　
　　
