1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　W Nylon wheel (white) Wheel diameter × wheel width 100 x 31mm
　　EAN
　　TW-4111604004049 　　　
　　　　　 　　　
　　
　　

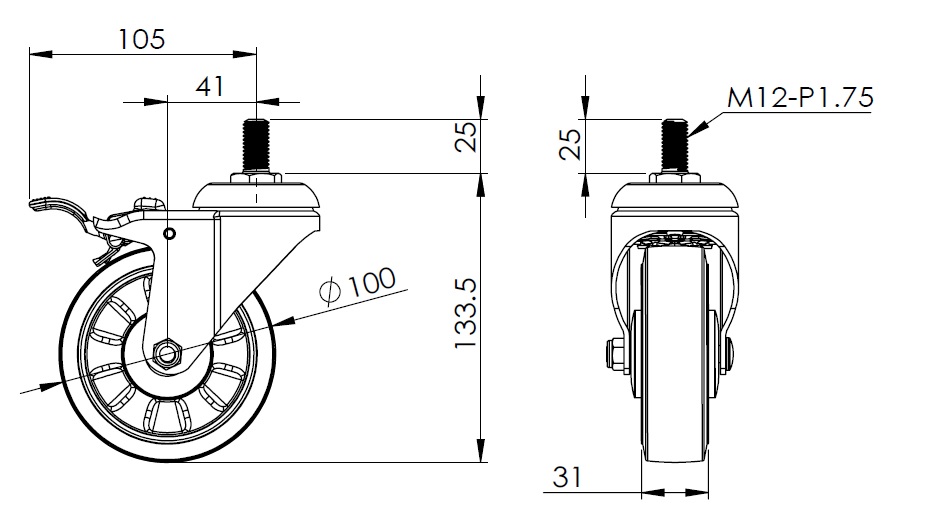

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

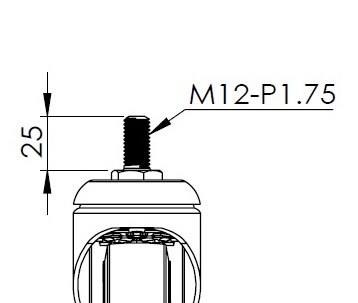

　　Threaded Stem M12-P1.75
　　Threaded Length 25mm
　　Offset 41mm　
　　Swivel Interference 210mm　
　　Overall Height 133.5mm　
　　Swivel Radius 105mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 135kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 202.5kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.75kgs　
　　Standard ISO22883
　　
　　
