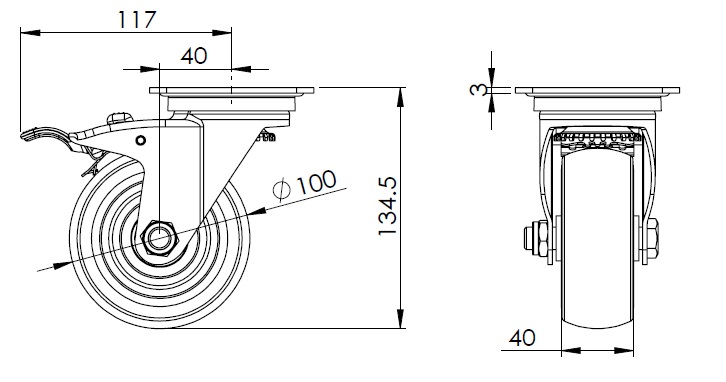

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
40mm
Wheel Bearing
Wheels With Ball Bearings

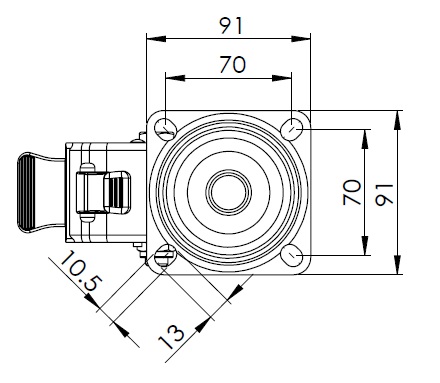

Plate Size
91 x 91mm
Bolt Hole Spacing
70 x 70mm
Plate Hole
13 x 10.5mm
Offset
40mm
Swivel Interference
234mm
Overall Height
134.5mm
Swivel Radius
117mm
Hardness Of Tread
77±5° Shore A
Load Capacity (Dynamic)
135kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
202.5kgs
Temperature
-20°C to +70°C

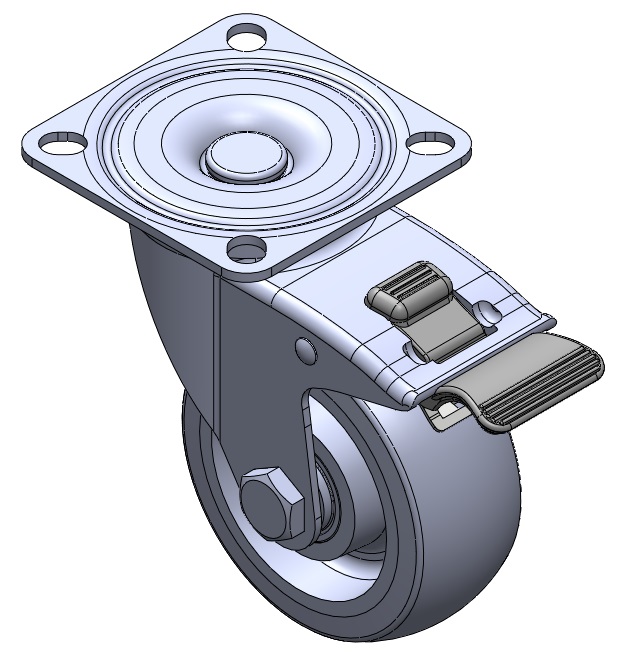

Fork Type
Swivel Caster With Total Brake
Stainless
Y
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.95kgs
Standard
ISO22883
