    Product Data Sheet
1117 Blue Fork Pneumatic Caster Series
　　Pneumatic (Black) Wheel Diameter × Wheel Width 216 x 65mm
　　
　　　　　 　　　
　　YJ-11170800012011 　　　
Swivel Caster with Riveted Fork and Stamping Fork. Blue-painted finish, Top Plate (5T) Mounting Type system. Cast Iron Wheel Center, High-Quality Resilient Rubber tread; Wheel Tread provides Compression Resistance and Abrasion Resistance. Black, Bearing—Ball Bearing.
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: iron core

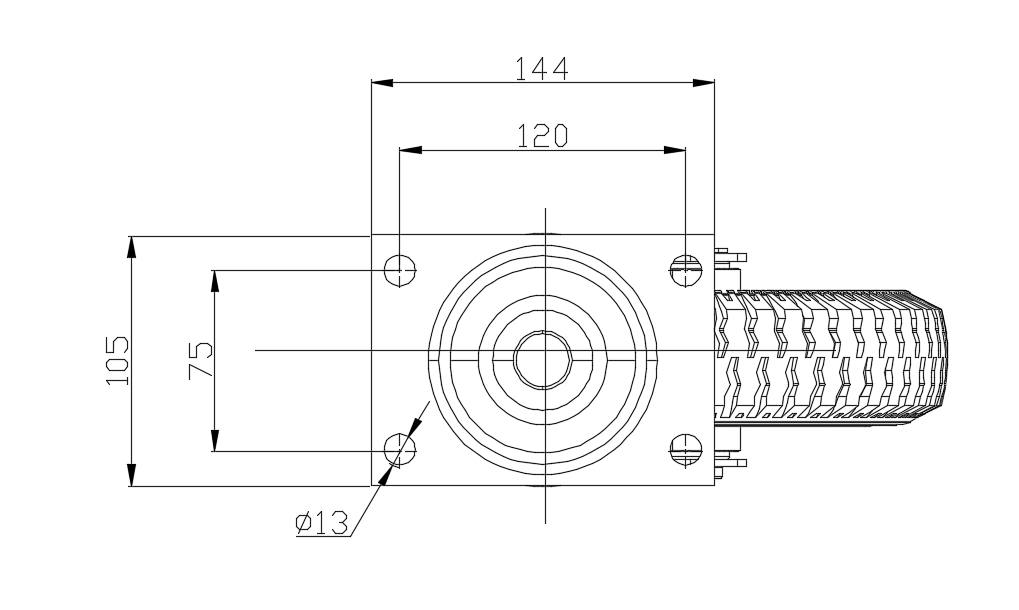

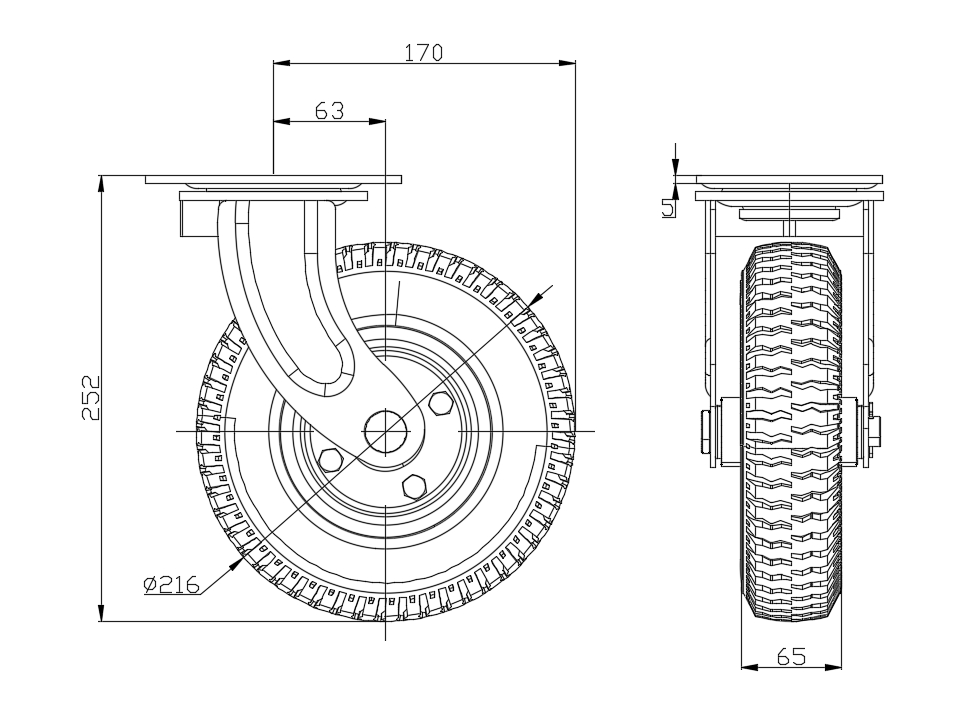

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 216mm　

　　Wheel Width 65mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 144 x 105mm　
　　Bolt Hole Spacing 120 x 75mm　
　　Plate Hole 13mm　
　　Offset 63mm　
　　Swivel Interference 340mm　
　　Overall Height 252mm　
　　Swivel Radius 170mm　
　　Hardness Of Tread 75±5° Shore A　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.02kgs　
　　Standard ISO22883
　　
　　
