    Product Information Sheet

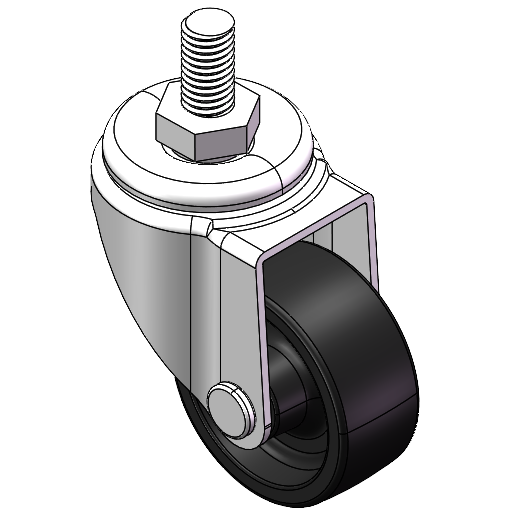

1121 Double Raceway, Light Duty Caster Series
　　Bánh MRC (màu trong suốt) Kích thước: Đường kính × Độ rộng 38×16.5mm
　　EAN
　　　　　 　　　
　　YJ-11210150075063 　　　
Portable Casters, Threaded Stem Stamping Fork—M8-P1.25
Zine-Plated surface, Mounting Type - Threaded Stem device
Reinforced Polypropylene and Wheel Tread
Black, Bearing—Ball Bearings.
　　Wheel surface: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

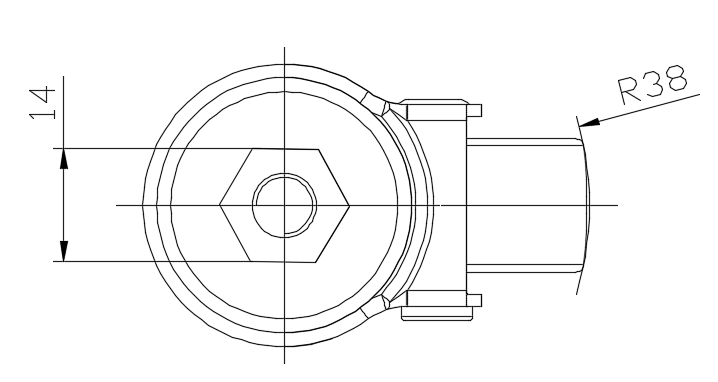

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 38mm　

　　Wheel Width 16.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M8-P1.25
　　Threaded Length 15mm
　　Offset 18.5mm　
　　Swivel Interference 76mm　
　　Overall Height 59mm　
　　Swivel Radius 38mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 20kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 30kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.10kgs　
　　Standard ISO22883
　　
　　
