    Product Information Sheet
1121 Double Raceway, Light Duty Caster Series
　　PP (black) Wheel diameter × Wheel width 38×16.5 mm
　　EAN
　　　　　 　　　
　　YJ-11210150291023 　　　
Rigid Casters, Stamping Fabricated Caster Fork—40x20mm Bolt Hole Spacing Zine-Plated surface, Mounting Type - Top Plate device Polypropylene Wheel Center and Wheel Tread Transparent, Bearing—Ball Bearings.
　　Wheel surface: PP polypropylene
　　Wheel Center: PP polypropylene

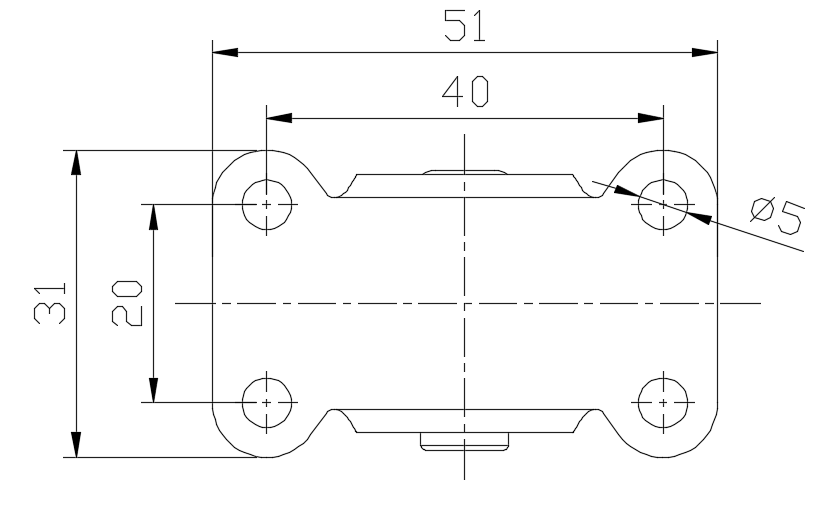

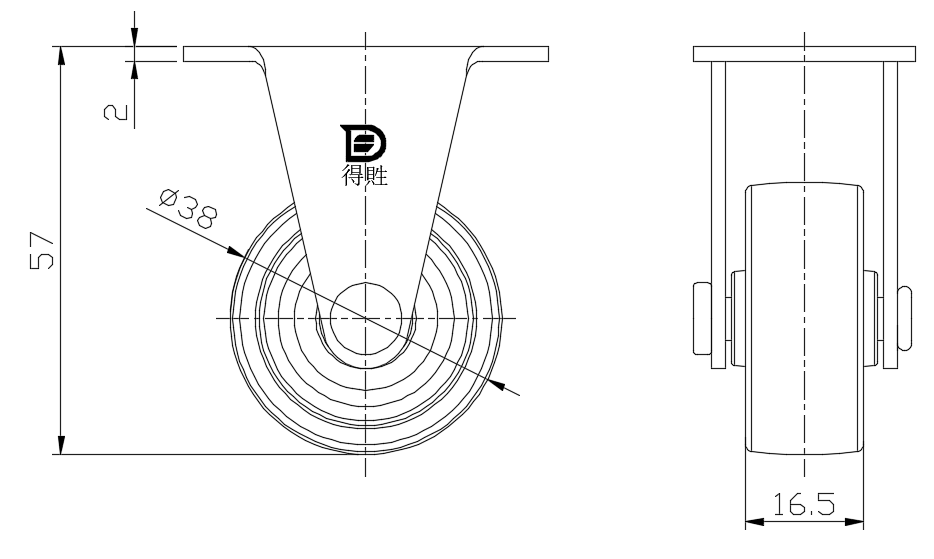

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 38mm　

　　Wheel Width 16.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 51 x 31mm　
　　Bolt Hole Spacing 40x20mm　
　　Plate Hole 5mm　
　　Overall Height 57mm　
　　Hardness Of Tread 65±5° Shore D　
　　Load Capacity (Dynamic) 20kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 30kgs　
　　Temperature -10°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.06kgs　
　　Standard ISO22883
　　
　　
