    Product Data Sheet
1129 Medical Caster Series
　　PPR (red) Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4112903001004 　　　
　　　　　 　　　

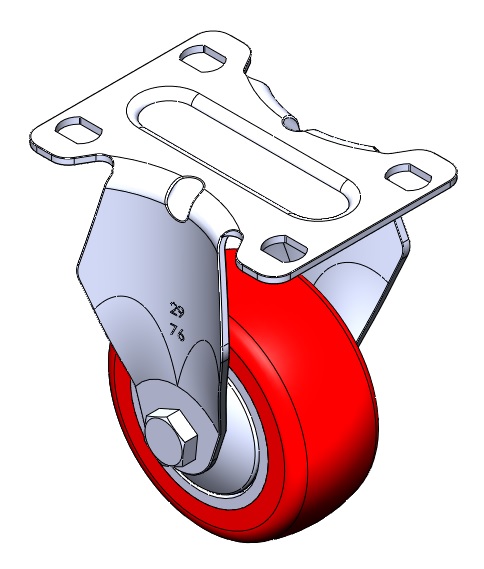

Rigid Caster with Stamping Fabricated Caster Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
High-Quality Impact-Resistant Polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread.
Red color. Bearings: Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

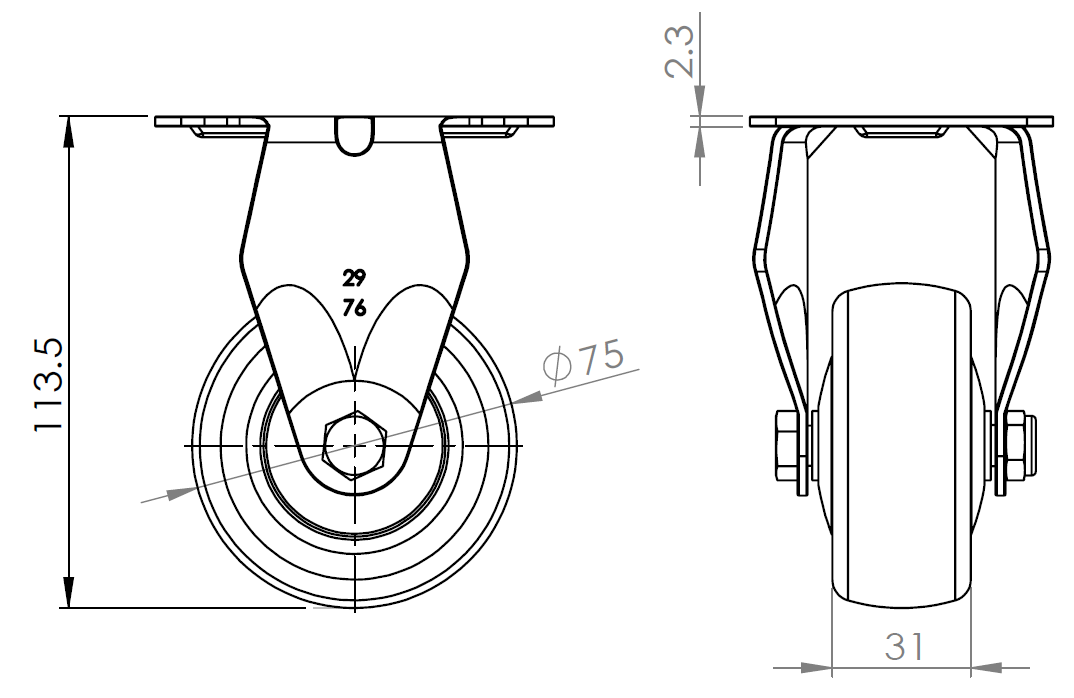

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

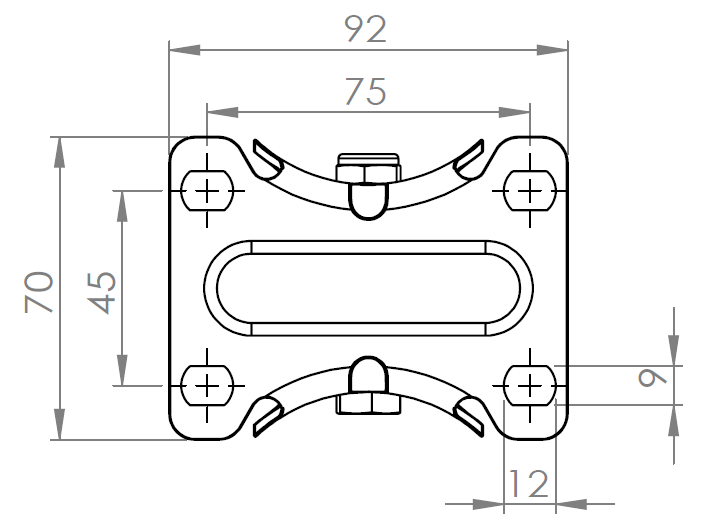

　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Overall Height 113.5mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.40kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1129 Medical Caster Series
PPR (red) Wheel Diameter × Wheel Width 75 x 31mm
TW-4112903004007
75 mm 70 Kgs 114 mm

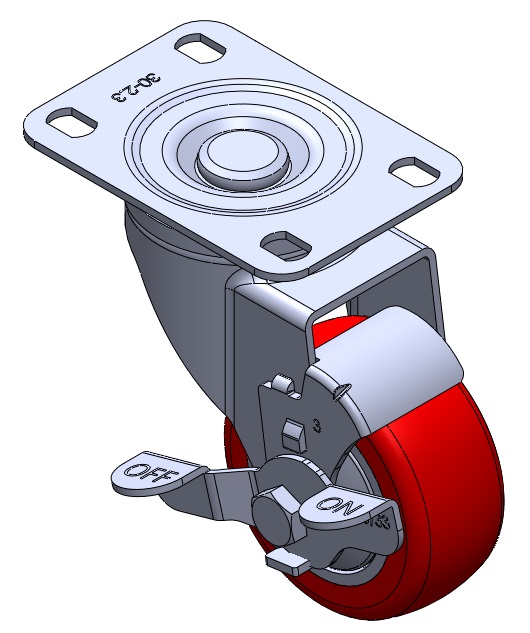

Casters with Side Brakes and With locking system. Base plate Riveted and Stamping with 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. High-Quality Impact-Resistant Polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread. Red color. Bearings: Ball Bearings.
1129 Medical Caster Series
PPR (red) Wheel Diameter × Wheel Width 75 x 31mm
TW-4112903004008
75 mm 70 Kgs 114 mm

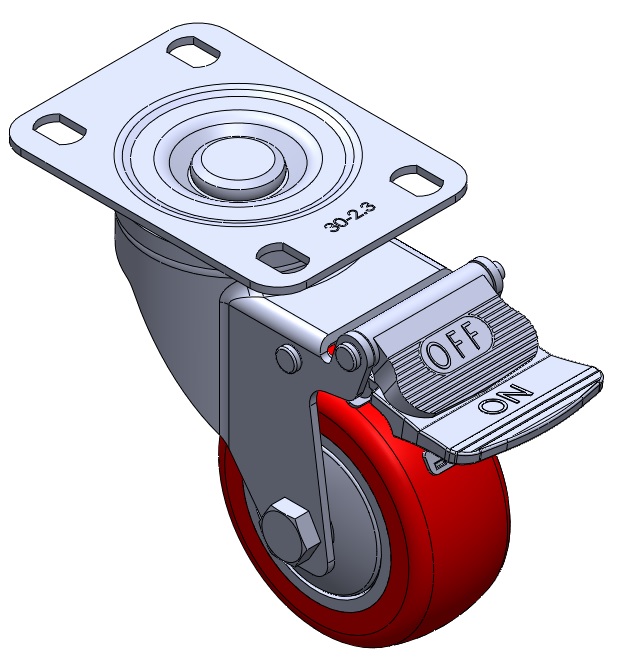

Casters with Total Brakes and a With locking system. Premium Fork with Riveted Fork. Hole Zine-Plated, Mounting Type - Top Plate. High-Quality Impact-Resistant Polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread. Red color. Bearings: Ball Bearings.
1129 Medical Caster Series
PPR (red) Wheel Diameter × Wheel Width 75 x 31mm
TW-4112903004010
75 mm 70 Kgs 114 mm

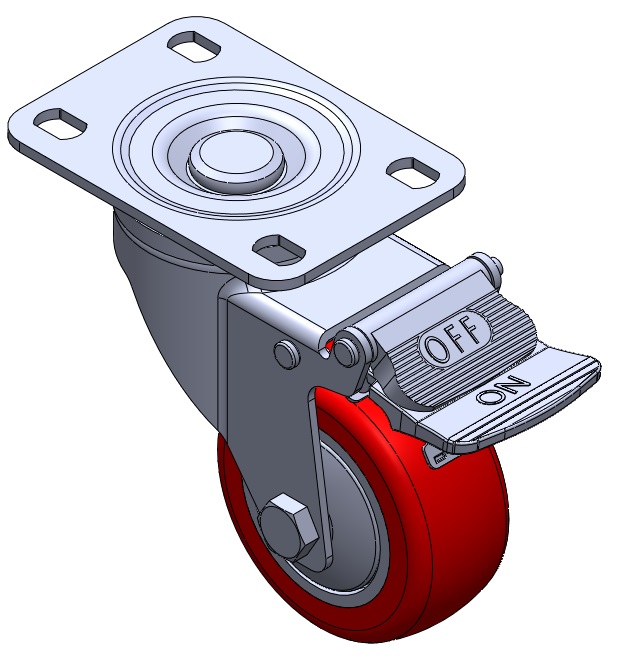

Casters with a Total Brake and With locking system. Premium Fork with Riveted Fork. Zine-Plated, Top Plate (3T) Mounting Type mechanism. High-Quality Impact-Resistant Polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread. Red color. Bearings: Ball Bearings.
1129 Medical Caster Series
PPR (red) Wheel Diameter × Wheel Width 75 x 31mm
TW-4112903002004
75 mm 70 Kgs 114 mm

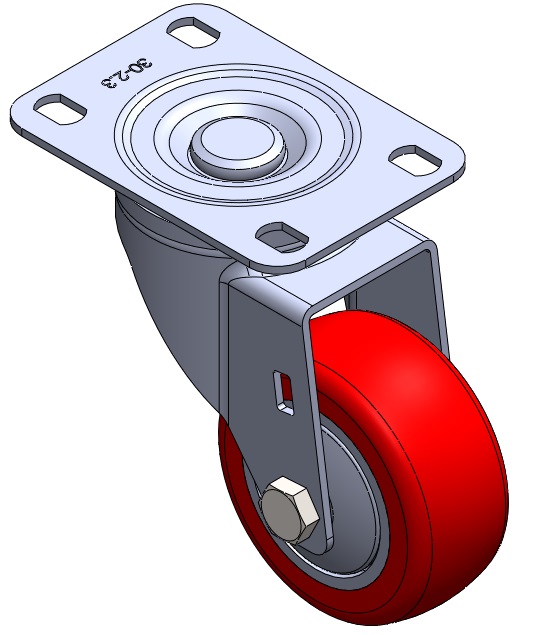

Swivel Caster with Riveted Fork and Stamping Fork—75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
Zine-Plated, Mounting Type - Top Plate
High-Quality Impact-Resistant Polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Red, Bearing—Ball Bearings.
1129 Medical Caster Series
PPR (red) Wheel Diameter × Wheel Width 75 x 31mm
TW-4112903002005
75 mm 70 Kgs 114 mm

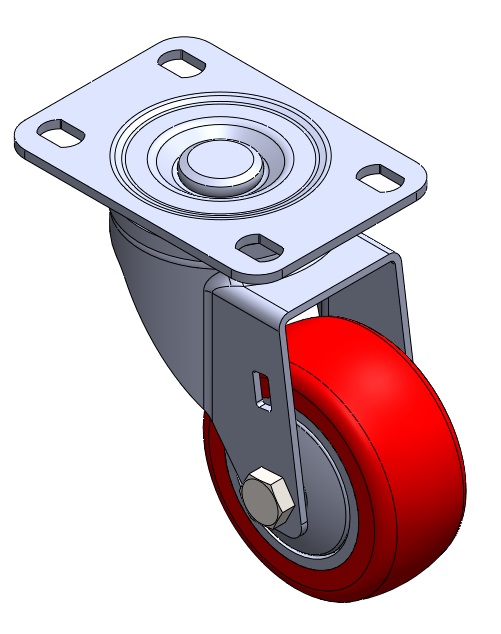

Swivel Caster with Riveted Fork and Stamping Fork—75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
Zine-Plated, Top Plate (3T) Mounting Type system
High-Quality Impact-Resistant Polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Red, Bearing—Ball Bearings.
