    Product Data Sheet
1129 Medical Caster Series
　　PPR (red) Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4112903004007 　　　
　　　　　 　　　
Casters with Side Brakes and With locking system. Base plate Riveted and Stamping with 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. High-Quality Impact-Resistant Polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread. Red color. Bearings: Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

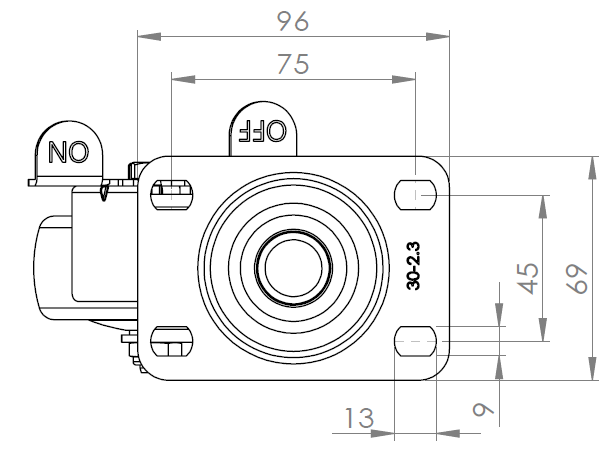

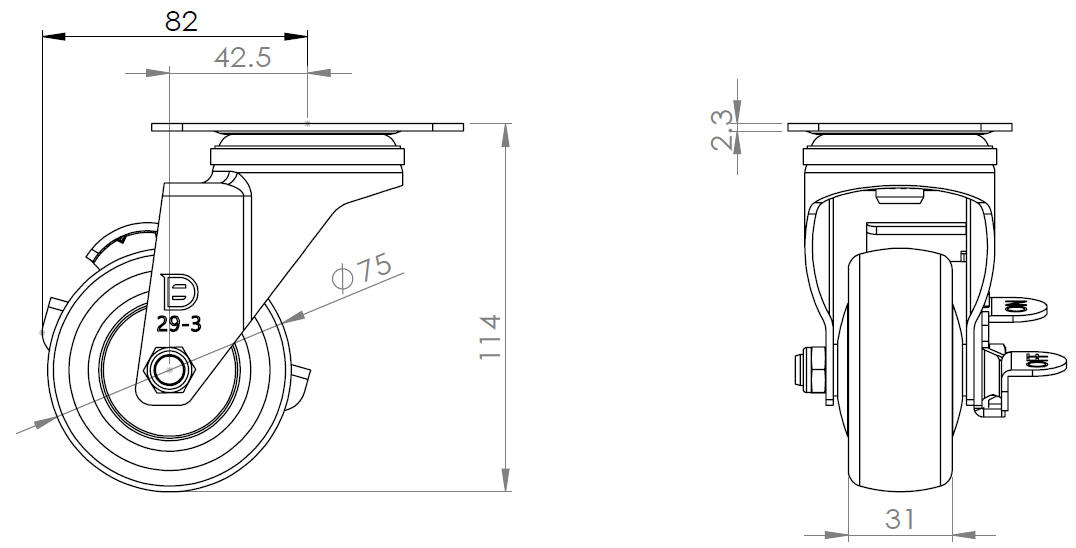

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 96 x 69mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 13 x 9mm　
　　Offset 42.5mm　
　　Swivel Interference 164mm　
　　Overall Height 114mm　
　　Swivel Radius 82mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.68kgs　
　　Standard ISO22883
　　
　　
