    Product data sheet
1129 Medical Caster Series
　　W Resolute Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4112903002012 　　　
　　　　　 　　　
Swivel Casters, Riveted Fork and Stamping Fork Surface plating, Top Plate Mounting Type device Reinforced impact-resistant High-quality Impact Resistance Polypropylene Wheel Center, thermoplastic elastomer (TPR) Wheel Tread Dark grey, Bearing - precision ball.
　　Wheel Tread: thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

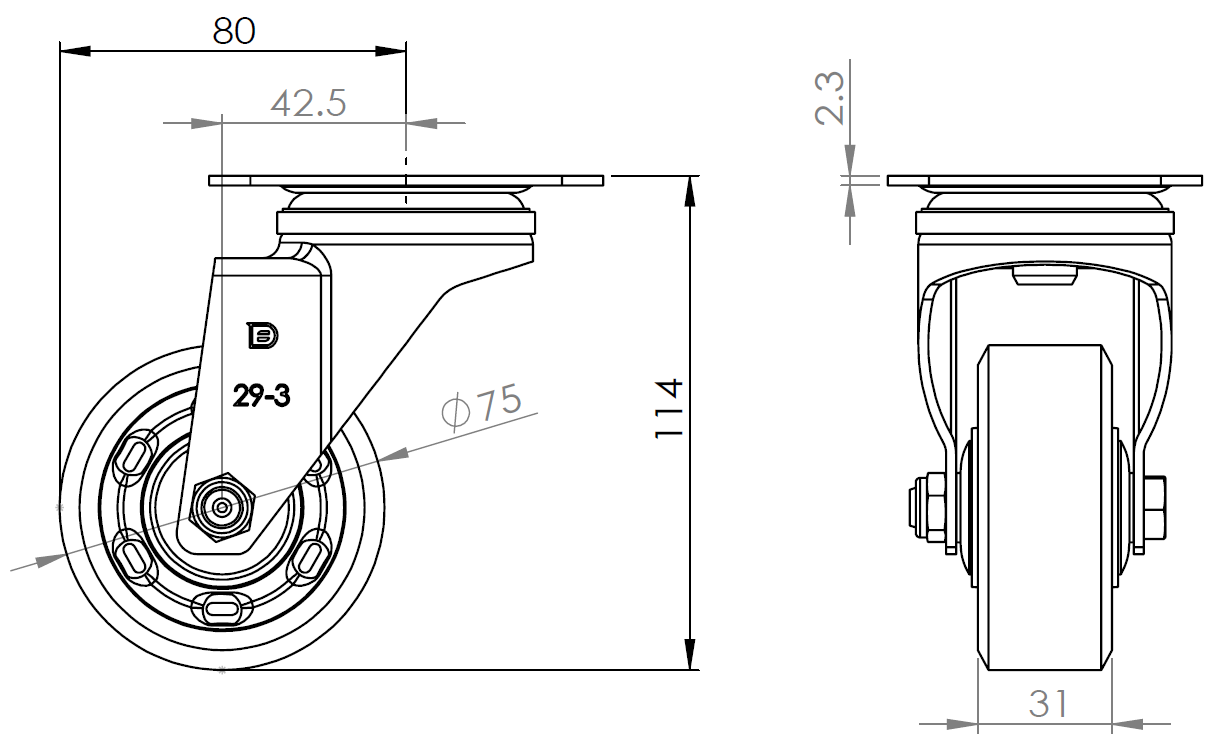

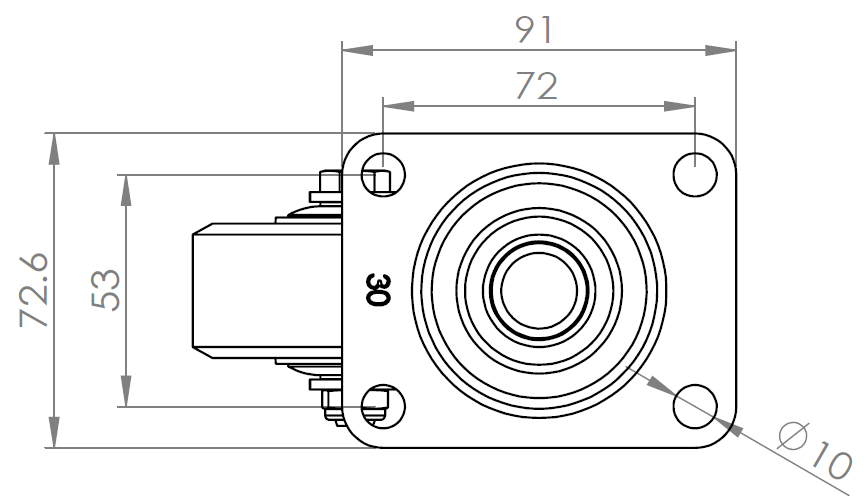

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　
　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 91 x 72mm　
　　Bolt Hole Spacing 72 x 53mm　
　　Plate Hole 10mm　
　　Offset 42.5mm　
　　Swivel Interference 160mm　
　　Overall Height 114mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.6kgs　
　　Standard ISO22883
　　
　　
