    Product Data Sheet
1129 Medical Caster Series
　　PPR (Black) Wheel Diameter × Wheel Width 75 x 25mm
　　EAN
　　　　　 　　　
　　YJ-11290300267083 　　　

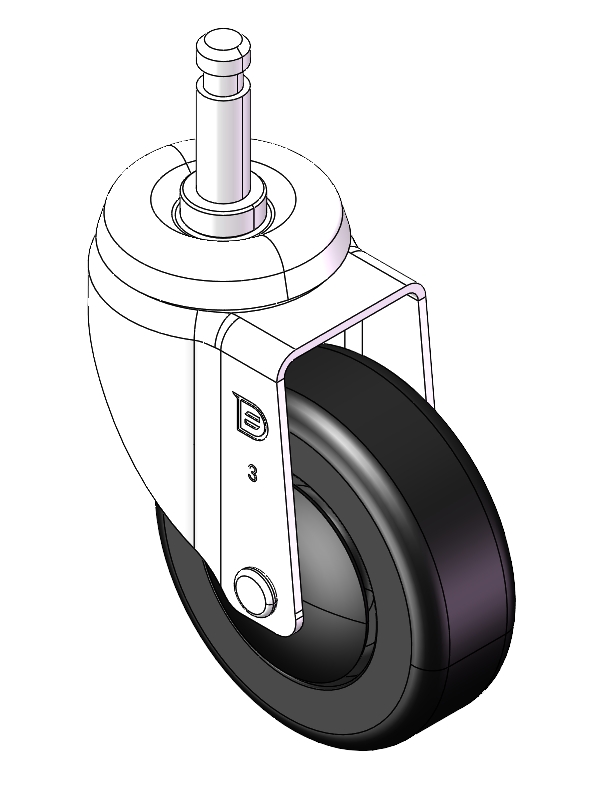

Swivel Caster, Riveted Stamping Fork - Ø10x30.3L Extended control lever surface, plug-in installation device High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Black, wheel - Plain Bearing type.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

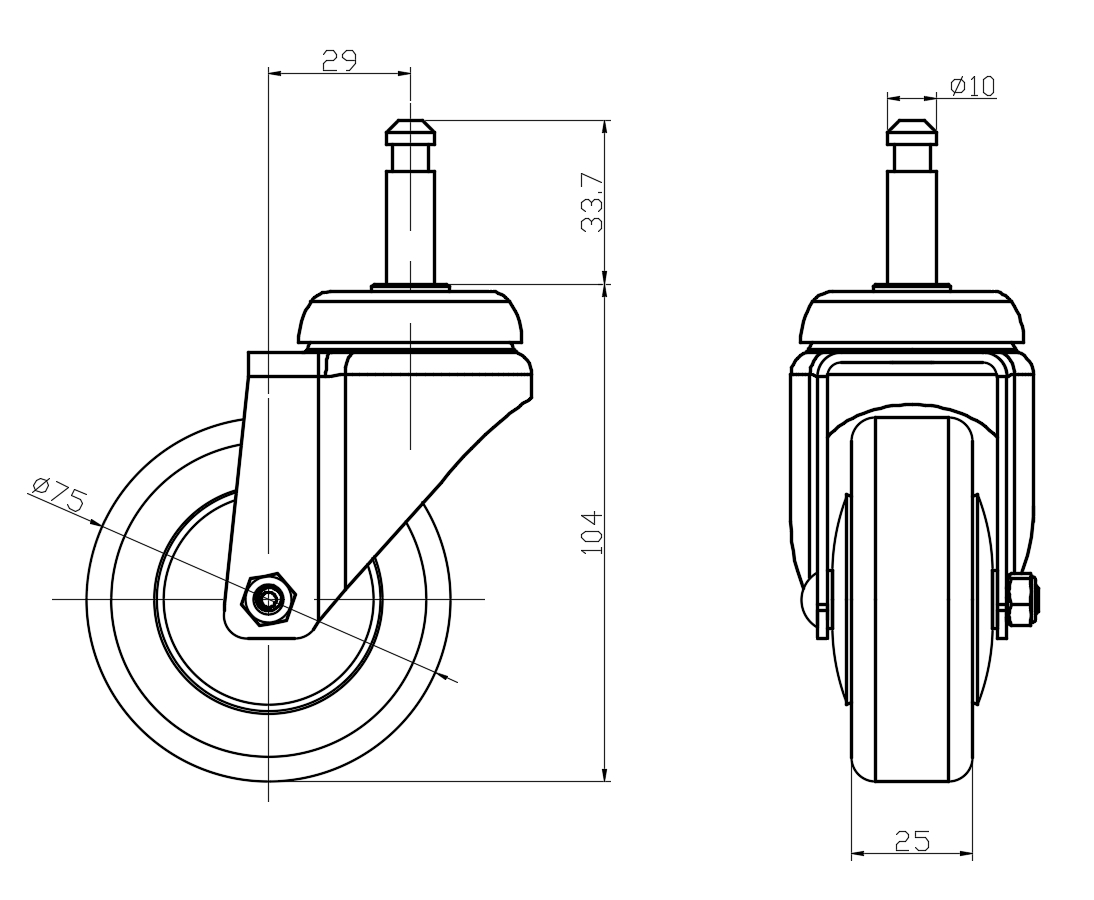

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 25mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Stem Diameter 10mm　
　　Stem Length 33.7mm　
　　Offset 29mm　
　　Swivel Interference 134mm　
　　Overall Height 104mm　

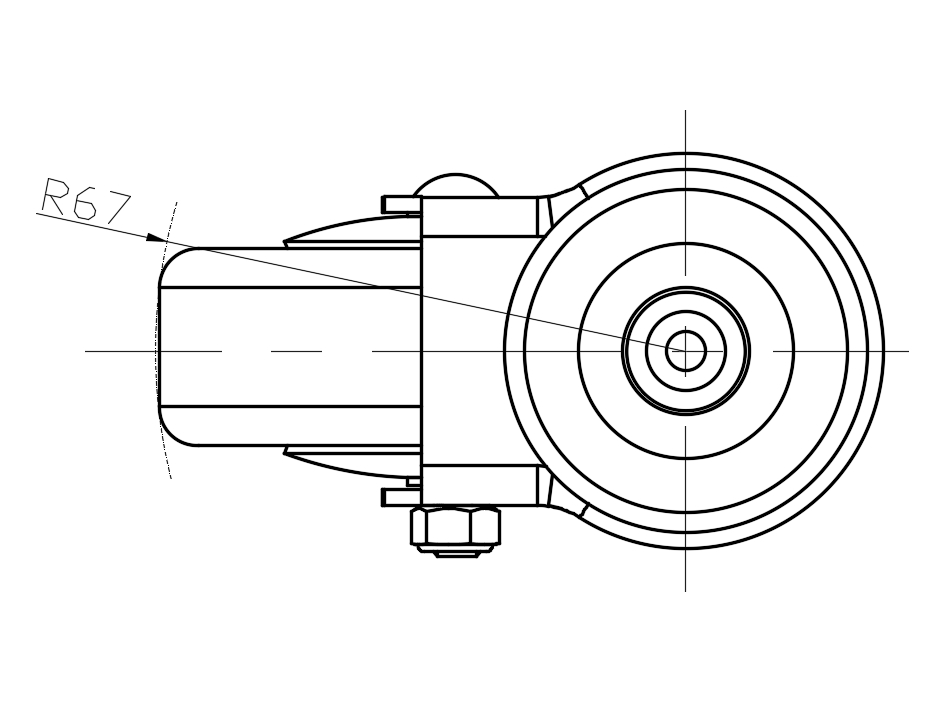

　　Swivel Radius 67mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.39kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1129 Medical Caster Series
PPR (Black) Wheel Diameter × Wheel Width 75 x 25mm
YJ-11290300268083
75 mm 70 Kgs 104 mm

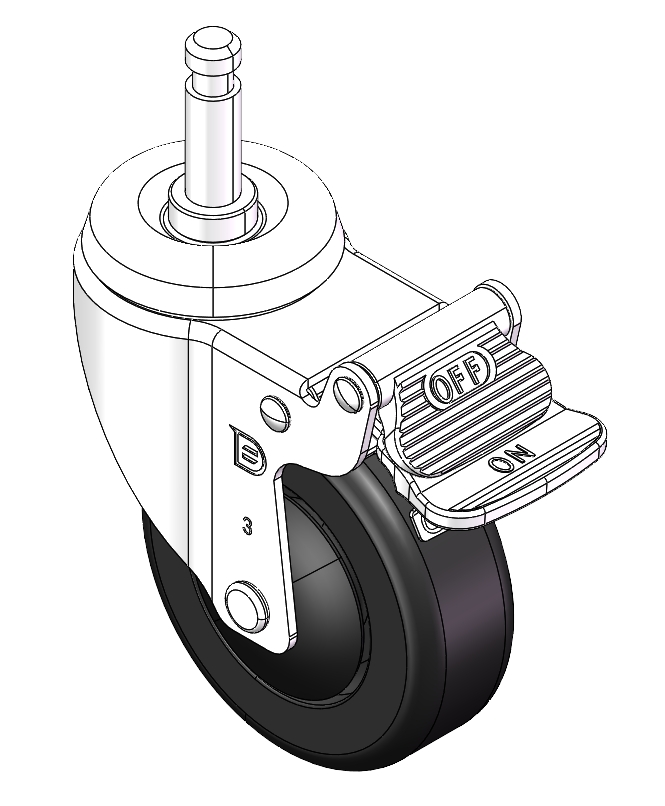

Castors with Total Brake Locking system. Stamped and Riveted Fork - Ø10x30.3L Extended control lever surface, stud Mounting Type High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) Wheel Tread Black, wheel - Plain Bearing.
