    Product Data Sheet

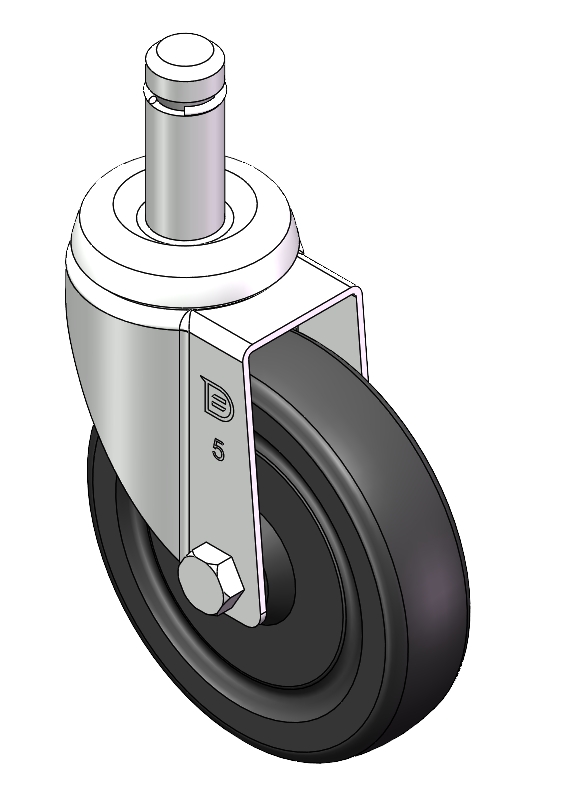

1129 Medical Caster Series
　　Rubber Wheel Diameter × Wheel Width 125 x 30.5mm
　　EAN
　　　　　 　　　
　　YJ-11290500067013 　　　
Swivel Caster, Riveted Stamping Fork—Ø21.6 x 56L
Zine-Plated, Mounting Type - Cylindrical Stem
Reinforced Polypropylene core, High-Quality Resilient Rubber Wheel Tread
Bearing –Plain Bearing
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

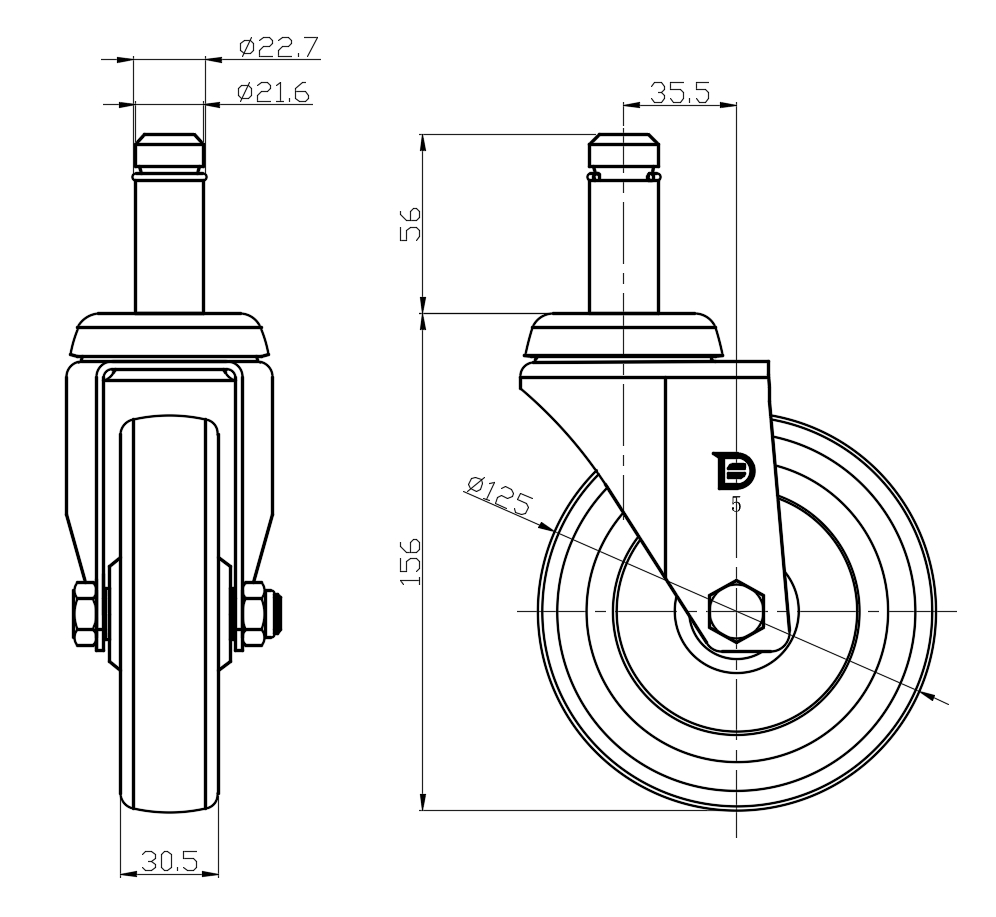

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 30.5mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Stem Diameter 21.6mm　
　　Stem Length 56mm　
　　Offset 35.5mm　
　　Swivel Interference 196mm　
　　Overall Height 156mm　

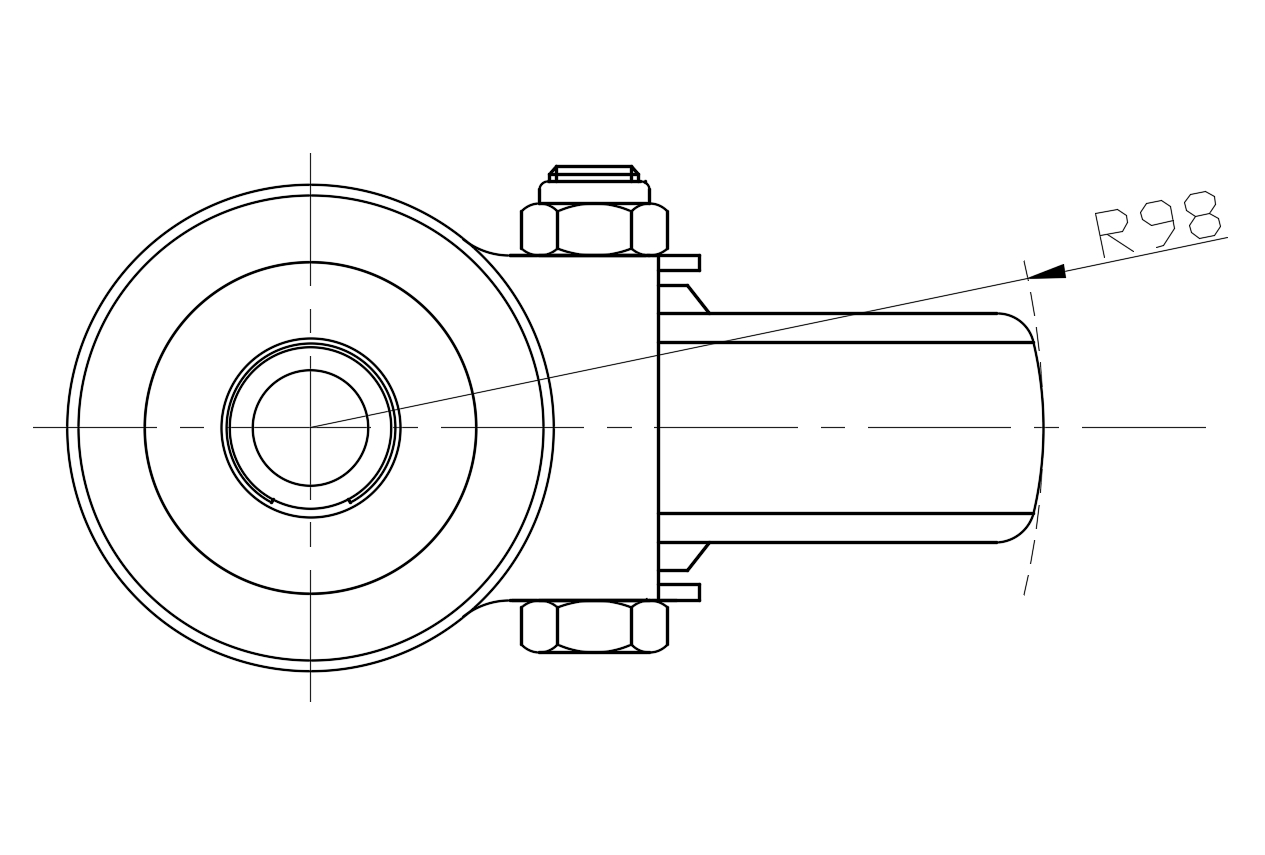

　　Swivel Radius 98mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.18kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

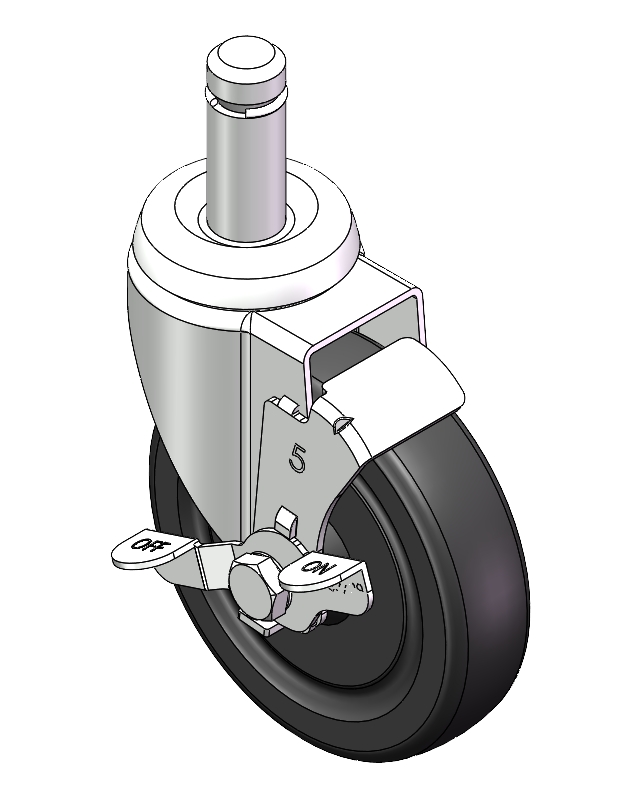

1129 Medical Caster Series
Rubber Wheel Diameter × Wheel Width 125 x 30.5mm
YJ-11290500068023
125 mm 90 Kgs 156 mm
Casters with Side Brakes and With locking system. Riveted Stamping Fork—Ø21.6x56L
Zine-Plated, Mounting Type - Cylindrical Stem
Reinforced Polypropylene Wheel Center with High-Quality Resilient Rubber Wheel Tread
Wheels—Central tube

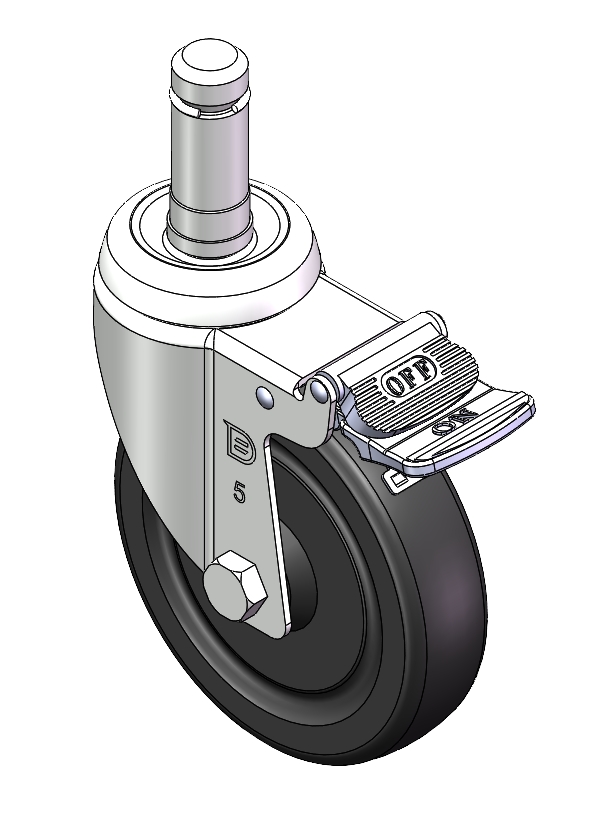

1129 Medical Caster Series
