    Product Data Sheet
1129 Medical Caster Series
　　Rubber Wheel Diameter × Wheel Width 125 x 30.5mm
　　EAN
　　　　　 　　　
　　YJ-11290500068423 　　　
Casters with Total Brakes and With locking system. Riveted Stamping Fork—Ø21.6x56L
Zine-Plated, Mounting Type - Cylindrical Stem
Reinforced Polypropylene Wheel Center with High-Quality Resilient Rubber Wheel Tread
Wheels—Central tube
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

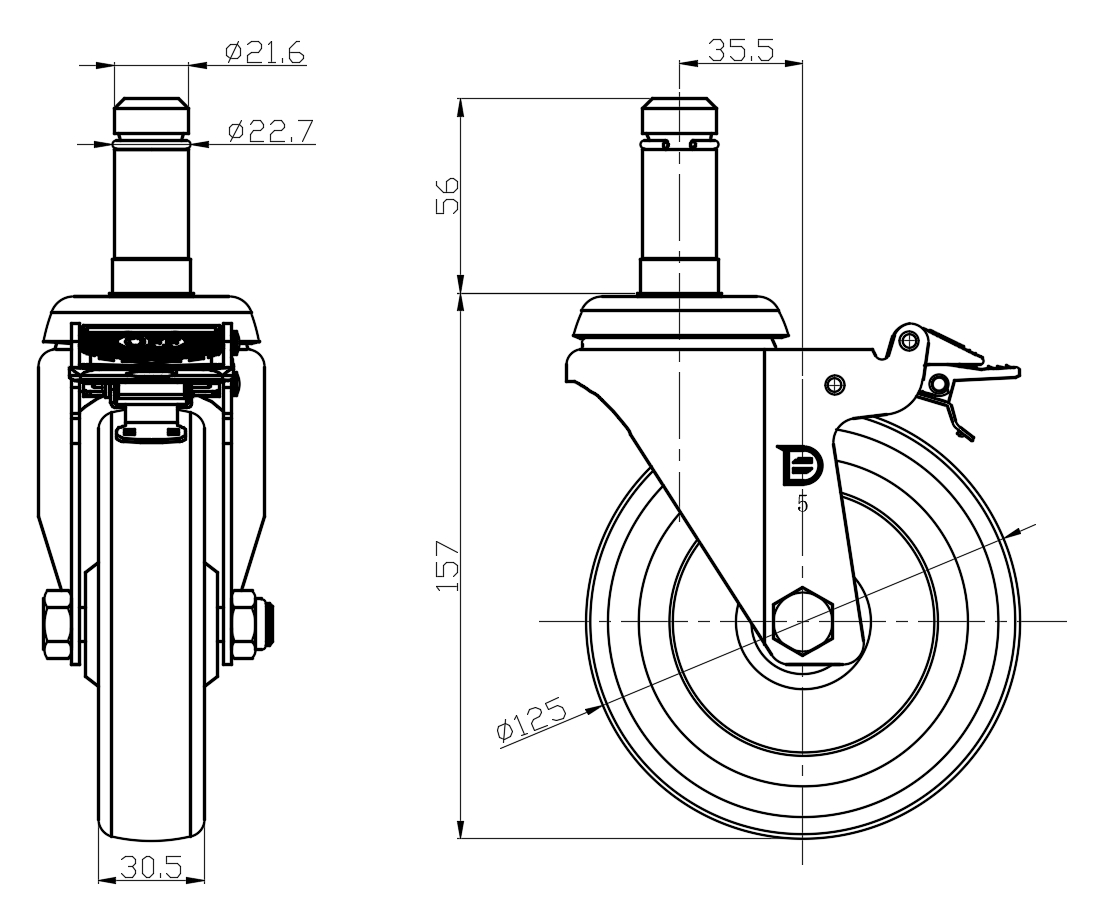

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 30.5mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Stem Diameter 21.6mm　
　　Stem Length 56mm　
　　Offset 35.5mm　
　　Swivel Interference 220mm　
　　Overall Height 157mm　

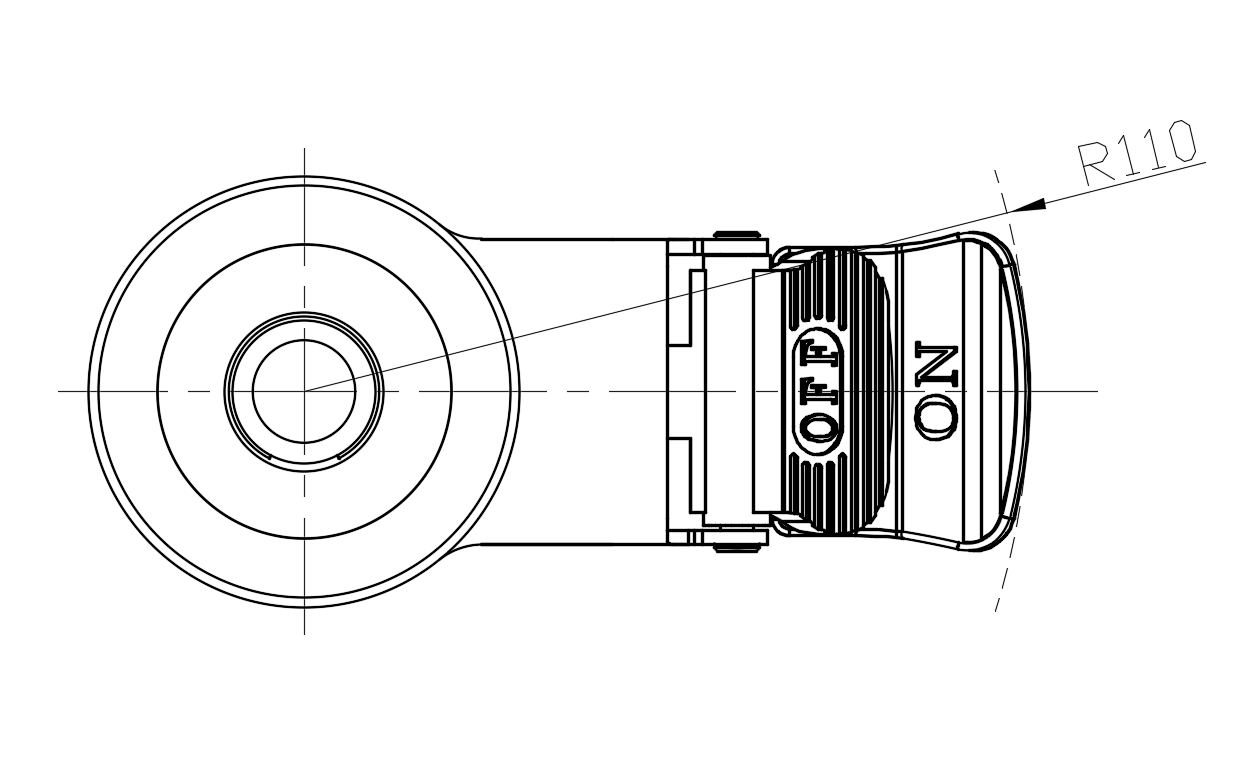

　　Swivel Radius 110mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.29kgs　
　　Standard ISO22883
　　
　　
