    Product Data Sheet
1130 Medium Duty General Purposes Caster Series
　　Cast Iron Wheel Diameter × Wheel Width 75 x 30mm
　　EAN
　　TW-4113003001026 　　　
　　　　　 　　　

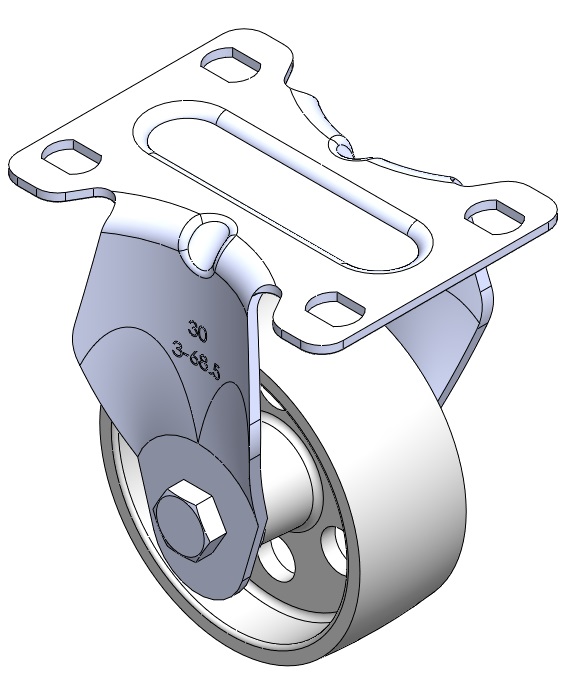

Rigid Caster with Stamping Fabricated Caster Fork and 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Cast Iron core and Wheel Tread. Black, Plain Bearing.
　　Wheel tread: cast iron
　　Wheel Center: cast iron

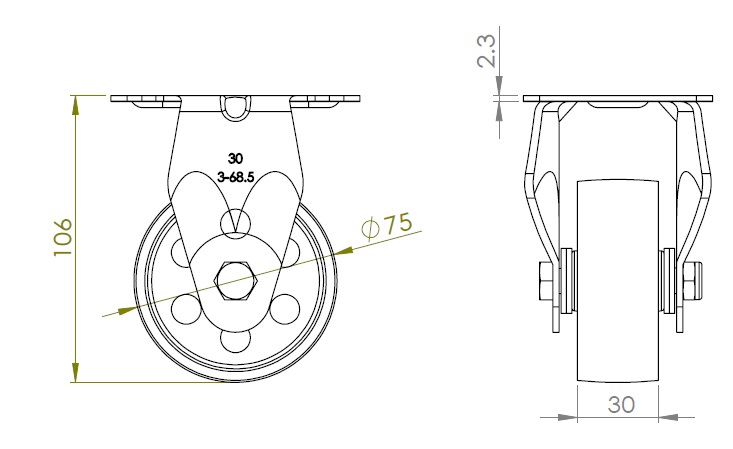

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 30mm　
　　Wheel Bearing Wheel With Plain Bearing

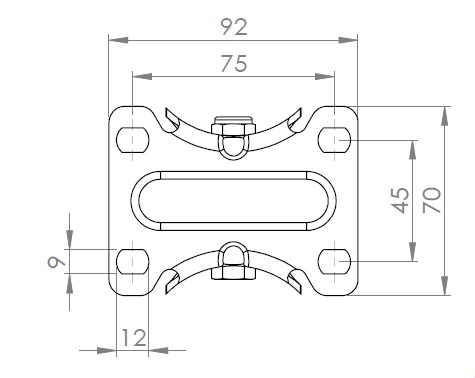

　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 75X45mm　
　　Plate Hole 12 x 9mm　
　　Overall Height 106mm　
　　Load Capacity (Dynamic) 70kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ○ ○ ○ ○

　　Floor Surface Preservation  ● ○ ○ ○ ○
　　Load Capacity (Static) 105kgs　
　　Temperature -20°C to +250°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.40kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1130 Medium Duty General Purposes Caster Series
Cast Iron Wheel Diameter × Wheel Width 75 x 30mm
TW-4113003002020
75 mm 90 Kgs 106 mm

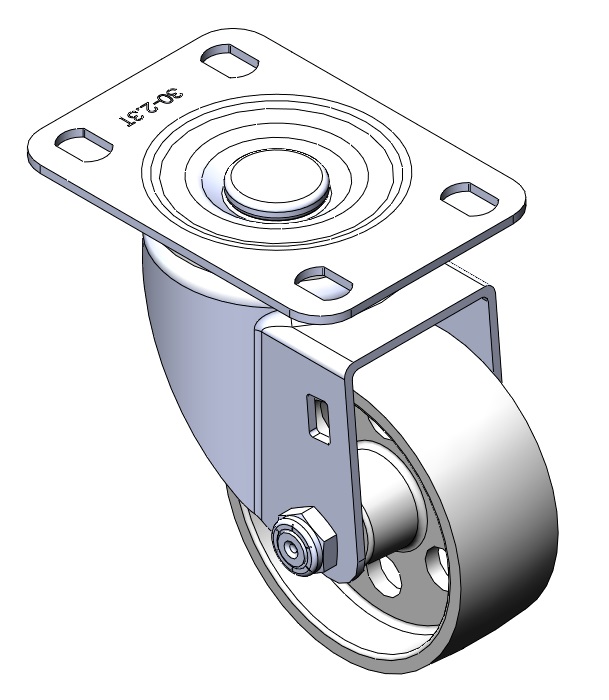

Swivel Caster with Riveted Fork and Stamping Fork - 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Zine-Plated, Mounting Type - Top Plate Cast Iron Wheel Center and Wheel Tread Black, wheel - Plain Bearing.
